MESH GRATING CHANNEL - (696.223.194.49)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 696.223.194.49
EAN no.: 5705499124477
NRF no.: 3397141
LVI no.: 3304985
Size: 200x500
MESH GRATING CHANNEL

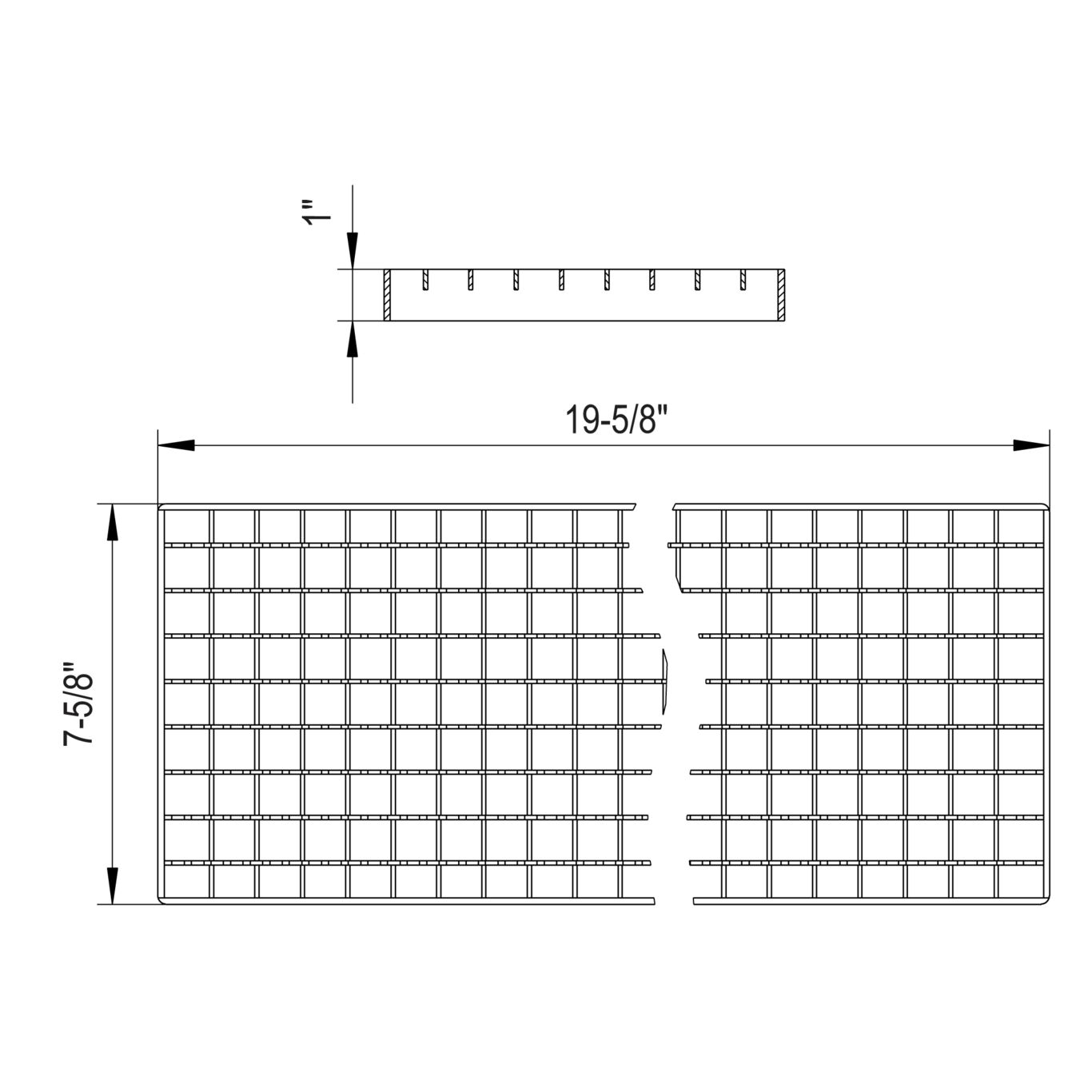

-Grating: 7-5/8 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class ASME A112.6.3 (lbs) | Medium Duty (4,332) |
| Load Class EN1253 | R50 |
| Load class EN1253(kg) | R50 (4000) |
| Load class EN1253(lbs) | R50 (8818) |
| Load Class EN1433 | A15 |
| Load class EN1433(kg) | A15 (4.000) |
| Load class EN1433(lbs) | A15 (8818) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Size of Frame (Inch) | 7-7/8 x 19-5/8 |
| Weight (kg) | 2.8 |
| Weight (lbs) | 6.17 |
-
Approval Information
For approval information, please refer to the below approval certificates.
