SHOWER GRATING CHANNEL - (697.015.200.50)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.015.200.50
EAN no.: 5705499117424
NRF no.: 3397156
LVI no.: 3304987
Size: 200x500
SHOWER GRATING CHANNEL

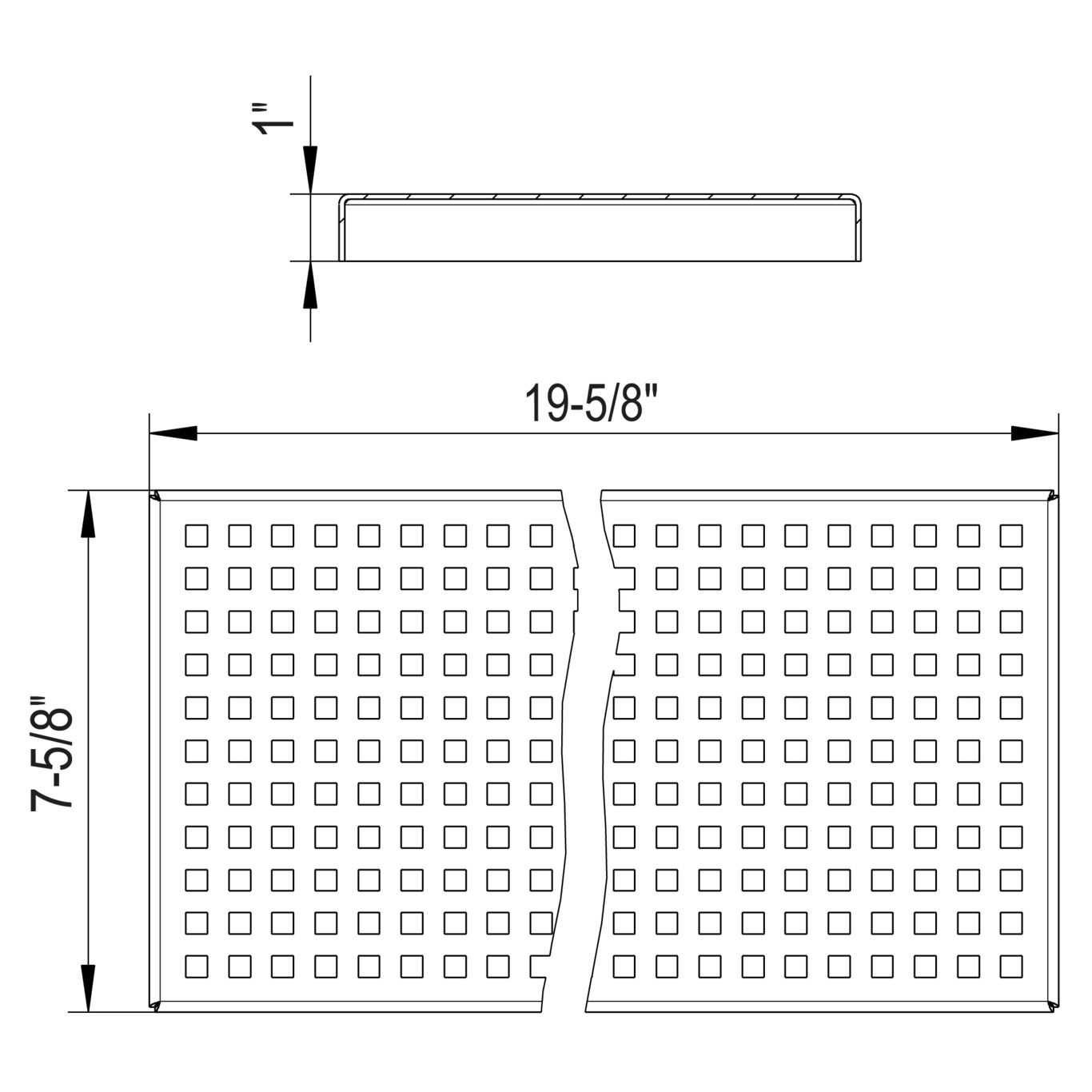

-Grating: 7-5/8 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 (400) |
| Load class EN1253(lbs) | K3 (882) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Size of Frame (Inch) | 7-7/8 x 19-5/8 |
| Weight (kg) | 1.72 |
| Weight (lbs) | 3.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
