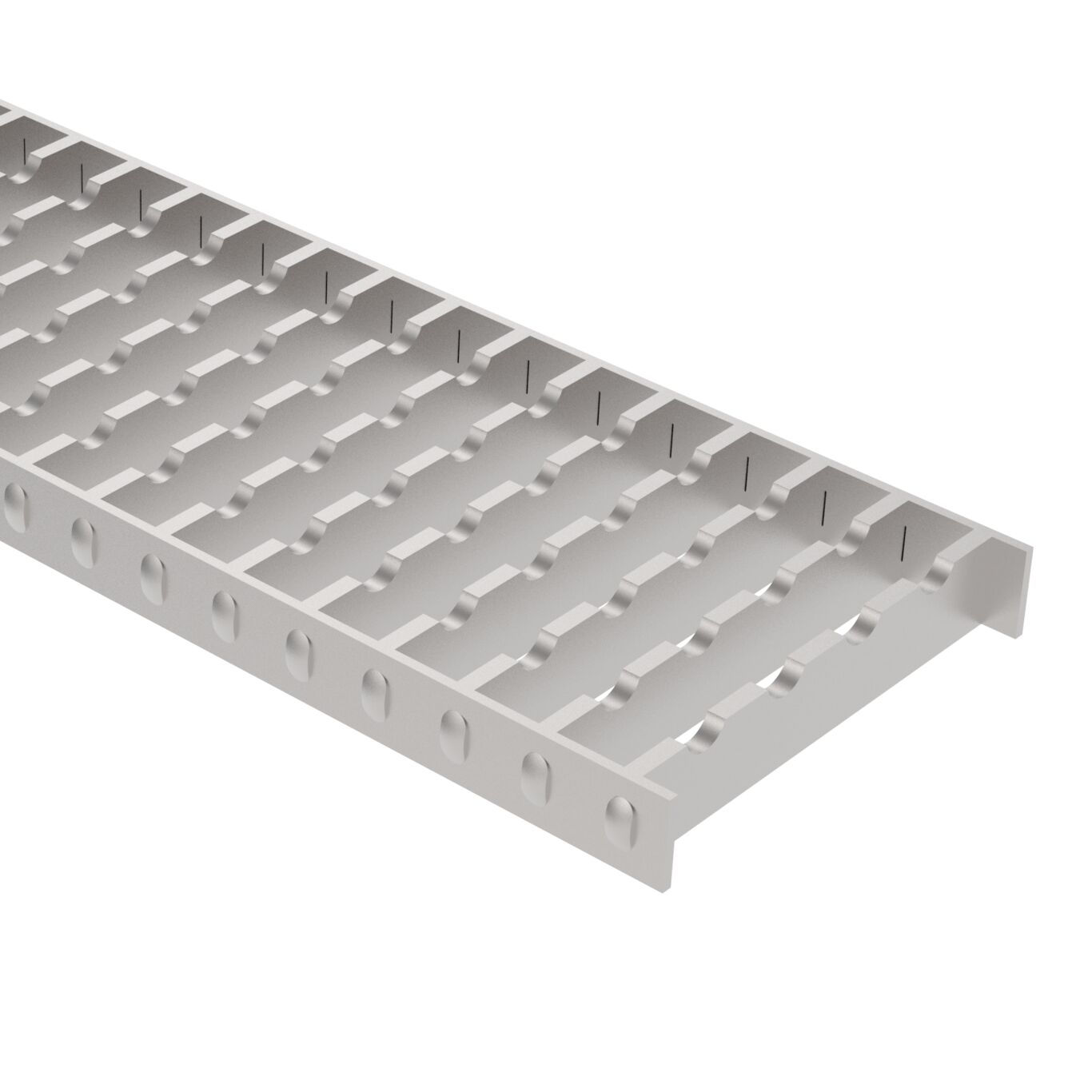

LADDER GRATING CHANNEL - (697.125.300.50)

Part Of the Series: Grating-Channel-300

Type no.: 697.125.300.50

EAN no.: 5705499103540

VVS no.: 154255030

NRF no.: 3397164

Size: 300x500


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 R50
Load class EN1253(kg) R50 (6000)
Load class EN1253(lbs) R50 (13228)
Load Class EN1433 B125
Load class EN1433(kg) B125 (10.000)
Load class EN1433(lbs) B125 (22046)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R11
Number of Screws 0
Shape Rectangular

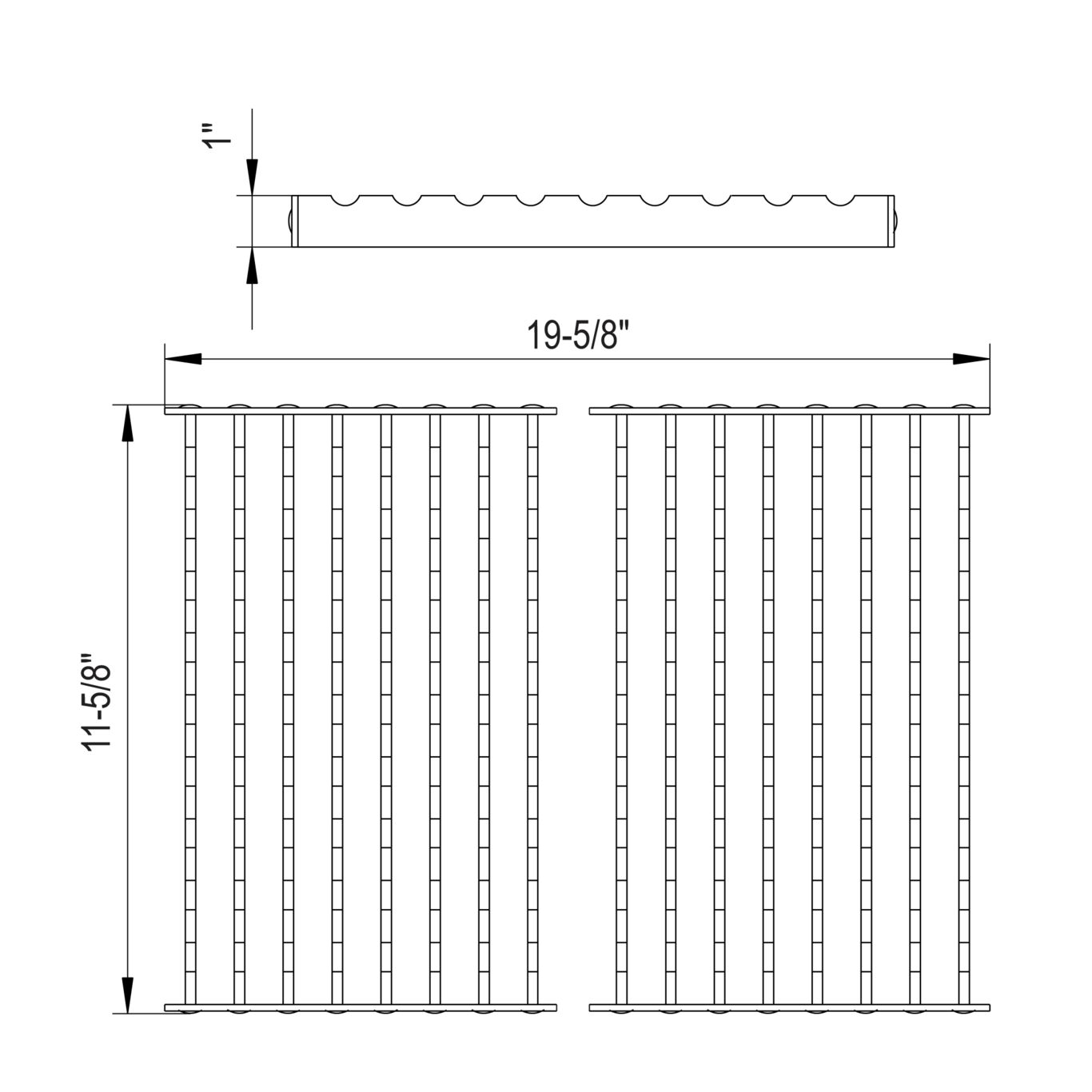

Size (mm) 300x500
Size of Frame (Inch) 11-3/4 x 19-5/8
Weight (kg) 6.1
Weight (lbs) 13.45
