SLOT GRATING CHANNEL - (697.200.300.99)
×
![]()
Part Of the Series: Grating-Channel-300
Type no.: 697.200.300.99
EAN no.: 5705499131604
NRF no.: 3397176
Size: 300x1000

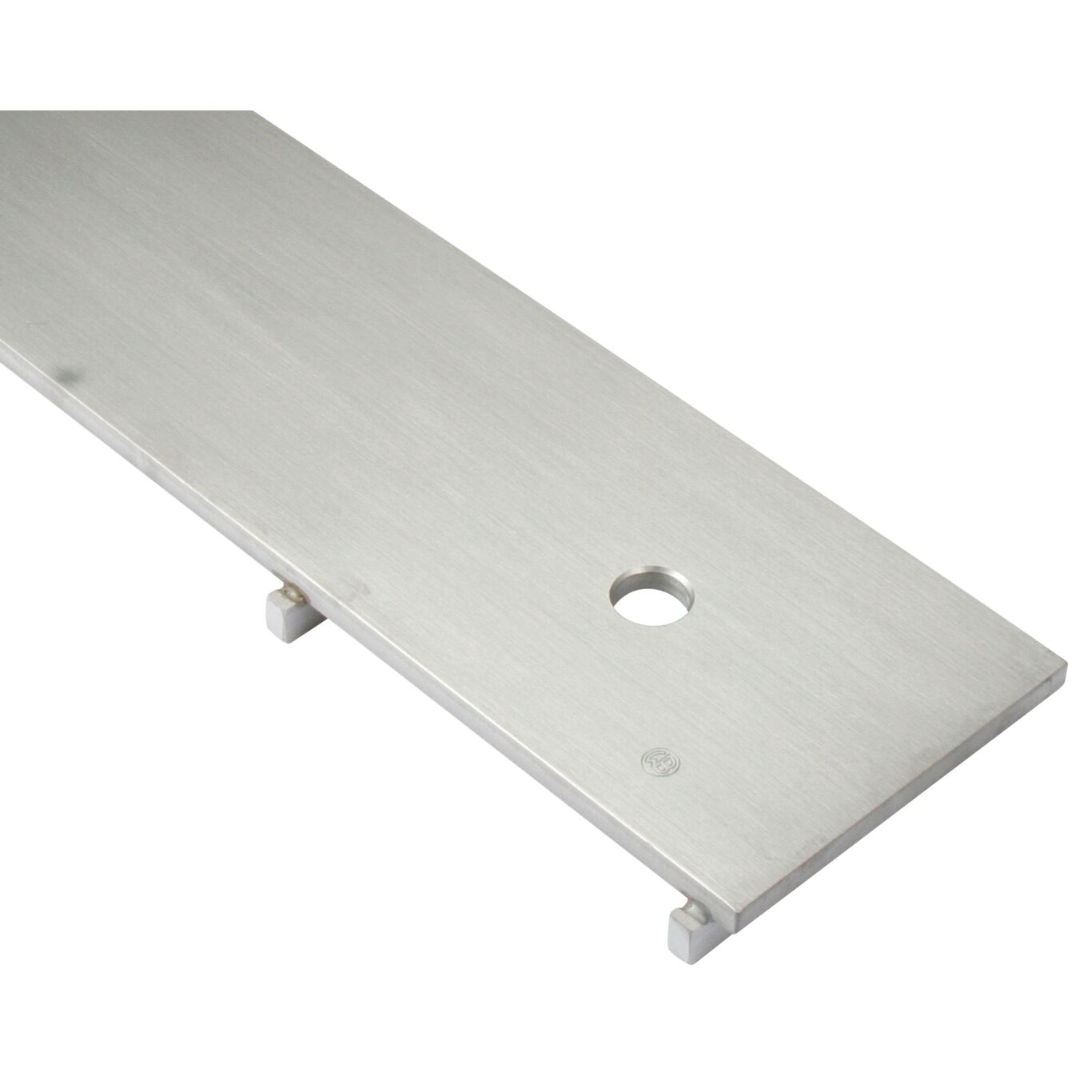

SLOT GRATING CHANNEL

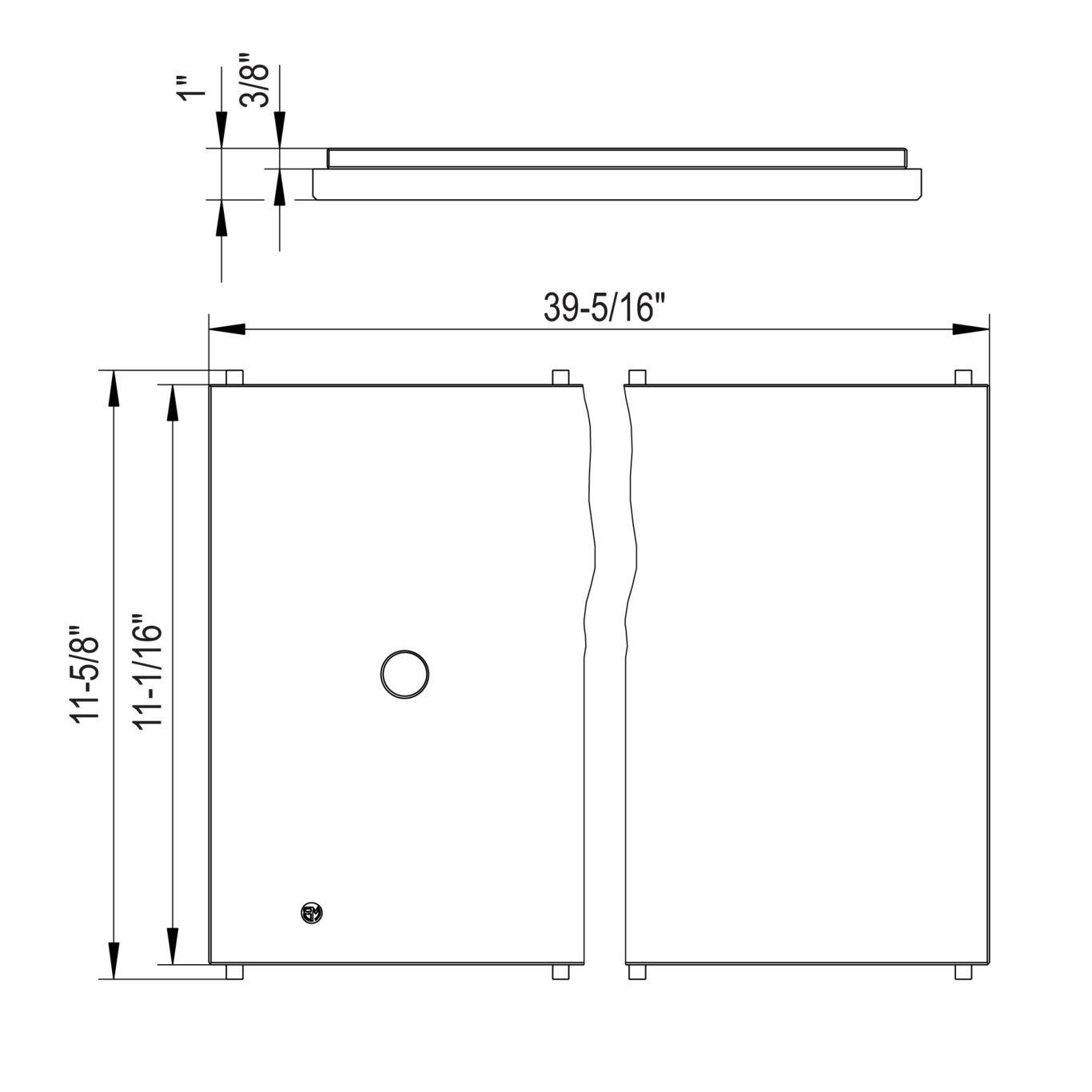

-Grating: 11-5/8 x 39-5/16 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Load class EN1253(kg) | M125 (13000) |
| Load class EN1253(lbs) | M125 (28660) |
| Load Class EN1433 | B125 |
| Load class EN1433(kg) | B125 (17.000) |
| Load class EN1433(lbs) | B125 (37479) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 300x1000 |
| Size of Frame (Inch) | 11-3/4 x 39-3/8 |
| Weight (kg) | 25 |
| Weight (lbs) | 55.12 |
-
Approval Information
For approval information, please refer to the below approval certificates.
