MESH GRATING CHANNEL - (696.223.394.99)

Part Of the Series: Grating-Channel-400

Type no.: 696.223.394.99

EAN no.: 5705499131536

NRF no.: 3397148

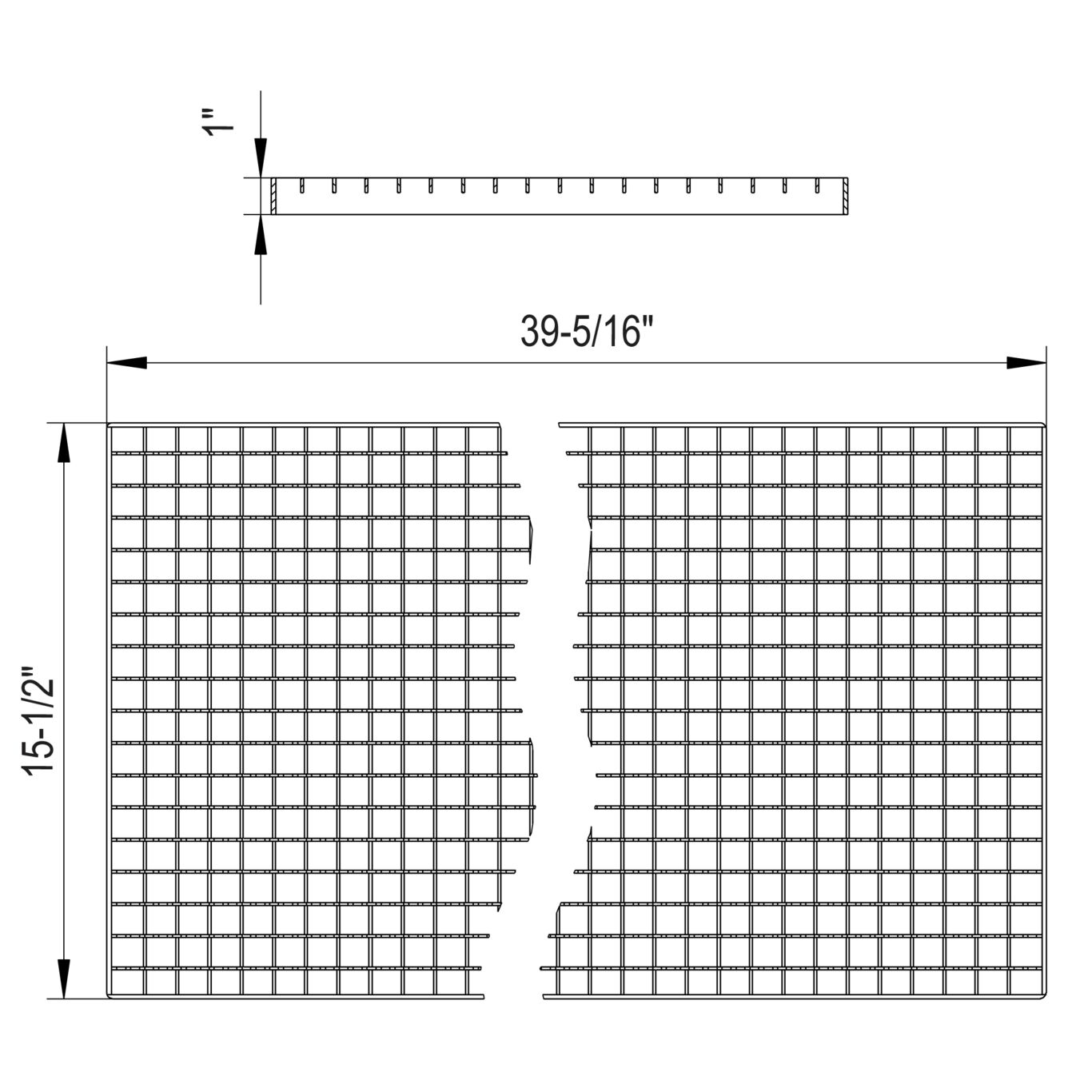

Size: 400x1000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 L15
Load class EN1253(kg) L15 (1500)
Load class EN1253(lbs) L15 (3307)
Load Class EN1433 A15
Load class EN1433(kg) A15 (4.000)
Load class EN1433(lbs) A15 (8818)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R12
Number of Screws 0
Shape Rectangular
Size (mm) 400x1000
Size of Frame (Inch) 15-3/4 x 39-3/8
Weight (kg) 10.2
Weight (lbs) 22.49
