GRATING SQUARE VIENNA - (610.155.421)
×
![]()
Part Of the Series: Grating-Drain-145
Type no.: 610.155.421
EAN no.: 5705499102116
VVS no.: 153884140
RSK no.: 7121710
NRF no.: 3394822
LVI no.: 3304461
Size: 140x140

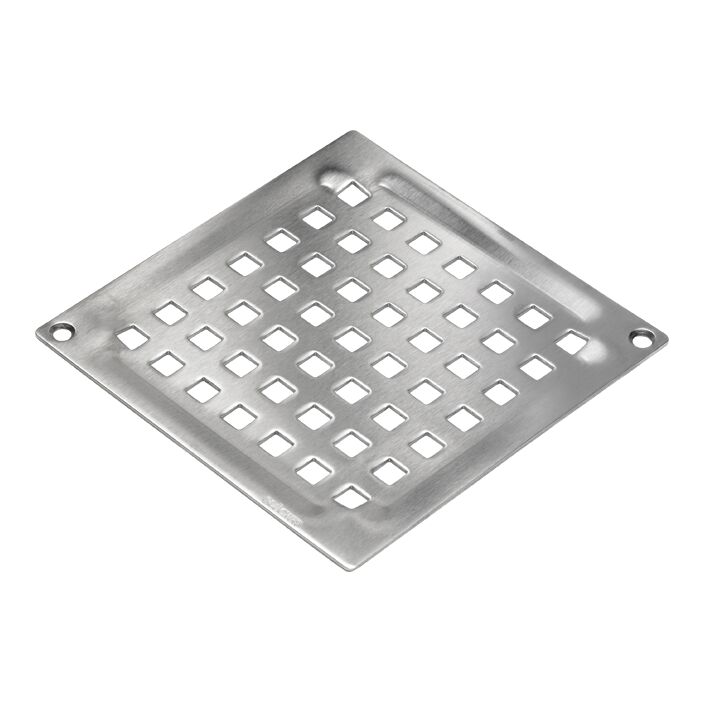

GRATING SQUARE VIENNA
-With screw lock
-Grating: 5-1/2 x 5-1/2 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 3 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 140x140 |
| Size of Frame (Inch) | 5-1/2 x 5-1/2 |
| Weight (kg) | 0.26 |
| Weight (lbs) | 0.73 |
-
Approval Information
For approval information, please refer to the below approval certificates.
