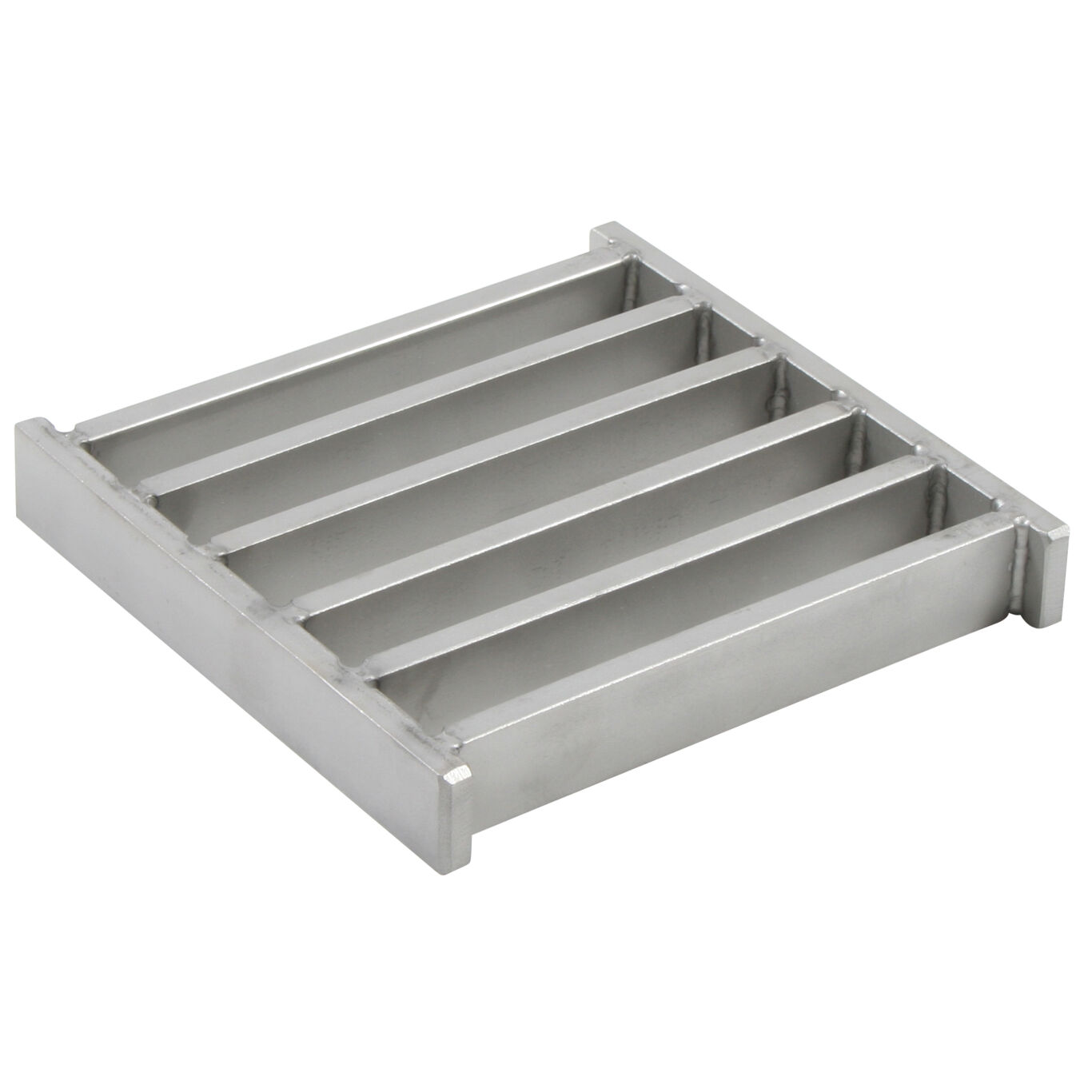

LADDER GRATING SQUARE - (790.168.000.28)

Part Of the Series: Grating-Drain-200

Type no.: 790.168.000.28

EAN no.: 5705499124163

RSK no.: 7123462

NRF no.: 3397189

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 M125
Load class EN1253(kg) M125 (12000)
Load class EN1253(lbs) M125 (26455)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R11
Number of Screws 0
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 1.97
Weight (lbs) 4.34
