3MM GRATING CIRCLE - (790.173.000.03 S)
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.03 S
EAN no.: 5705499106817
VVS no.: 153559163
RSK no.: 7121876
NRF no.: 3395162
LVI no.: 3304051
Size: Ø195

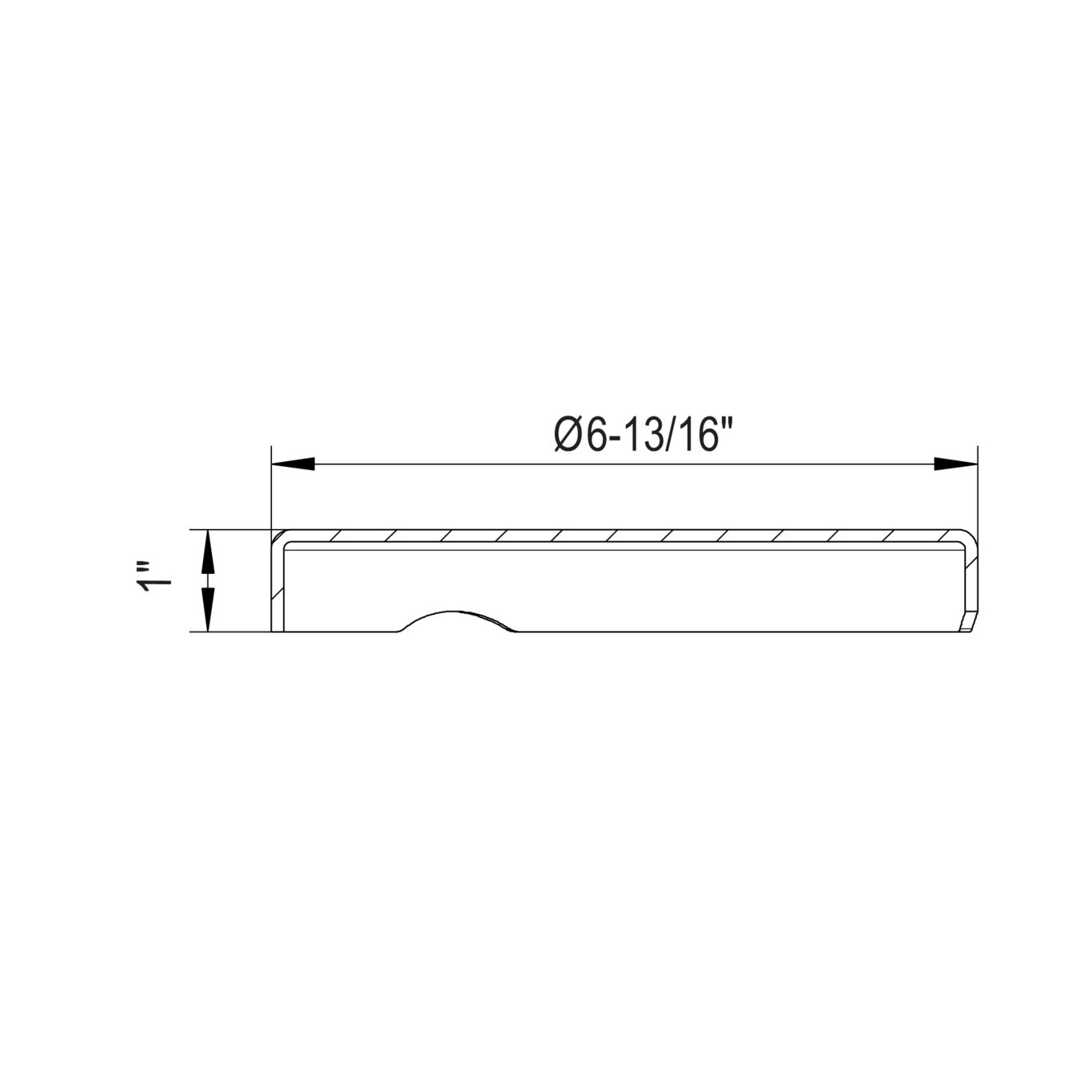

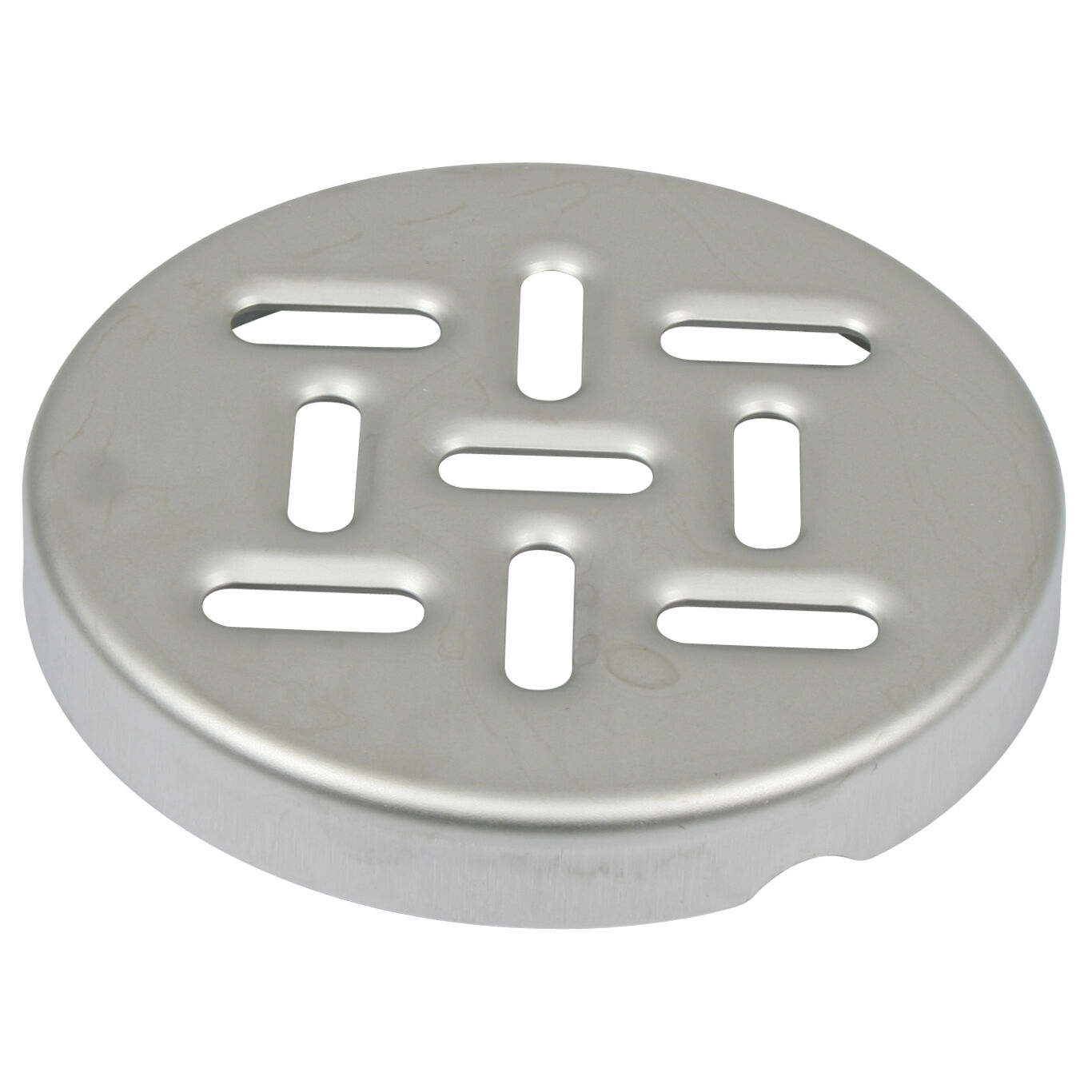

3MM GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI316L/EN1.4404
Part of USA order number: BFD-113-R, BFD-113-R-SO, BFD-113-R-TPT, BFD-113-R-TPT-316, BFD-114-R, BFD-114-R-316, BFD-114-R-SO, BFD-114-R-TPT, BFD-213-R, BFD-213-R-SO, BFD-213-R-TPT, BFD-214-R, BFD-214-R-SO, BFD-413, BFD-413-TPT, BFD-414, BFD-423, BFD-423-316, BFD-423-SO, BFD-423-TPT, BFD-424, BFD-424-316, BFD-424-SO, BFD-424-TPT, BFD-513, BFD-513-TPT, BFD-514, BFD-514-TPT, BFD-523, BFD-523-TPT, BFD-524, BFD-524-TPT
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (2500) |
| Load class EN1253(lbs) | L15 (5512) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø195 |
| Size of Frame (Inch) | Ø7-5/8 |
| Weight (kg) | 0.77 |
| Weight (lbs) | 1.7 |
-
Approval Information
For approval information, please refer to the below approval certificates.
