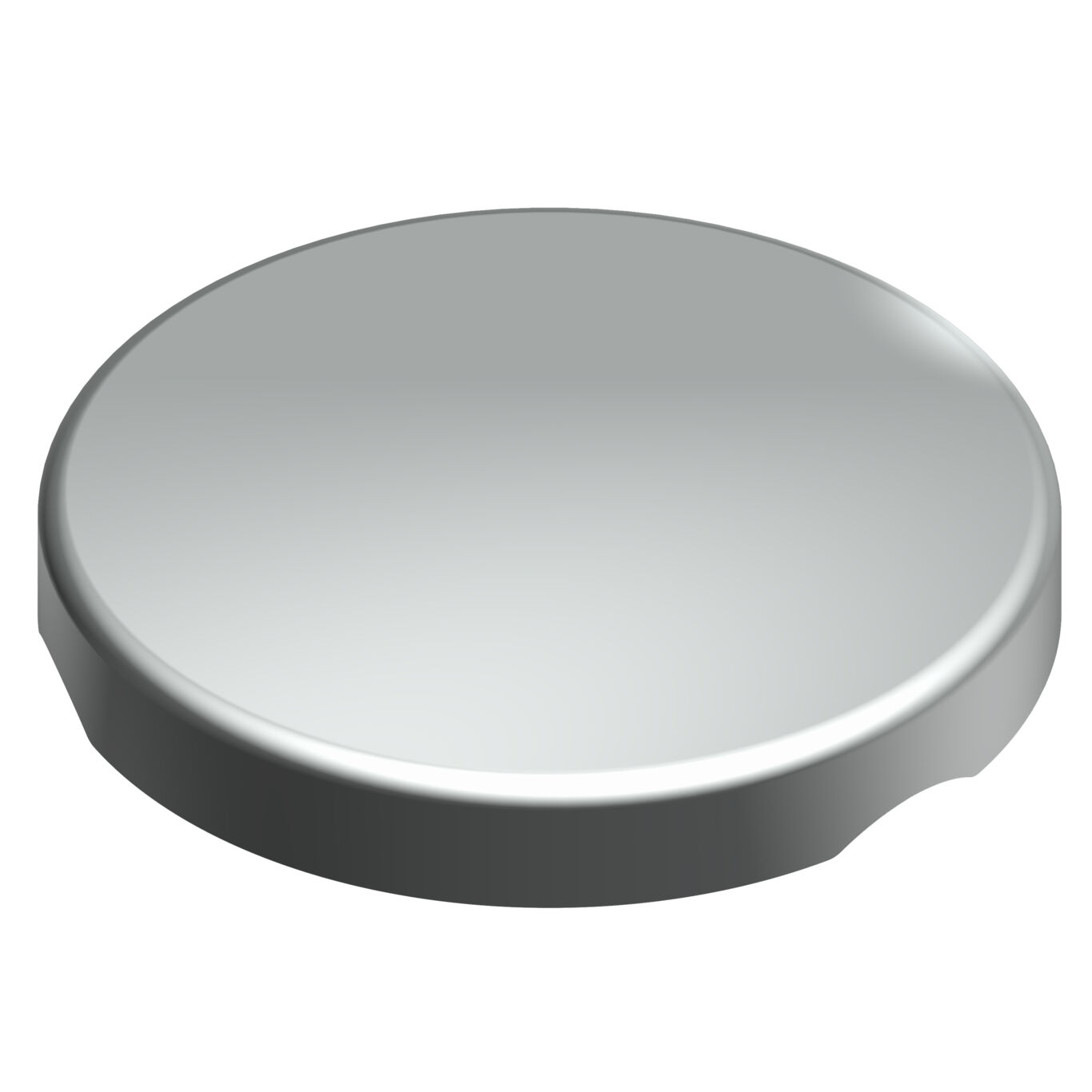

BLANK PLATE CIRCLE - (790.173.000.00)

Part Of the Series: Grating-Drain-205-Vinyl-232

Type no.: 790.173.000.00

EAN no.: 5705499121216

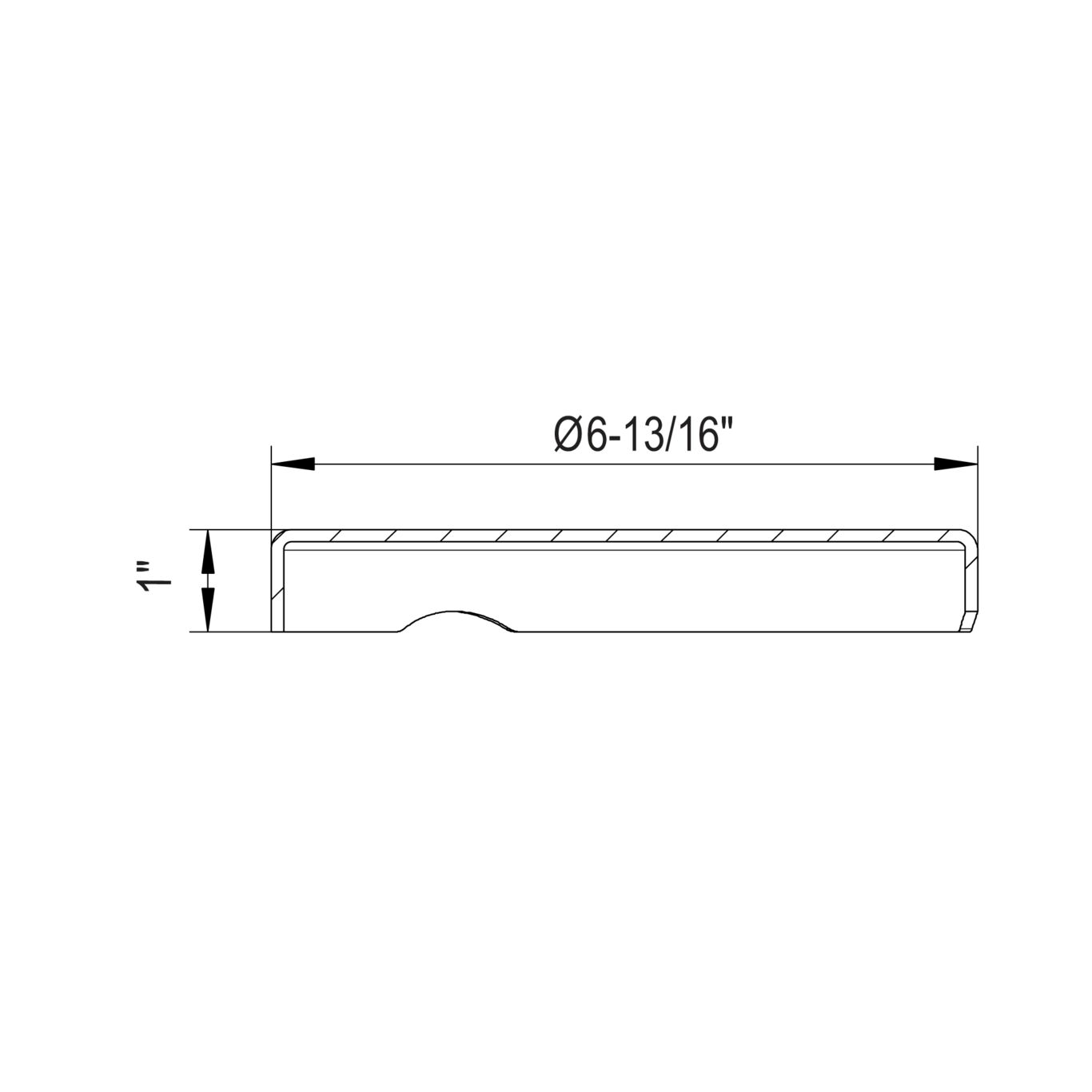

Size: Ø195


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 L15
Load class EN1253(kg) L15 (2500)
Load class EN1253(lbs) L15 (5512)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Number of Screws 0
Shape Round
Size (mm) Ø195
Size of Frame (Inch) Ø7-5/8
Weight (kg) 2.4
Weight (lbs) 5.29
