HYGIENICPRO GRATING SQUARE - (790.218.000.60)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.60
EAN no.: 5705499128338
LVI no.: 3304992
Size: 250x250

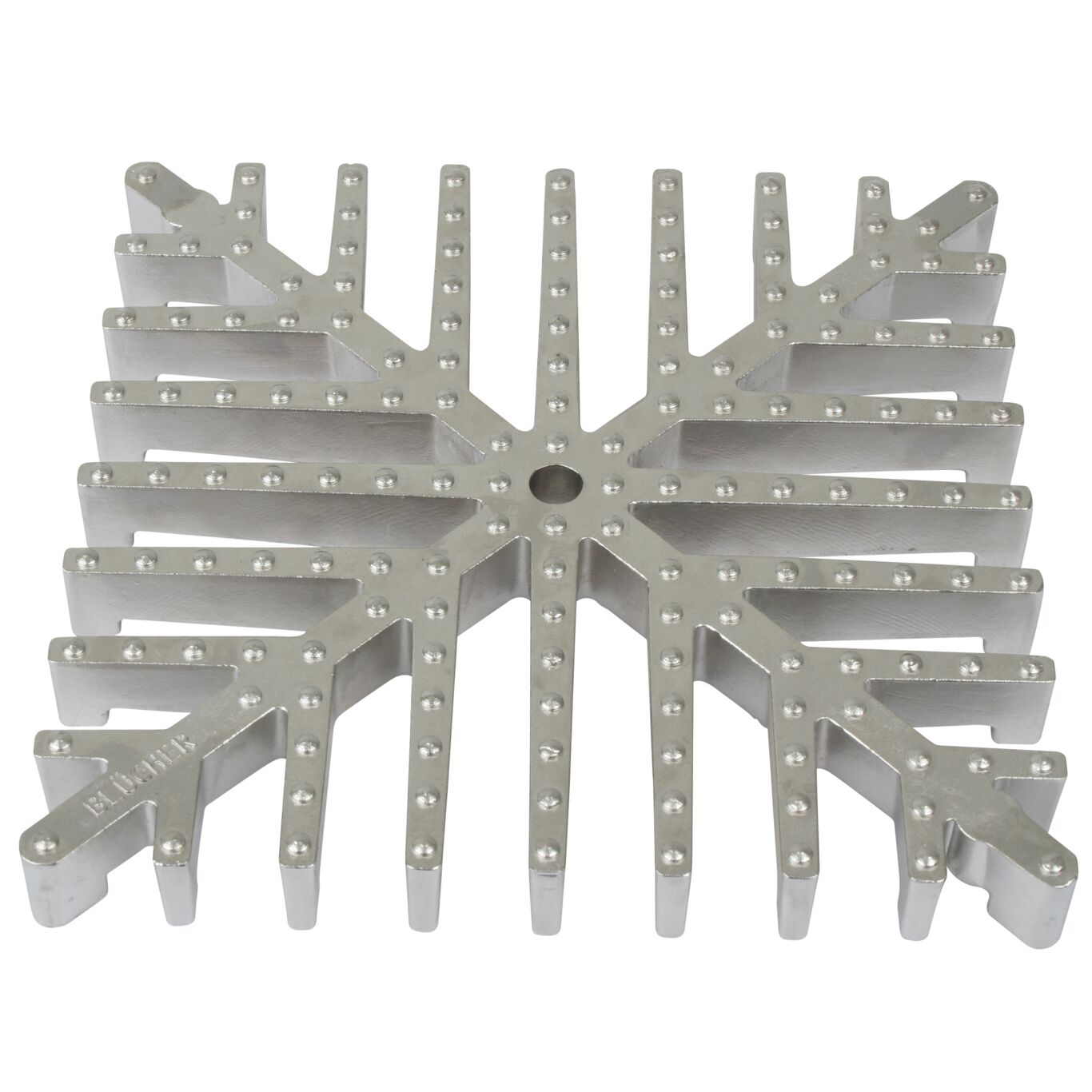

HYGIENICPRO GRATING SQUARE

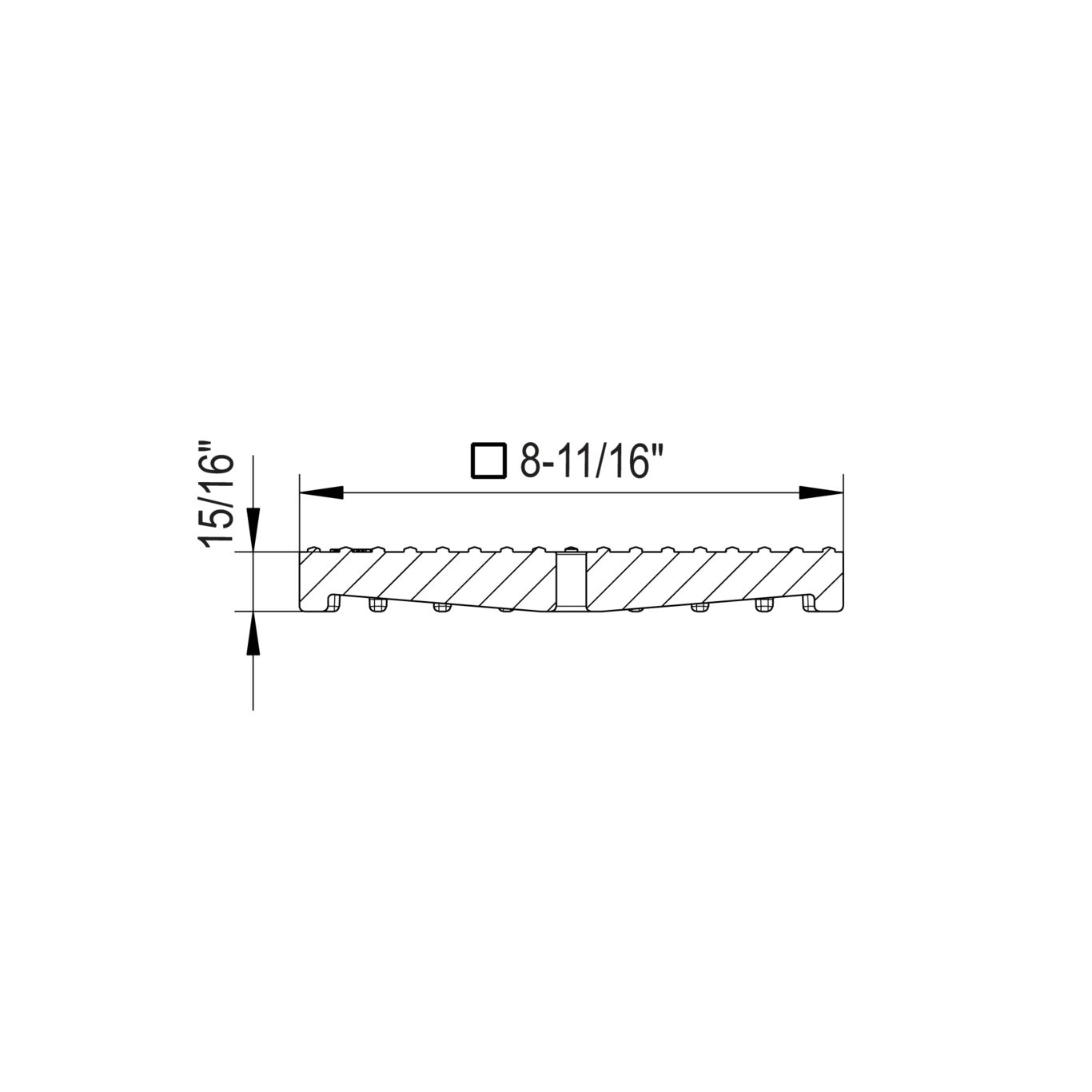

-Grating: 220x220mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load class EN1253(kg) | R50 (5000) |
| Load class EN1253(lbs) | R50 (11023) |
| Load Class EN1433 | A15 |
| Load class EN1433(kg) | A15 (4.000) |
| Load class EN1433(lbs) | A15 (8818) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 24 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 250x250 |
| Size of Frame (Inch) | 9-7/8 x 9-7/8 |
| Weight (kg) | 3.31 |
| Weight (lbs) | 7.3 |
-
Approval Information
For approval information, please refer to the below approval certificates.
