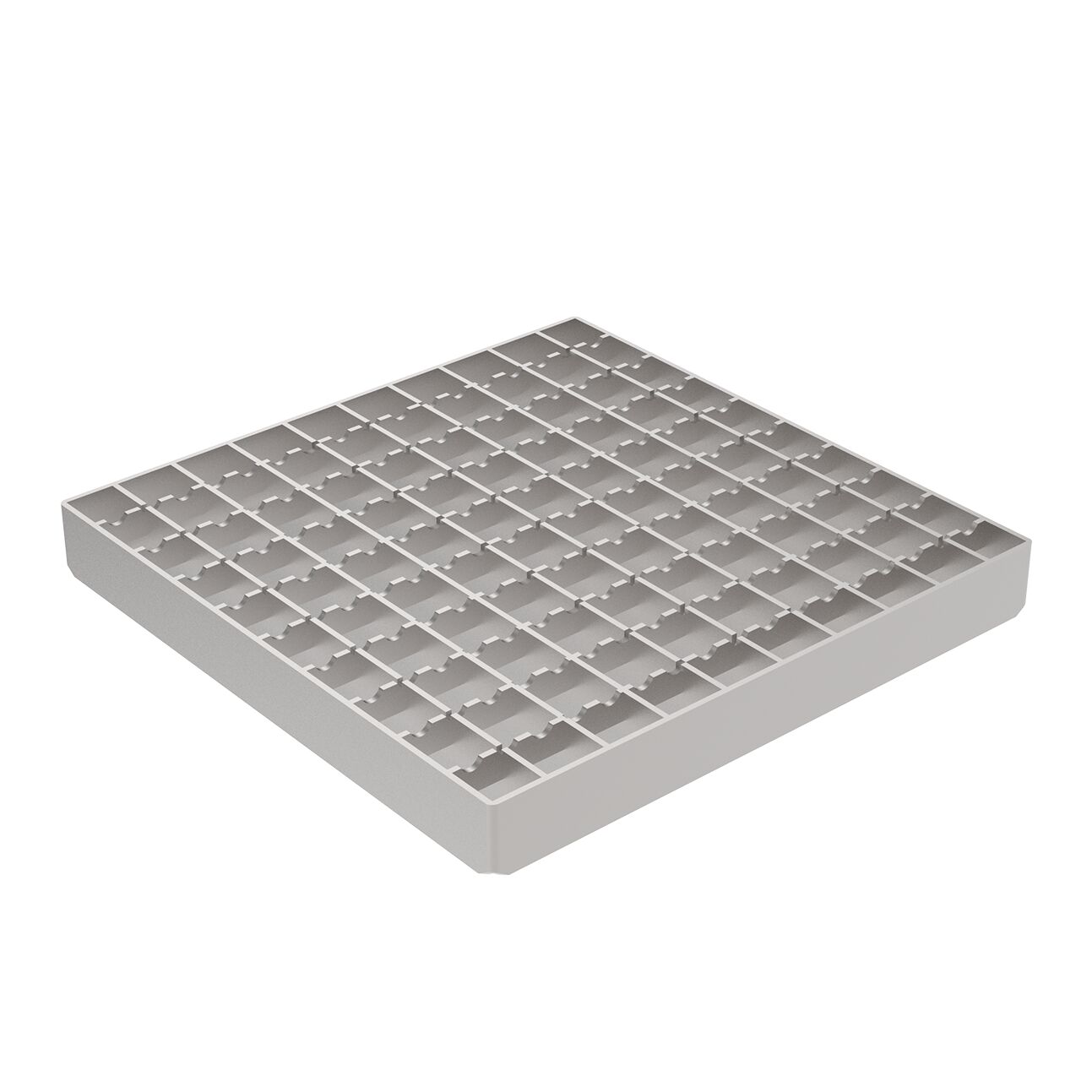

MESH GRATING SQUARE - (790.218.000.22)

Part Of the Series: Grating-Drain-250

Type no.: 790.218.000.22

EAN no.: 5705499128680

LVI no.: 3304990

Size: 250x250

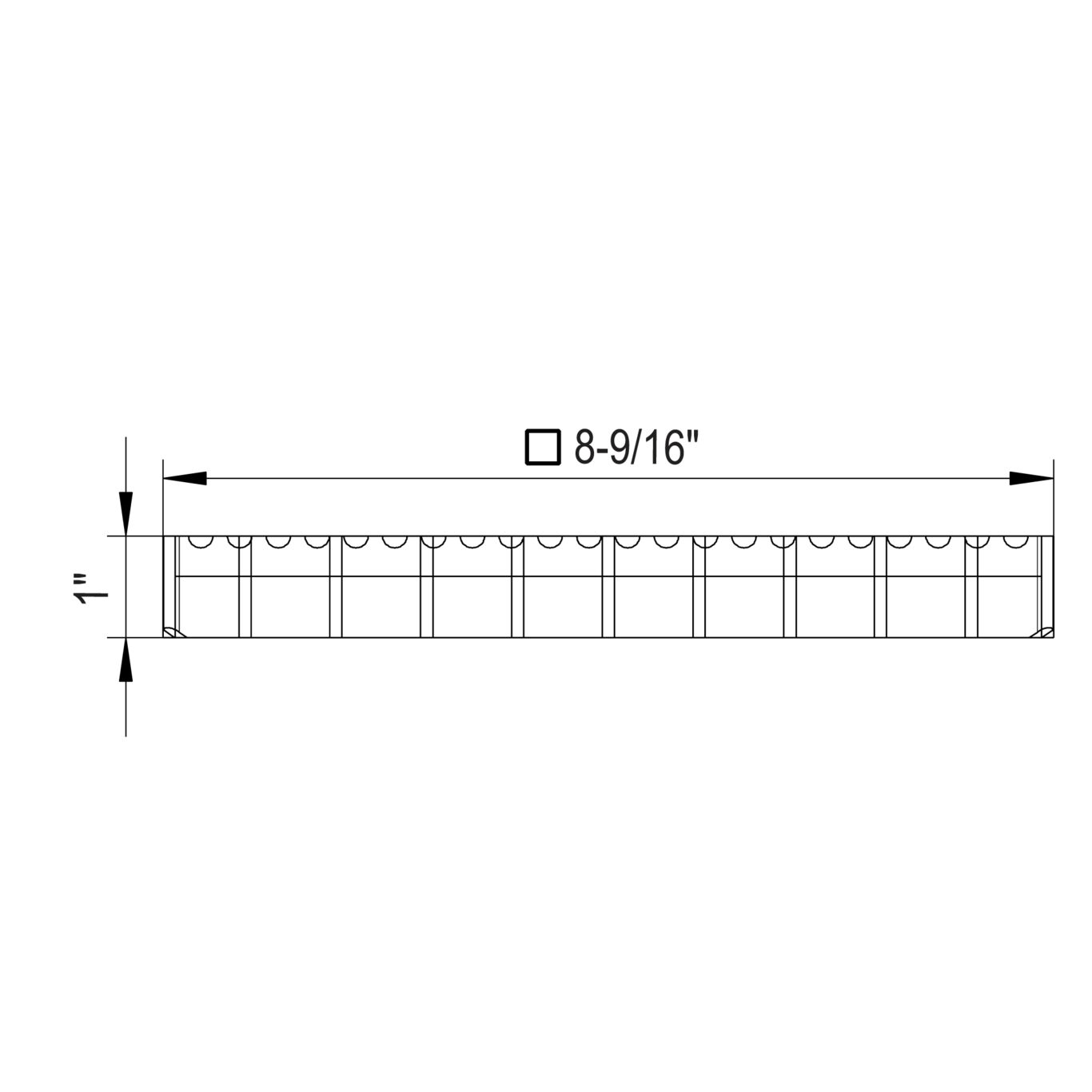

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 L15
Load class EN1253(kg) L15 (1250)
Load class EN1253(lbs) L15 (2756)
Load Class EN1433 A15
Load class EN1433(kg) A15 (1.500)
Load class EN1433(lbs) A15 (3307)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R12
Number of Screws 0
Shape Square
Size (mm) 250x250
Size of Frame (Inch) 9-7/8 x 9-7/8
Weight (kg) 1.85
Weight (lbs) 4.08
