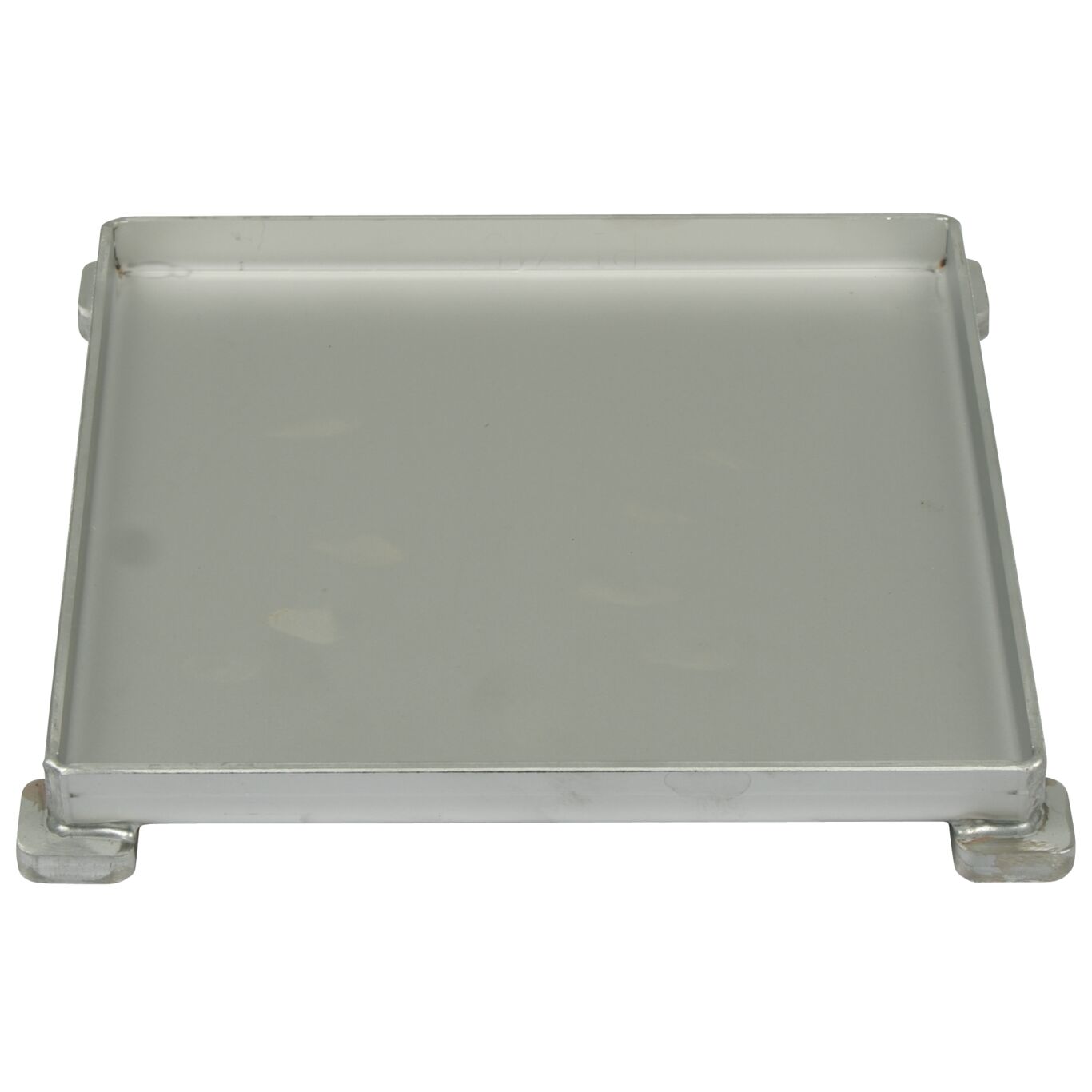

TILED/EPOXY GRATING SQUARE - (790.218.000.06)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.06
EAN no.: 5705499128536
Size: 250x250
TILED/EPOXY GRATING SQUARE
-Grating: 219x219mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (1000) |
| Load class EN1253(lbs) | L15 (2205) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 250x250 |
| Size of Frame (Inch) | 9-7/8 x 9-7/8 |
| Weight (kg) | 1.42 |
| Weight (lbs) | 3.13 |
-
Approval Information
For approval information, please refer to the below approval certificates.
