SHOWER GRATING SQUARE - (790.268.000.04)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.04
EAN no.: 5705499128451
RSK no.: 7123453
NRF no.: 3397193
Size: 300x300

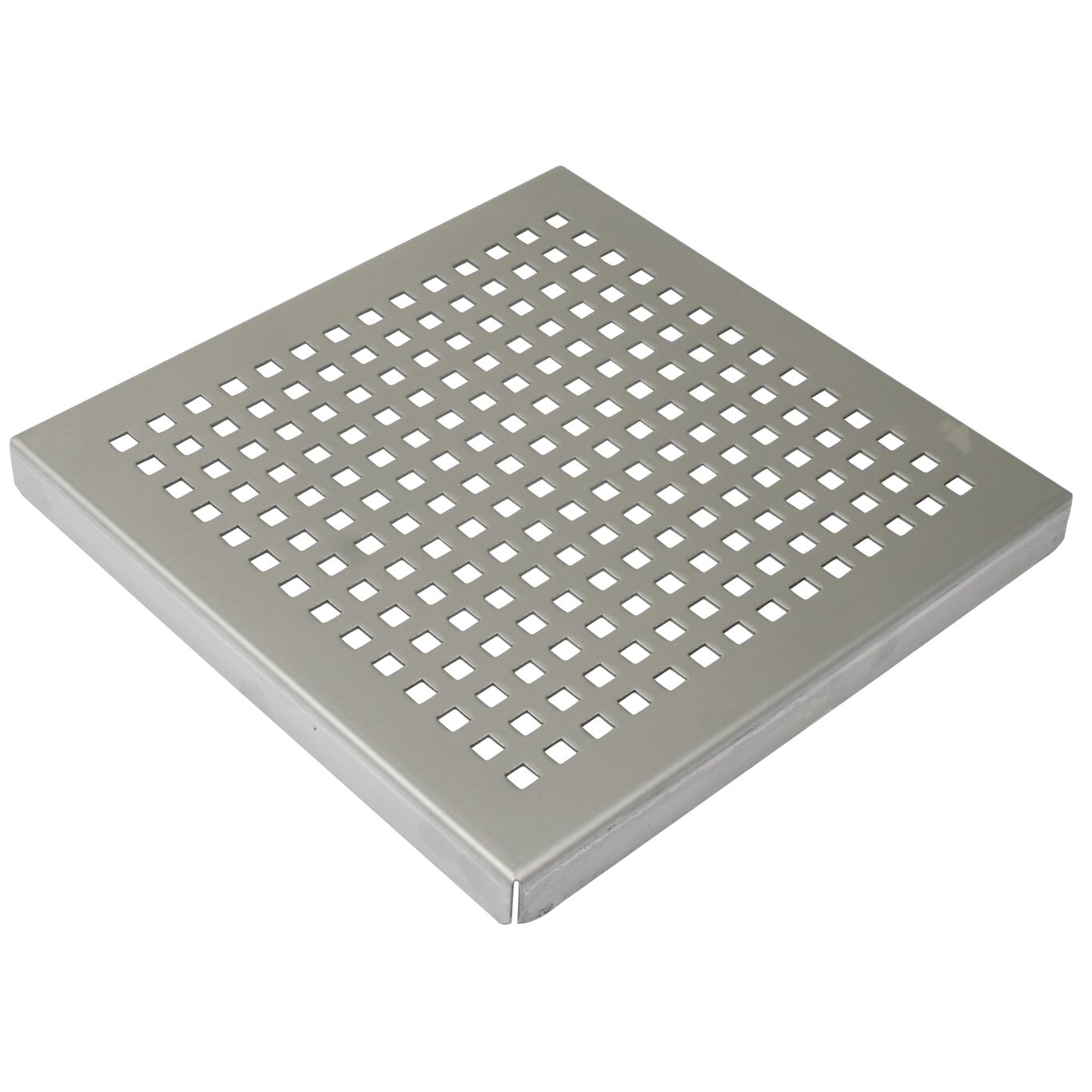

SHOWER GRATING SQUARE
-Grating: 268x268mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 (600) |
| Load class EN1253(lbs) | K3 (1323) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 1.3 |
| Weight (lbs) | 2.87 |
-
Approval Information
For approval information, please refer to the below approval certificates.
