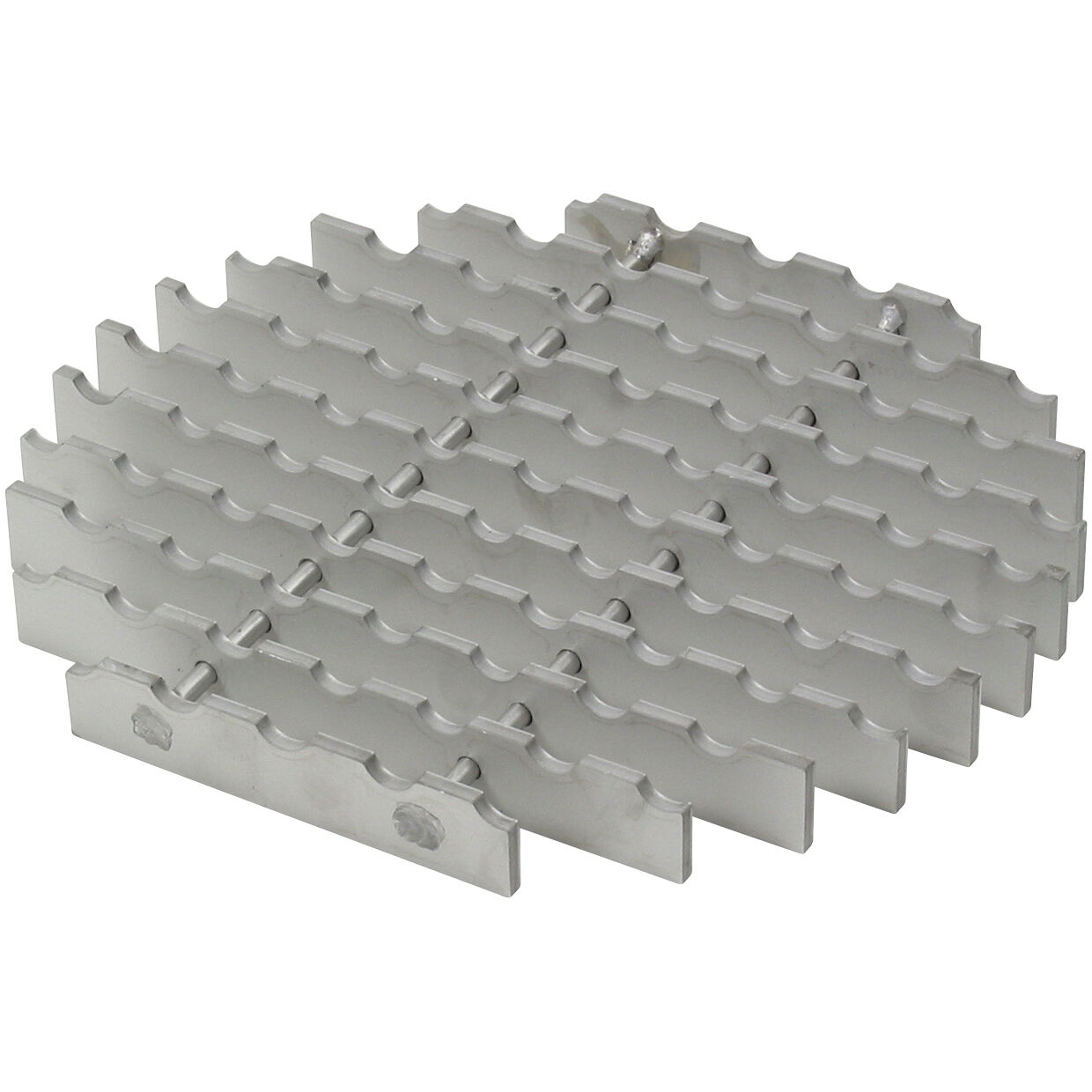

LADDER GRATING CIRCLE - (790.273.000.25 S)

Part Of the Series: Grating-Drain-305-Vinyl-332

Type no.: 790.273.000.25 S

EAN no.: 5705499106879

VVS no.: 153559155

NRF no.: 3395167

LVI no.: 3304061

Size: Ø295


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 R50
Load class EN1253(kg) R50 (3333)
Load class EN1253(lbs) R50 (7348)
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 25
Non slip R11
Number of Screws 0
Shape Round
Size (mm) Ø295
Size of Frame (Inch) Ø11-5/8
Weight (kg) 0.98
Weight (lbs) 2.16
