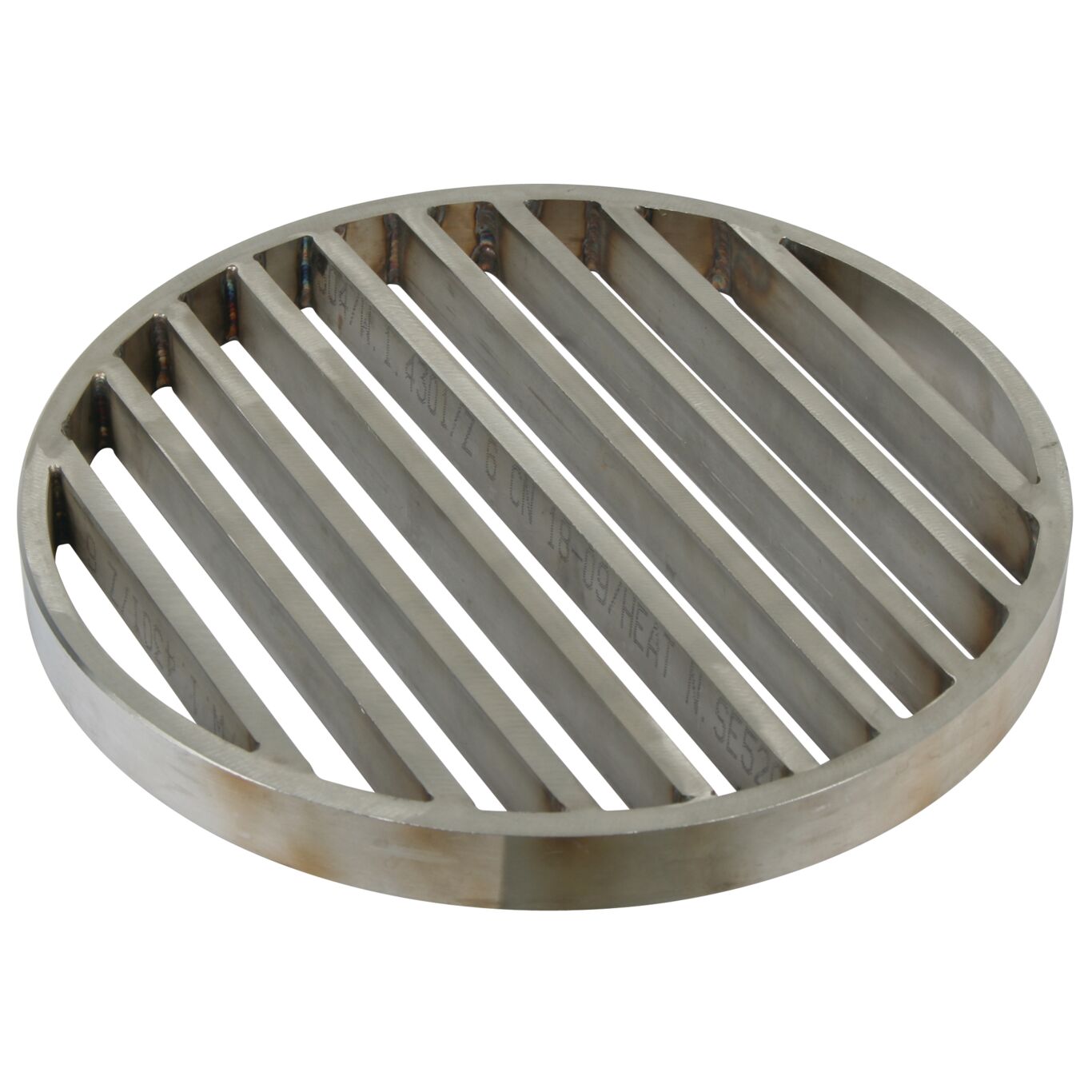

LADDER GRATING CIRCLE - (790.273.000.28)

Part Of the Series: Grating-Drain-305-Vinyl-332

Type no.: 790.273.000.28

EAN no.: 5705499128635

RSK no.: 7123465

NRF no.: 3397197

Size: Ø295


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 M125
Load class EN1253(kg) M125 (10000)
Load class EN1253(lbs) M125 (22046)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R11
Number of Screws 0
Shape Round
Size (mm) Ø295
Size of Frame (Inch) Ø11-5/8
Weight (kg) 4.35
Weight (lbs) 9.59
