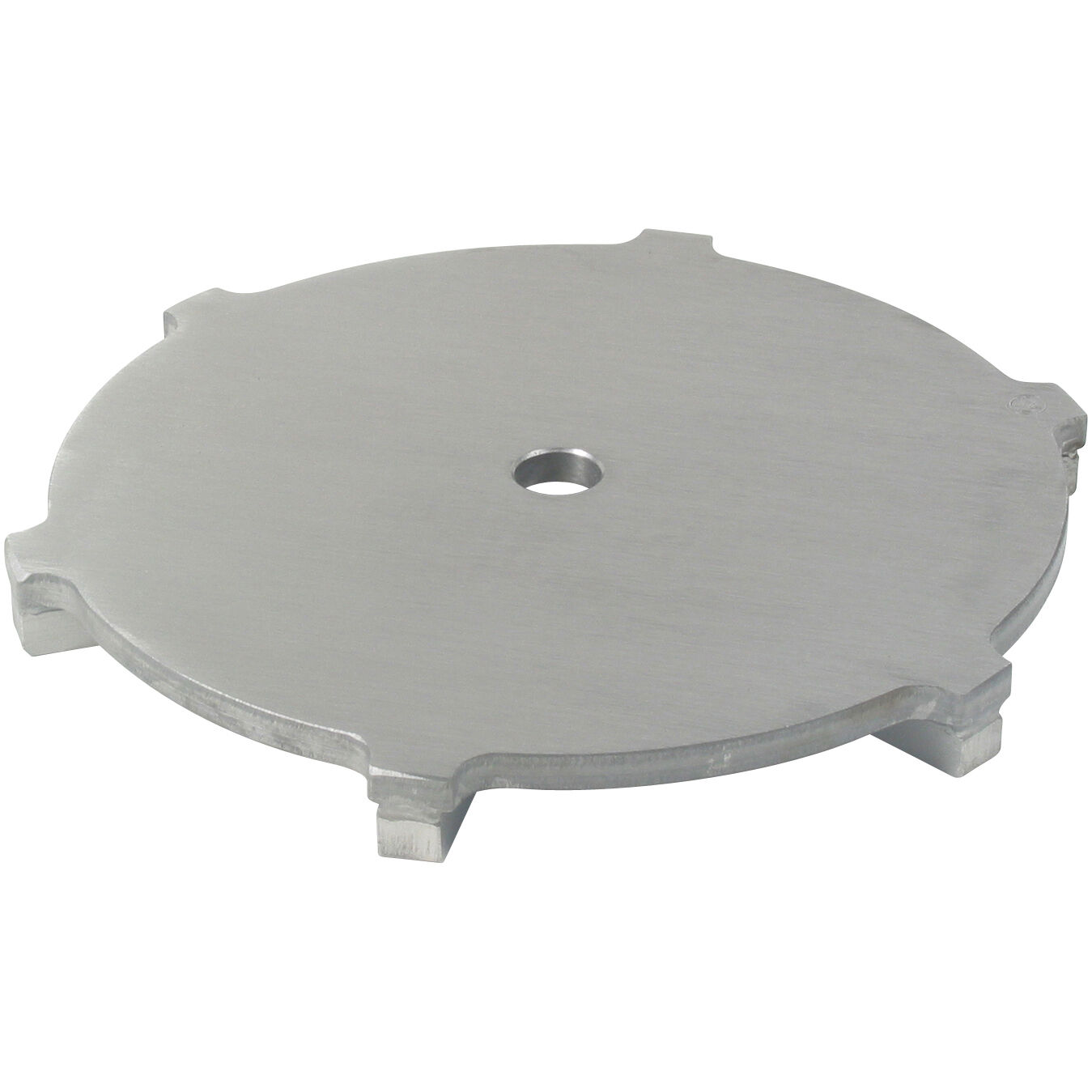

SLOT GRATING CIRCLE - (790.273.000.10 S)

Part Of the Series: Grating-Drain-305-Vinyl-332

Type no.: 790.273.000.10 S

EAN no.: 5705499106862

VVS no.: 153559120

RSK no.: 7123461

NRF no.: 3395166

LVI no.: 3304055

Size: Ø295


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 M125
Load class EN1253(kg) M125 (8333)
Load class EN1253(lbs) M125 (18371)
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 25
Non slip R10
Number of Screws 0
Shape Round
Size (mm) Ø295
Size of Frame (Inch) Ø11-5/8
Weight (kg) 4.9
Weight (lbs) 10.8
