MESH GRATING SQUARE - (696.223.494.495)
×
![]()
Part Of the Series: Grating-Kitchen Channel-500
Type no.: 696.223.494.495
EAN no.: 5705499117363
RSK no.: 7120425
NRF no.: 3397149
LVI no.: 3304973
Size: 500x500

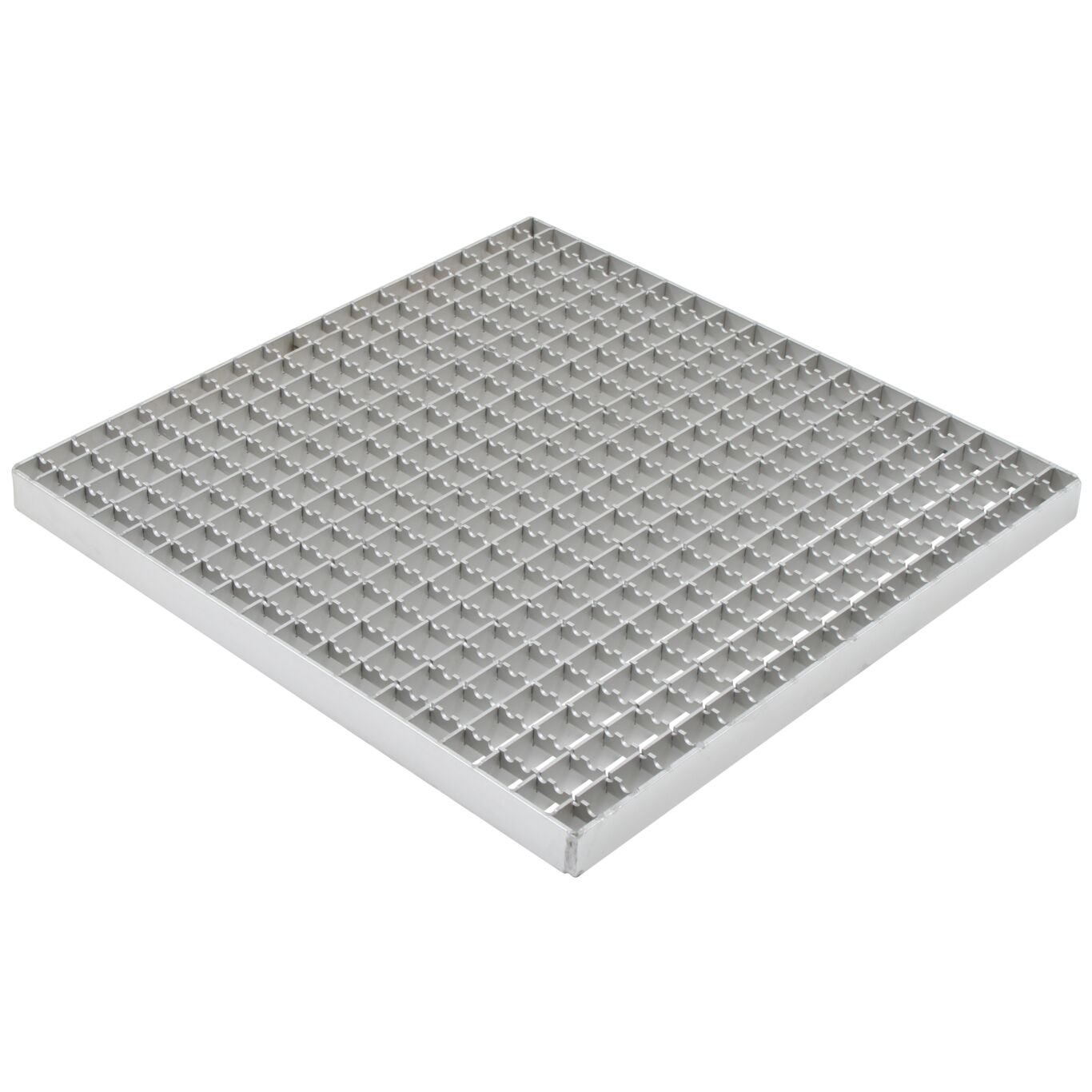

MESH GRATING SQUARE

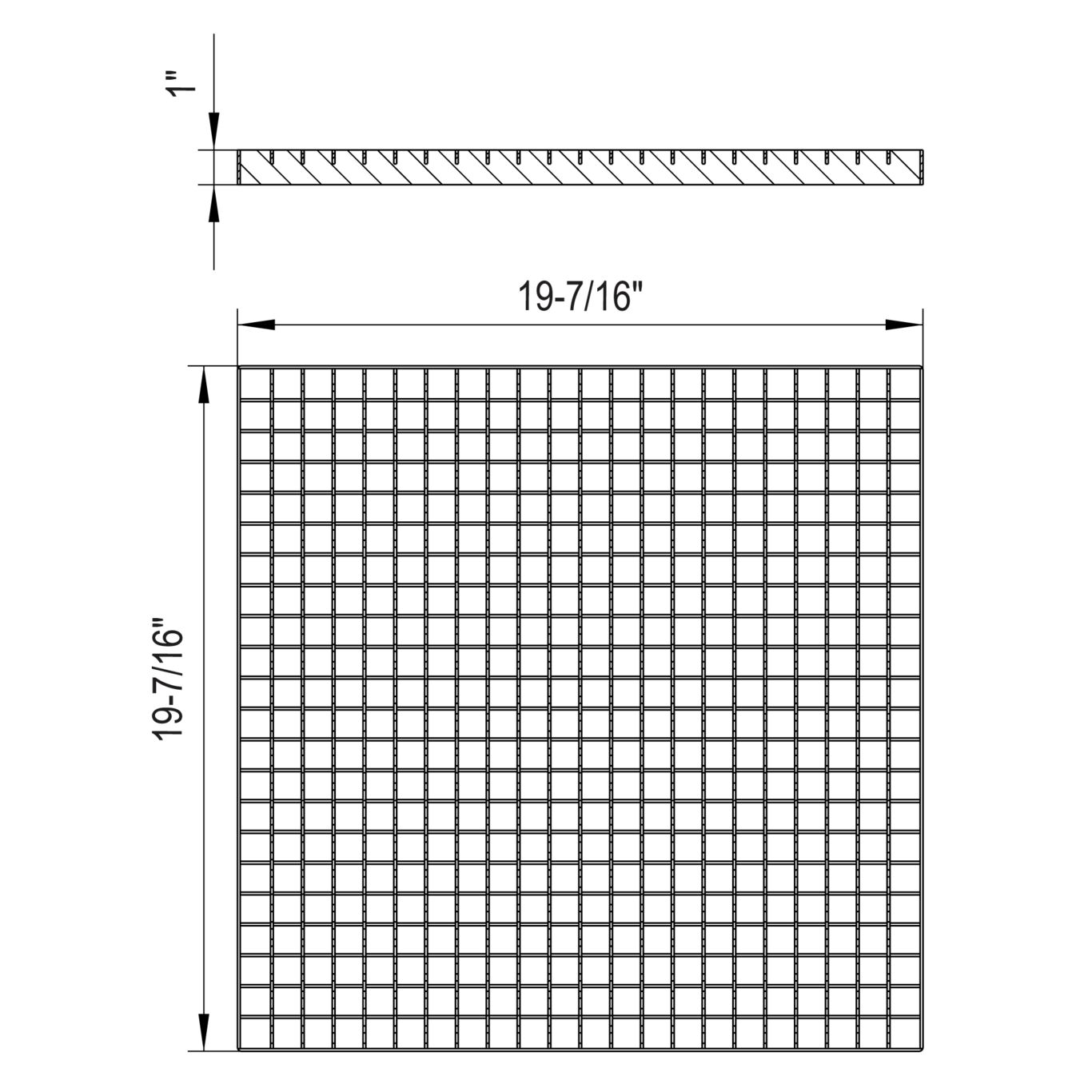

-Grating: 19-1/2 x 19-1/2 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (1500) |
| Load class EN1253(lbs) | L15 (3307) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R12 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 500x500 |
| Size of Frame (Inch) | 19-5/8 x 19-5/8 |
| Weight (kg) | 6.44 |
| Weight (lbs) | 14.2 |
-
Approval Information
For approval information, please refer to the below approval certificates.
