MESH GRATING KITCHEN CHANNEL - (696.223.594.296)
×
![]()
Part Of the Series: Grating-Kitchen Channel-600
Type no.: 696.223.594.296
EAN no.: 5705499140040
RSK no.: 7121860
LVI no.: 3304958
Size: 600x300

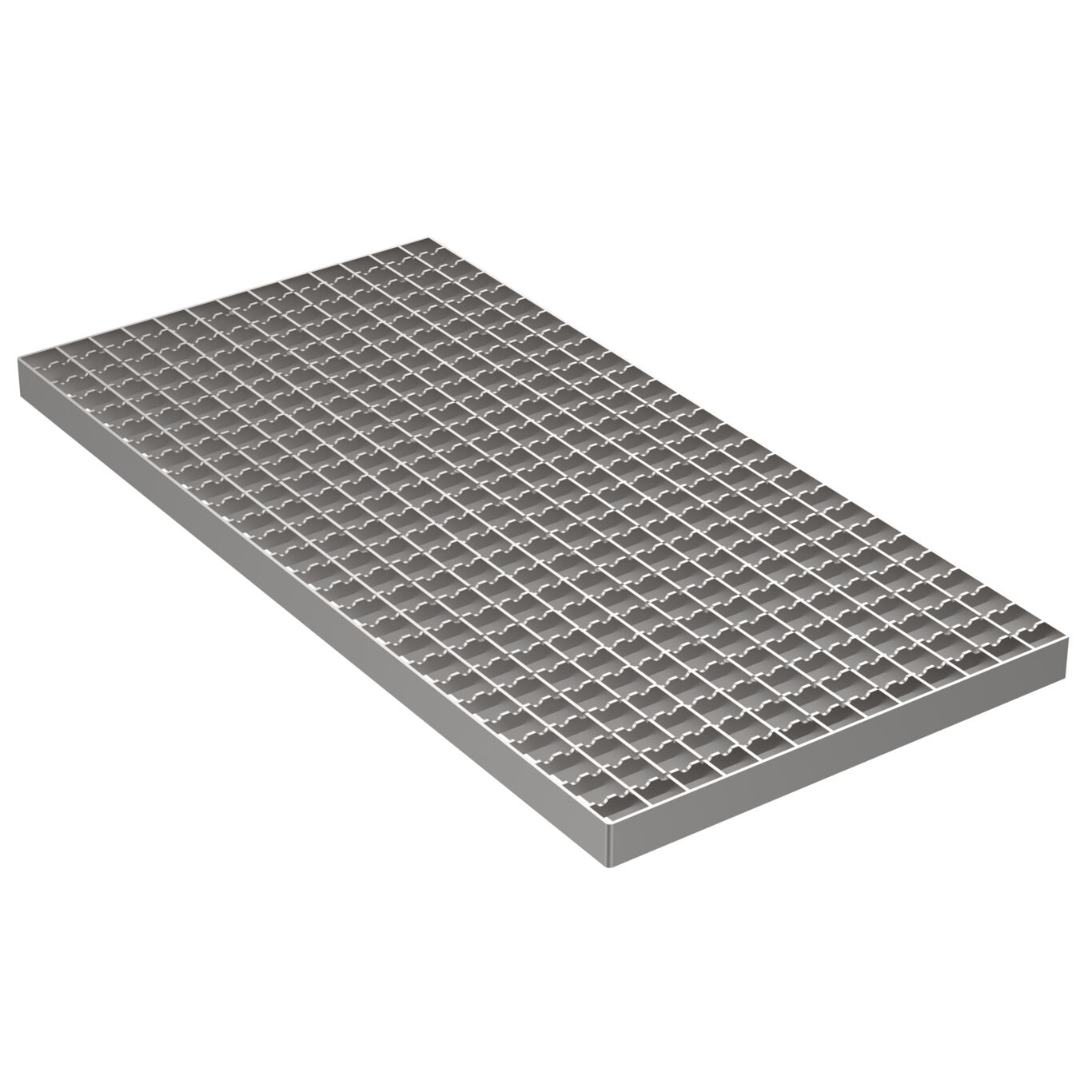

MESH GRATING KITCHEN CHANNEL

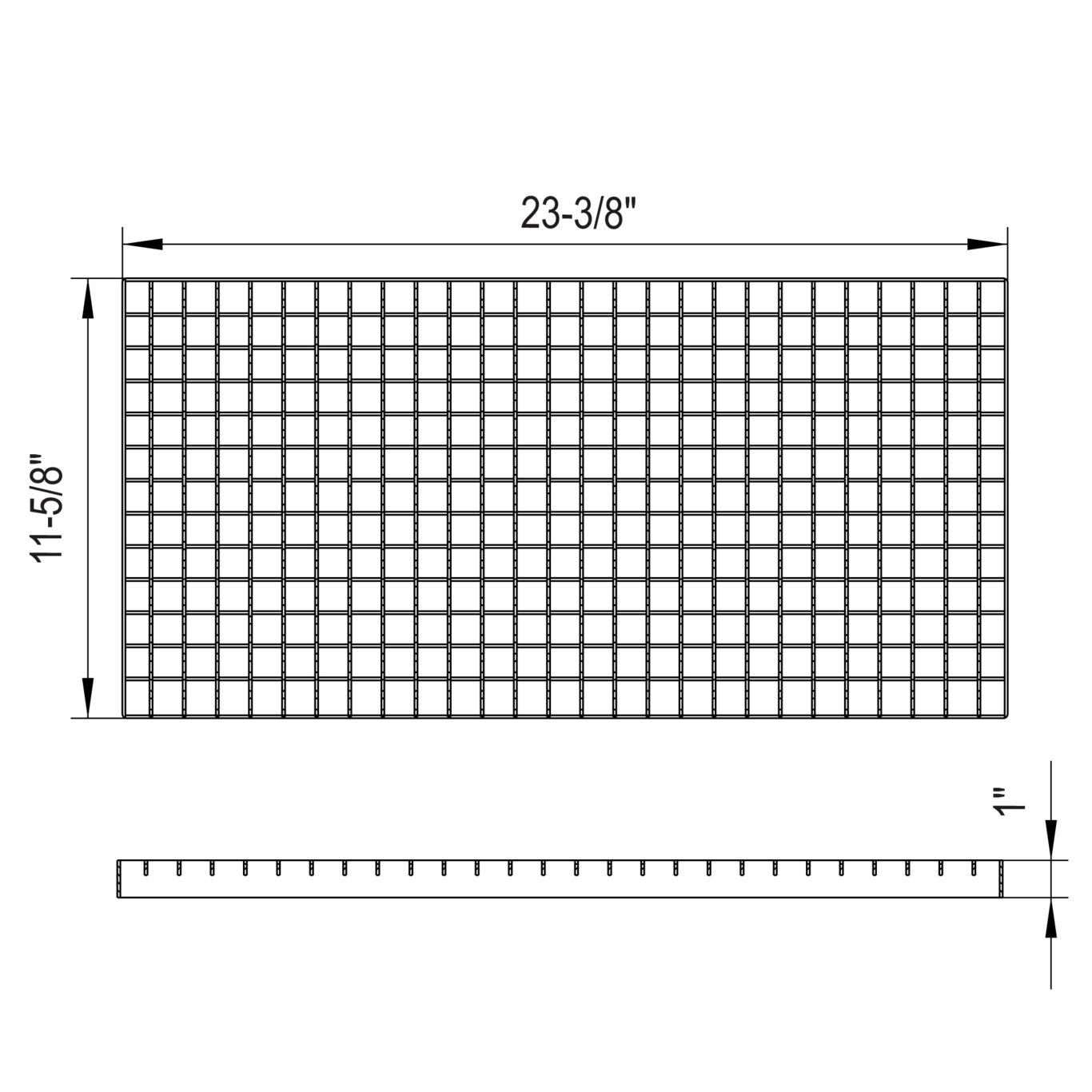

- Grating: 23-3/8 x 11-5/8 inch
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (1500) |
| Load class EN1253(lbs) | L15 (3307) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 600x300 |
| Size of Frame (Inch) | 24 x 12 |
| Weight (kg) | 4.7 |
| Weight (lbs) | 10.36 |
-
Approval Information
For approval information, please refer to the below approval certificates.
