GRATING LINE ATHENS 700 - (697.005.070)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.005.070
EAN no.: 5705499122800
VVS no.: 155070107
RSK no.: 7121733
NRF no.: 3394772
LVI no.: 3304434
Size: 50x700

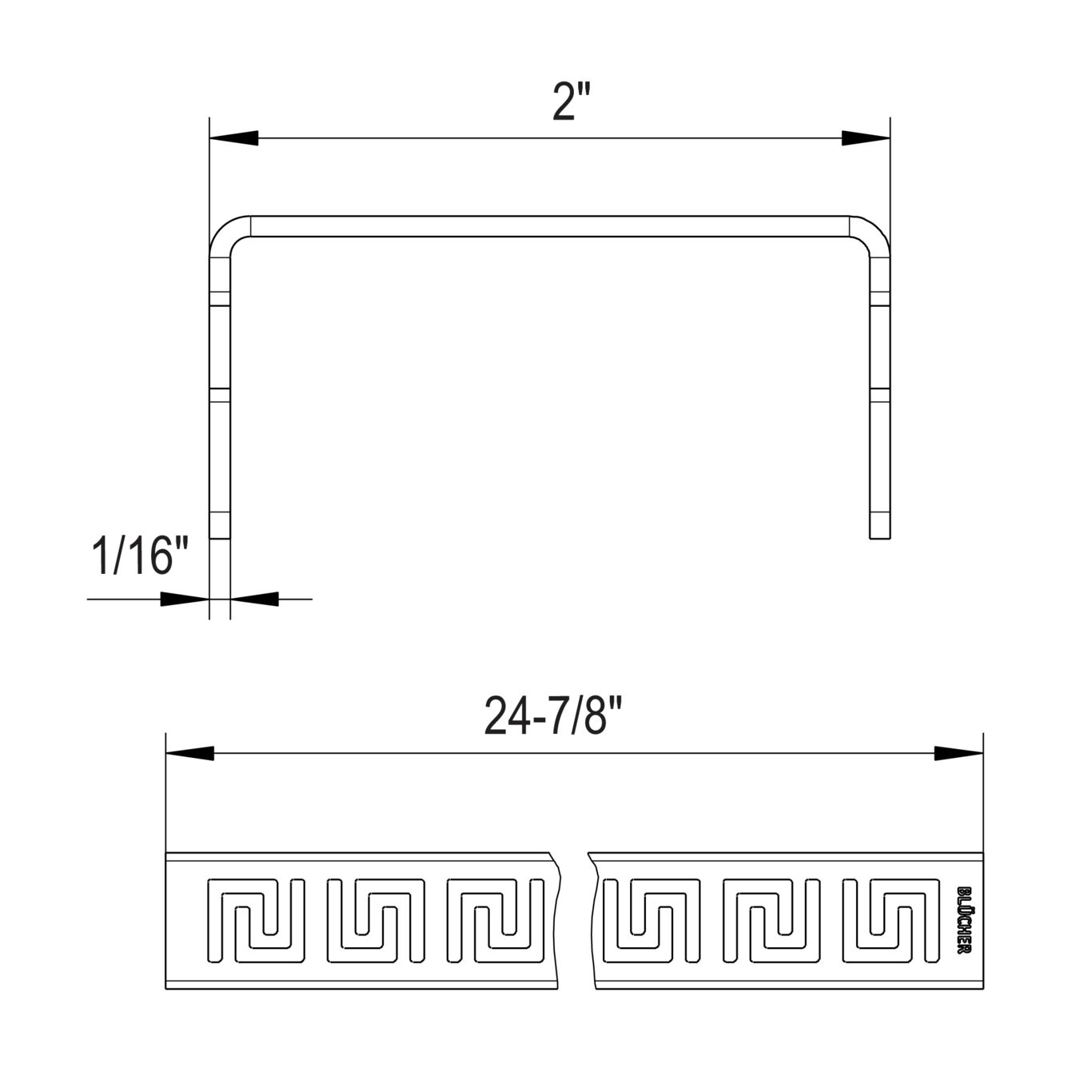

GRATING LINE ATHENS 700
-Grating: 2 x 24-7/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.9 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 50x700 |
| Size of Frame (Inch) | 2 x 27-1/2 |
| Weight (kg) | 0.42 |
| Weight (lbs) | 0.93 |
-
Approval Information
For approval information, please refer to the below approval certificates.
