GRATING LINE ATHENS 900 - (697.005.090)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.005.090
EAN no.: 5705499122824
VVS no.: 155070109
RSK no.: 7121735
NRF no.: 3394774
LVI no.: 3304436
Size: 50x900
GRATING LINE ATHENS 900

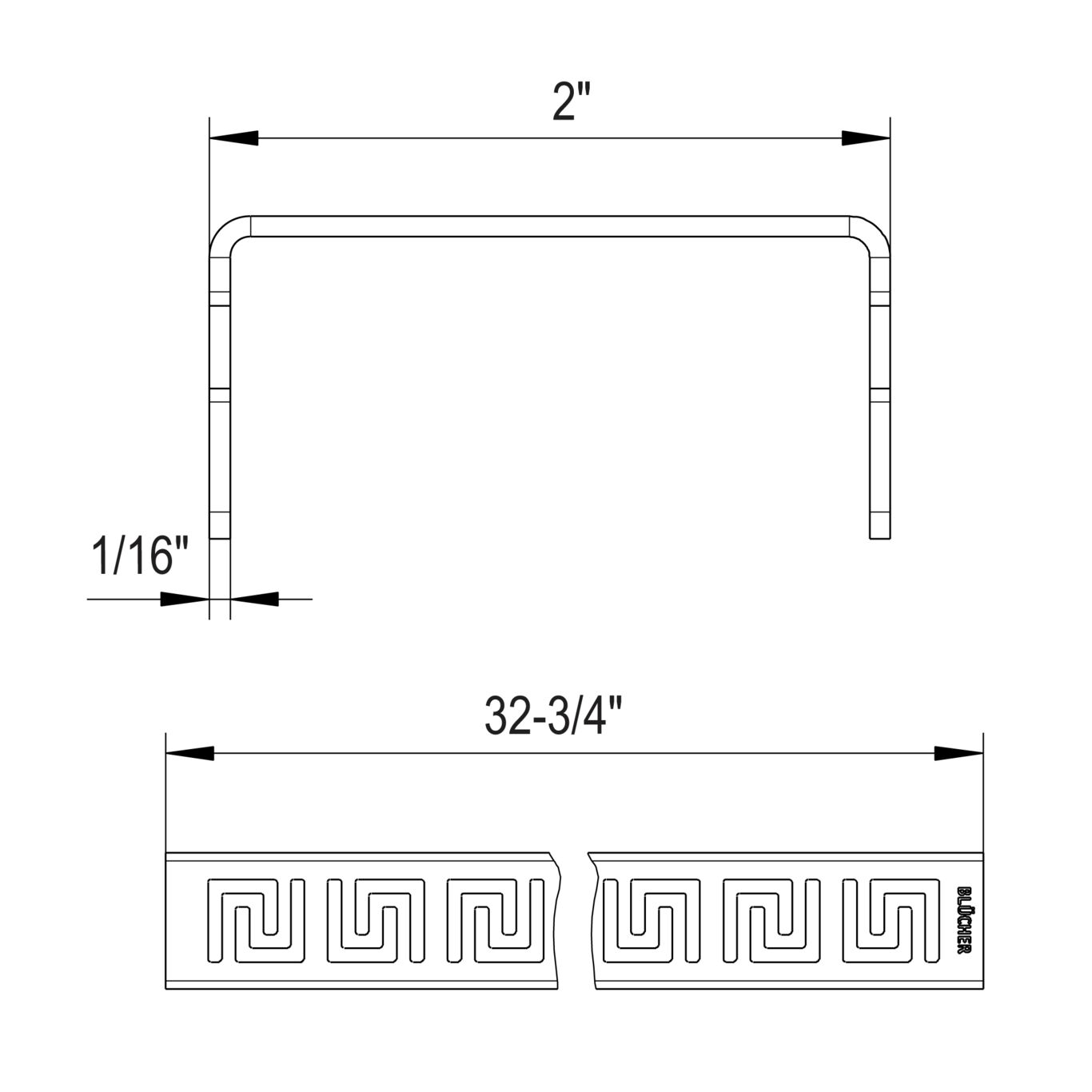

-Grating: 2 x 32-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.9 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 50x900 |
| Size of Frame (Inch) | 2 x 35-3/8 |
| Weight (kg) | 0.55 |
| Weight (lbs) | 1.21 |
-
Approval Information
For approval information, please refer to the below approval certificates.
