GRATING LINE COPENHAGEN 1000 - (697.004.100)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.004.100
EAN no.: 5705499119299
VVS no.: 155071110
RSK no.: 7121731
NRF no.: 3394769
LVI no.: 3304432
Size: 50x1000
GRATING LINE COPENHAGEN 1000

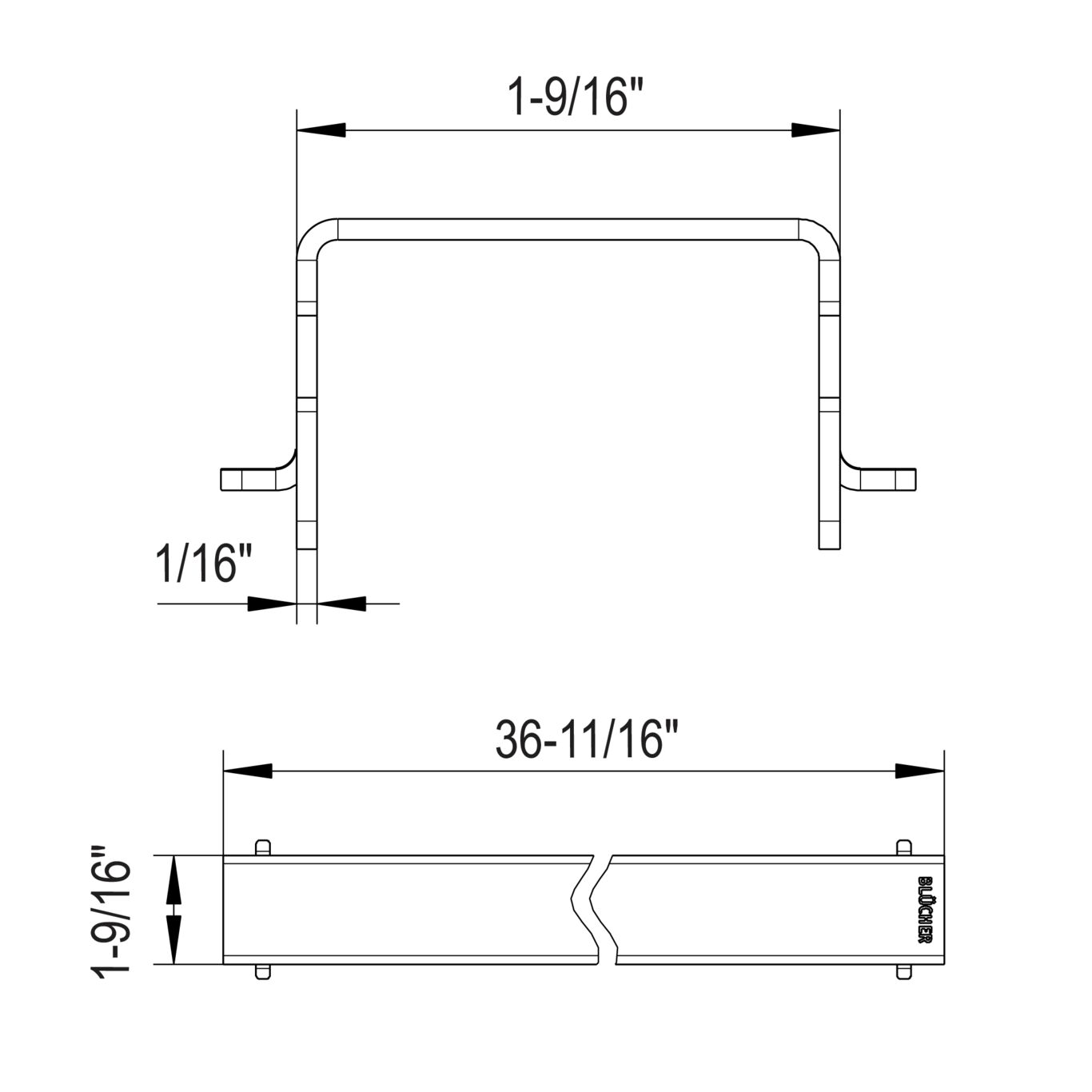

-Grating: 1-9/16 x 36-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.1 |
| Number of Screws | 0 |
| Size (mm) | 50x1000 |
| Size of Frame (Inch) | 2 x 39-3/8 |
| Weight (kg) | 0.67 |
| Weight (lbs) | 1.48 |
-
Approval Information
For approval information, please refer to the below approval certificates.
