GRATING LINE COPENHAGEN 900 - (697.004.090 B)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.004.090 B
EAN no.: 5705499139402
VVS no.: 155071209
Size: 50x900
GRATING LINE COPENHAGEN 900

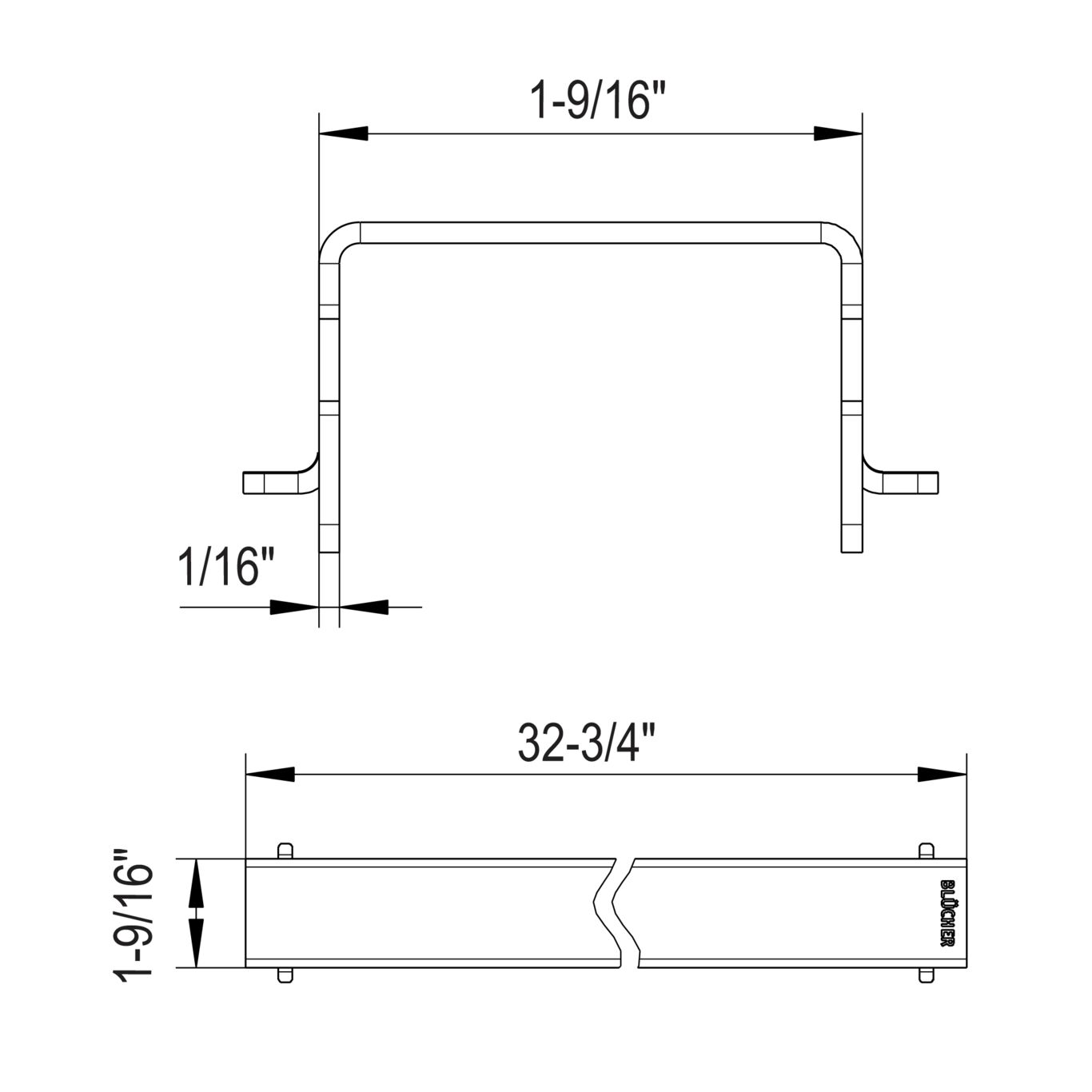

- Grating: 1-9/16 x 32-3/4 inch
- Colour: Black
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.1 |
| Shape | Rectangular |
| Size (mm) | 50x900 |
| Size of Frame (Inch) | 2 x 35-3/8 |
| Weight (kg) | 0.6 |
| Weight (lbs) | 1.32 |
-
Approval Information
For approval information, please refer to the below approval certificates.
