GRATING LINE COPENHAGEN VINYL 1000 - (697.104.100)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.104.100
EAN no.: 5705499122596
VVS no.: 155081110
RSK no.: 7121755
NRF no.: 3394796
LVI no.: 3304474
Size: 103x1000

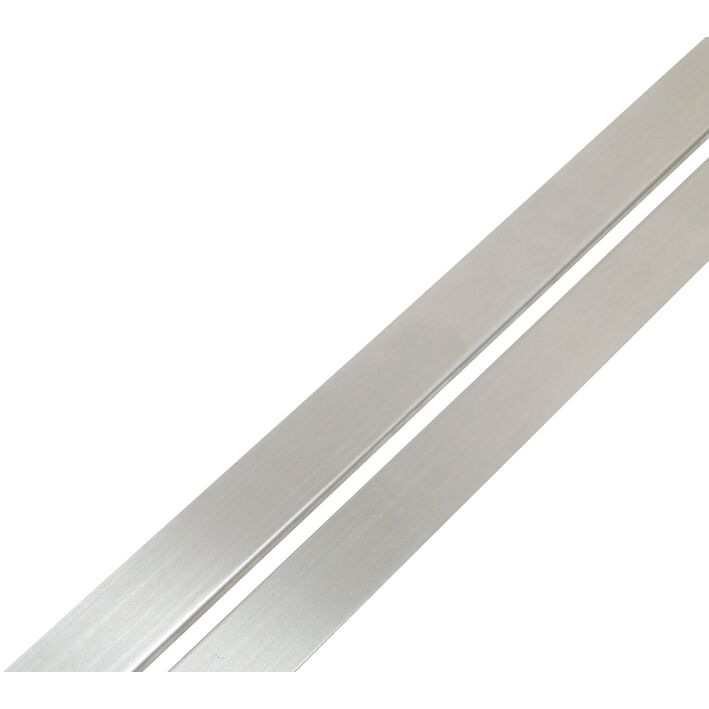

GRATING LINE COPENHAGEN VINYL 1000

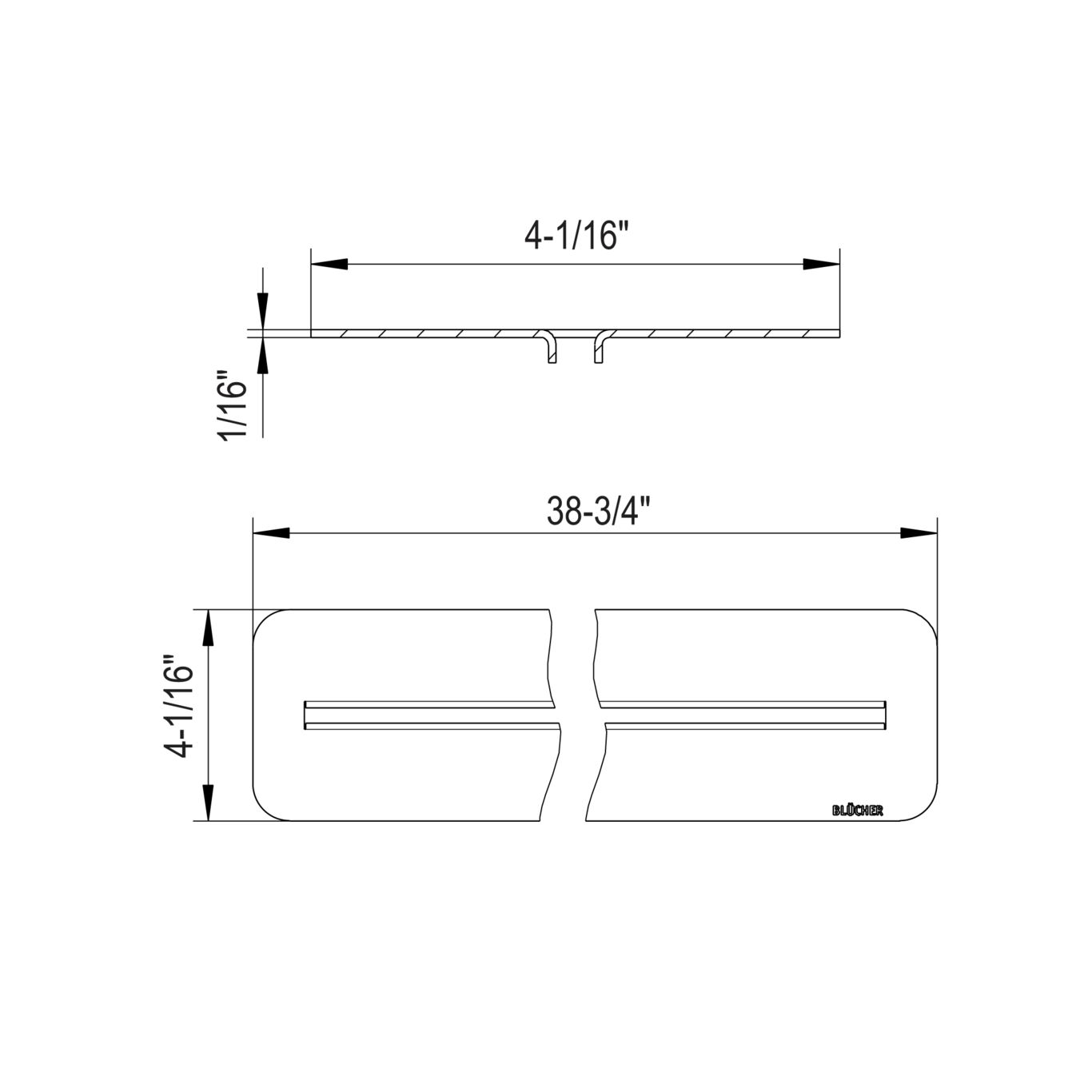

-Grating: 4-1/16 x 38-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.6 |
| Number of Screws | 0 |
| Size (mm) | 103x1000 |
| Size of Frame (Inch) | 4 x 39-3/8 |
| Weight (kg) | 1.2 |
| Weight (lbs) | 2.65 |
-
Approval Information
For approval information, please refer to the below approval certificates.
