GRATING LINE OSLO 1000 - (697.008.100)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.008.100
EAN no.: 5705499122763
VVS no.: 155074110
RSK no.: 7121751
NRF no.: 3394792
LVI no.: 3304452
Size: 50x1000

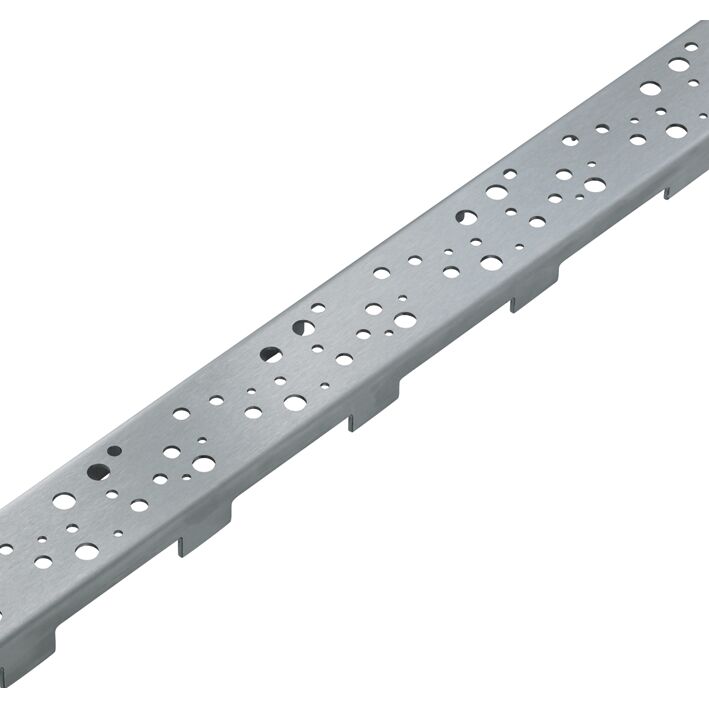

GRATING LINE OSLO 1000

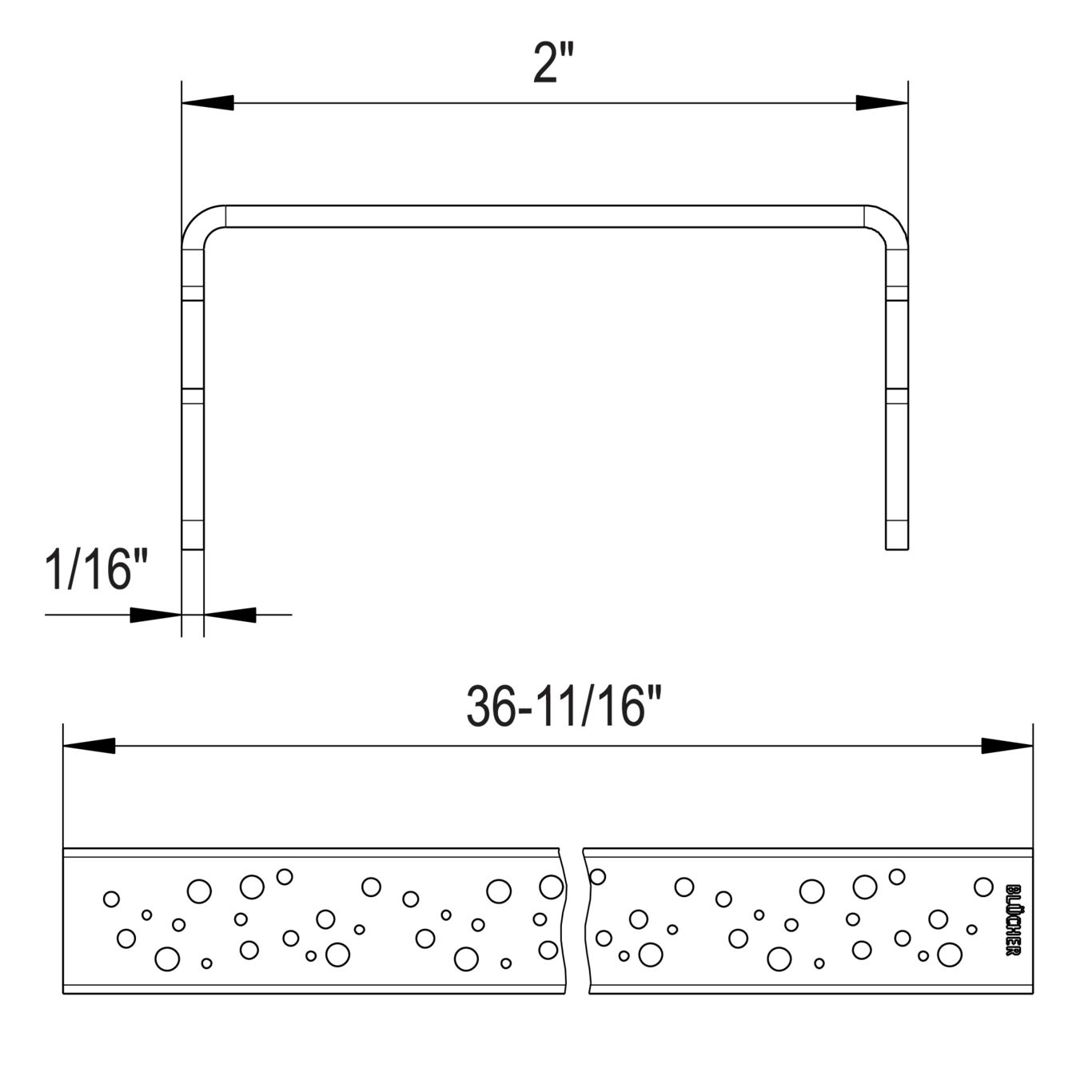

-Grating: 2 x 36-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.5 |
| Number of Screws | 0 |
| Size (mm) | 50x1000 |
| Size of Frame (Inch) | 2 x 39-3/8 |
| Weight (kg) | 0.73 |
| Weight (lbs) | 1.61 |
-
Approval Information
For approval information, please refer to the below approval certificates.
