GRATING LINE TOKYO 800 - (697.009.080)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.009.080
EAN no.: 5705499127003
VVS no.: 155076108
RSK no.: 7121997
NRF no.: 3394723
LVI no.: 3304466
Size: 50x800
GRATING LINE TOKYO 800

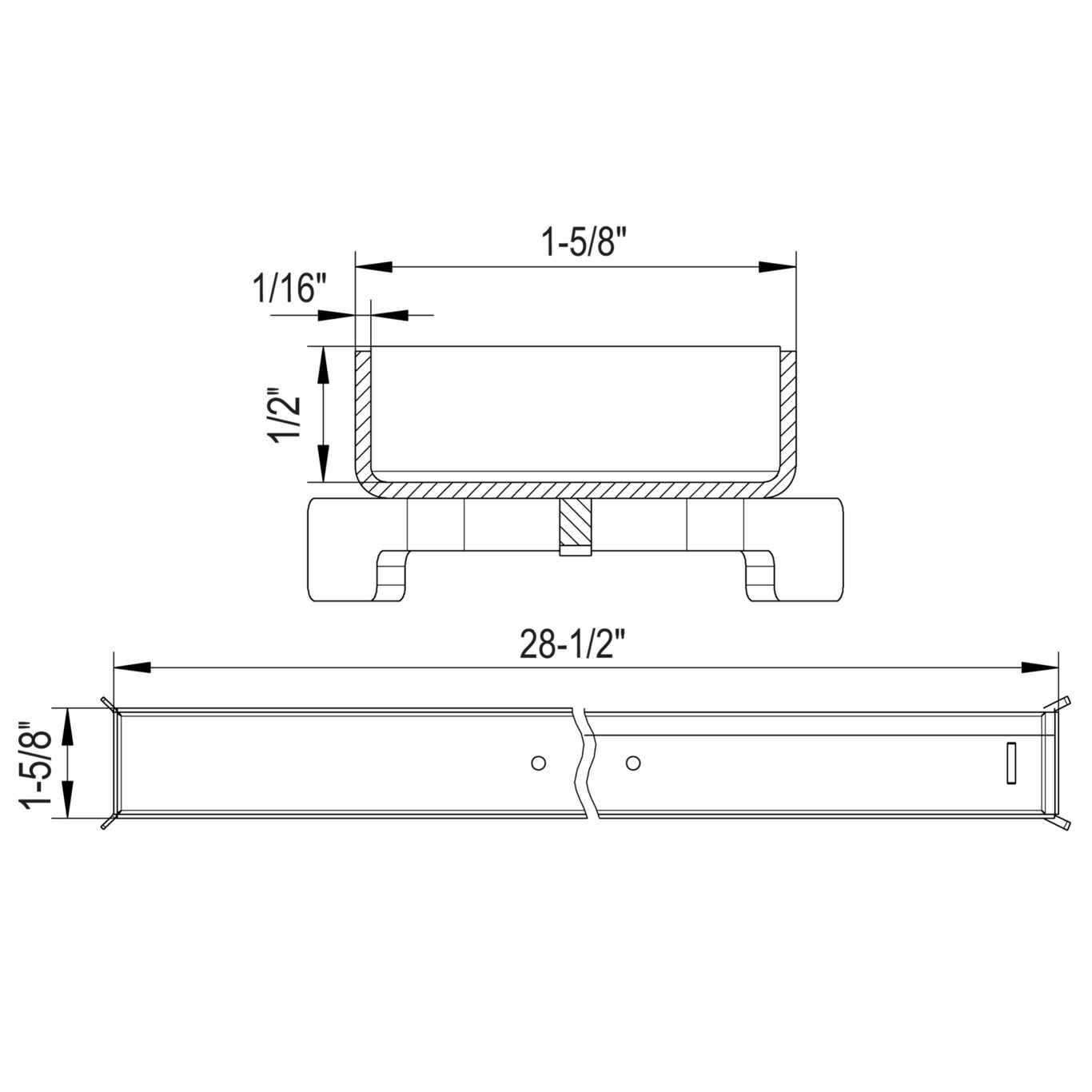

-Grating: 1-5/8 x 28-1/2 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.8 |
| Number of Screws | 0 |
| Size (mm) | 50x800 |
| Size of Frame (Inch) | 2 x 31-1/2 |
| Weight (kg) | 0.6 |
| Weight (lbs) | 1.32 |
-
Approval Information
For approval information, please refer to the below approval certificates.
