GRATING CIRCLE FOR CAST IRON DRAIN - (651.155.011)
×
![]()
Part Of the Series: Spare parts-old-drain-grating
Type no.: 651.155.011
EAN no.: 5705499103076
VVS no.: 153812155
NRF no.: 3395136
Size: Ø155

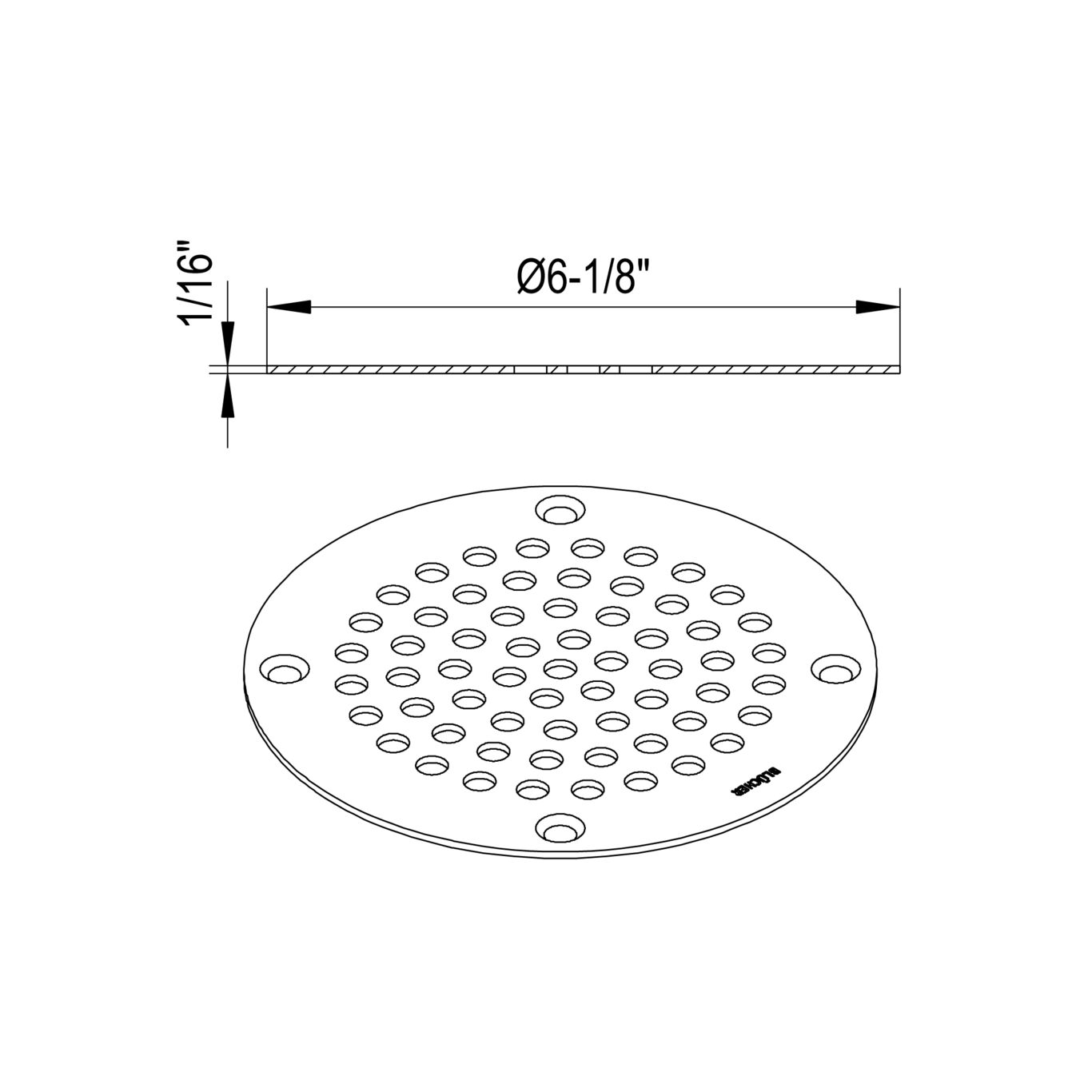

GRATING CIRCLE FOR CAST IRON DRAIN
-With screw lock
-Grating: Ø6-1/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 2 |
| Number of Screws | 4 |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 0.24 |
| Weight (lbs) | 0.53 |
-
Approval Information
For approval information, please refer to the below approval certificates.
