MEMBRANE CLAMPING FLANGE - (325.302.000 S)
×
![]()
Part Of the Series: Intermediate section
Type no.: 325.302.000 S
EAN no.: 5705499107937
VVS no.: 153019600
LVI no.: 3303862

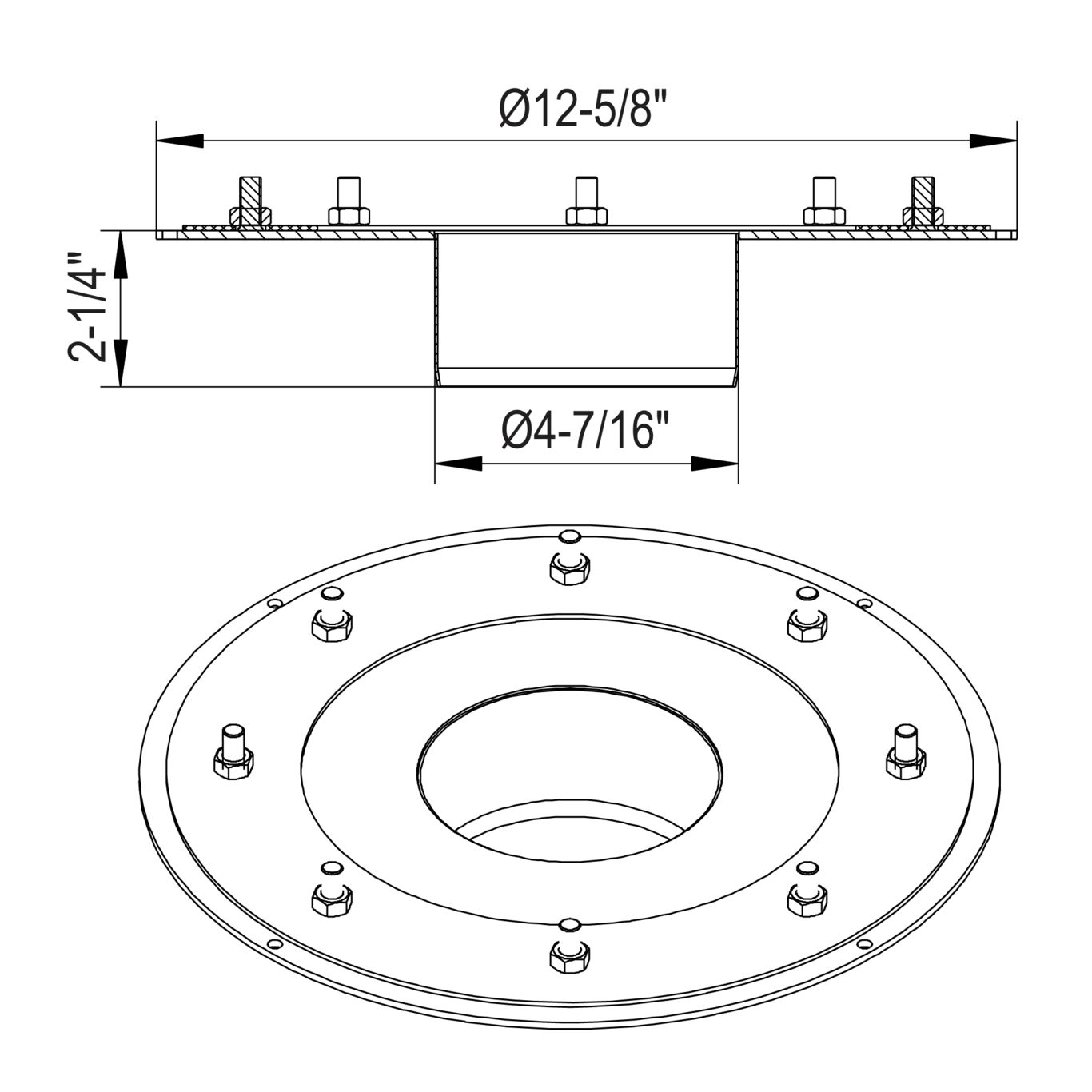

MEMBRANE CLAMPING FLANGE
-For lower part
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic / Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 58 |
| Outlet dia. (mm) | 113 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.5 |
| Weight (lbs) | 1.1 |
-
Approval Information
For approval information, please refer to the below approval certificates.
