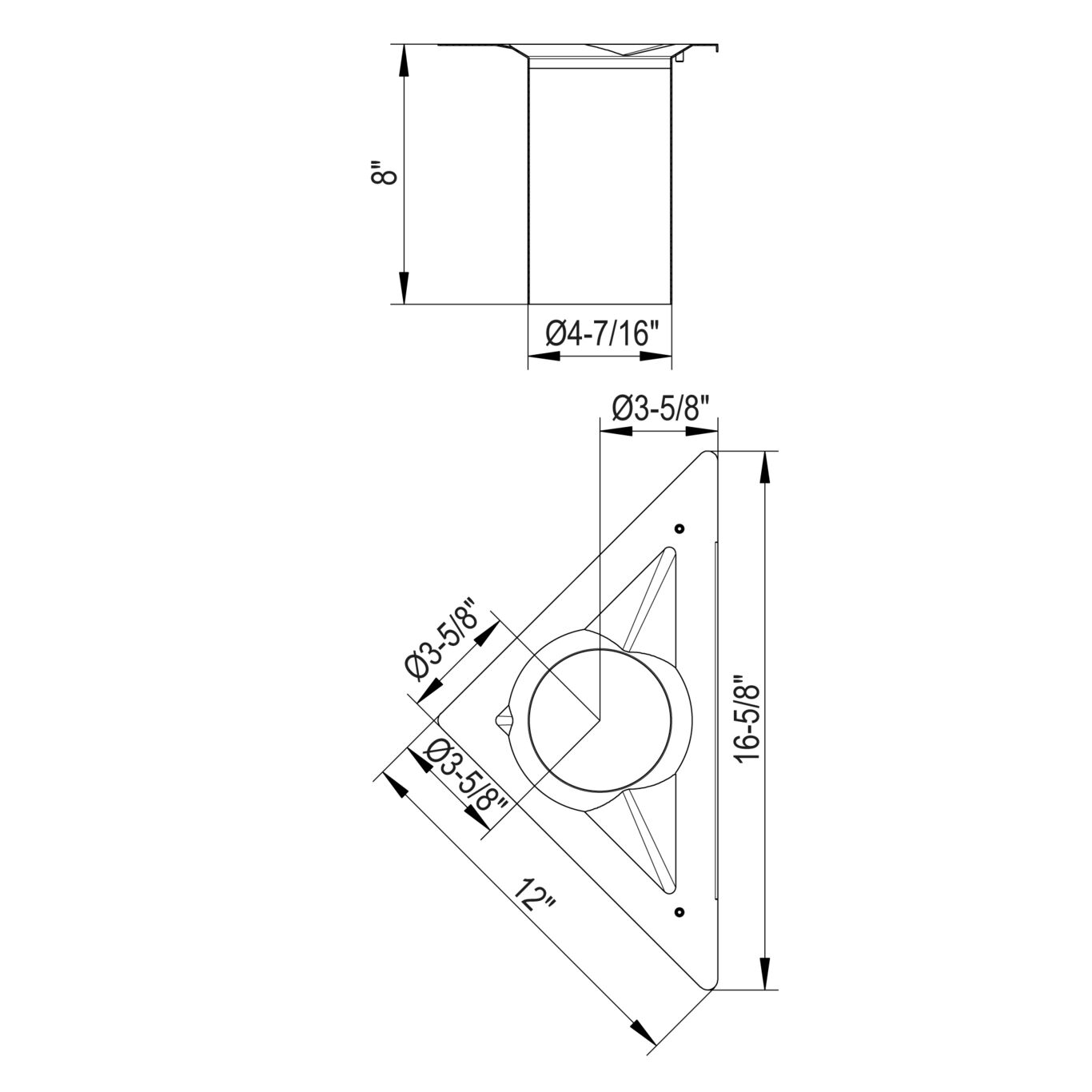

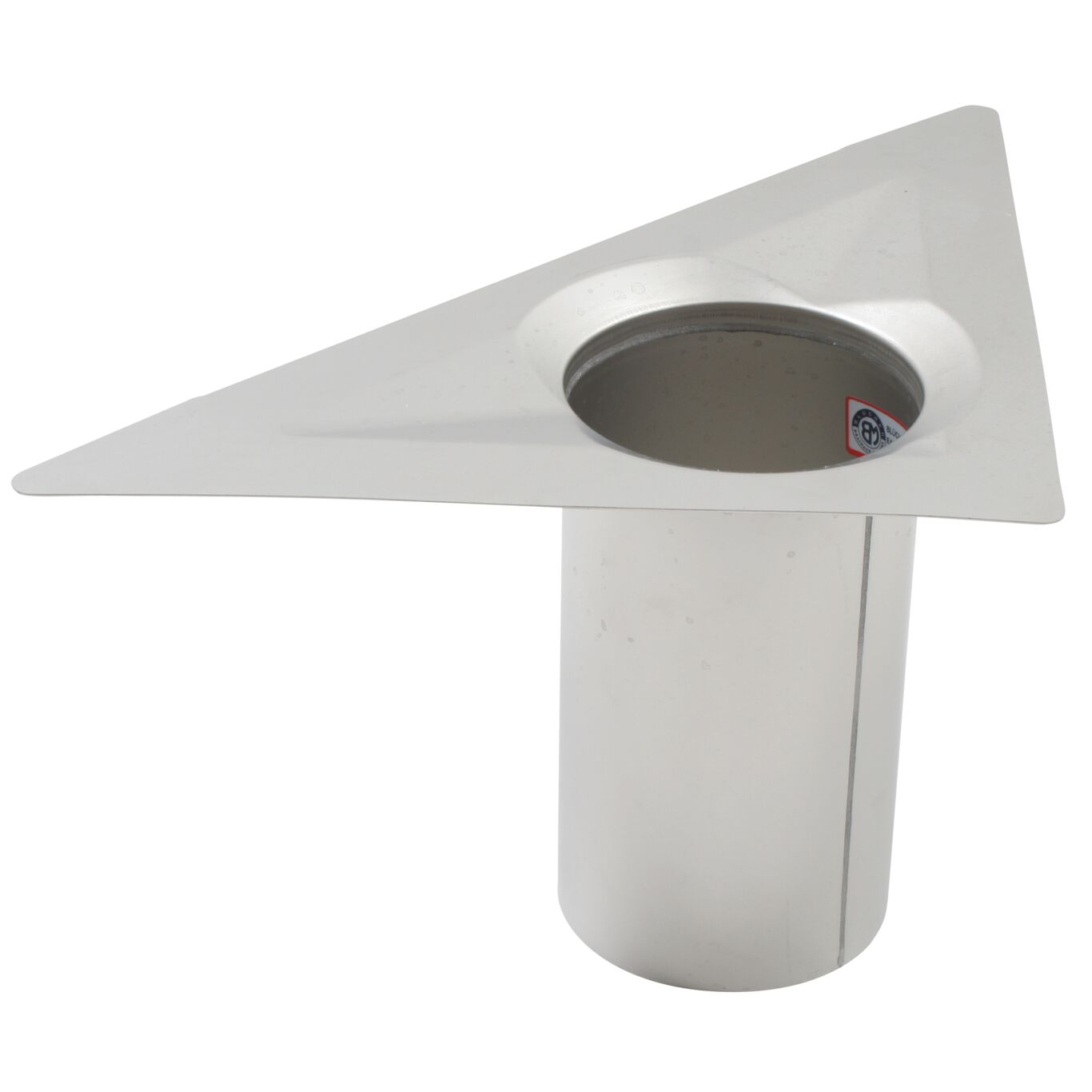

TRIANGULAR FLANGE FOR LIQUID MEMBRAN, LONG - (326.003.001)
×
![]()
Part Of the Series: Intermediate section
Type no.: 326.003.001
EAN no.: 5705499121896
VVS no.: 153305820
TRIANGULAR FLANGE FOR LIQUID MEMBRAN, LONG
-Flange: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 204 |
| Outlet dia. (mm) | 113 |
| Outlet Diameter (Inch) | 4 |
| Shape | Triangular |
| Weight (kg) | 0.44 |
| Weight (lbs) | 0.97 |
-
Approval Information
For approval information, please refer to the below approval certificates.
