MOUNTING SET SQUARE COPENHAGEN - (620.200.015)
×
![]()
Part Of the Series: MULTI top-145
Type no.: 620.200.015
EAN no.: 5705499118711
RSK no.: 7122029
NRF no.: 3394872
Size: 145x145

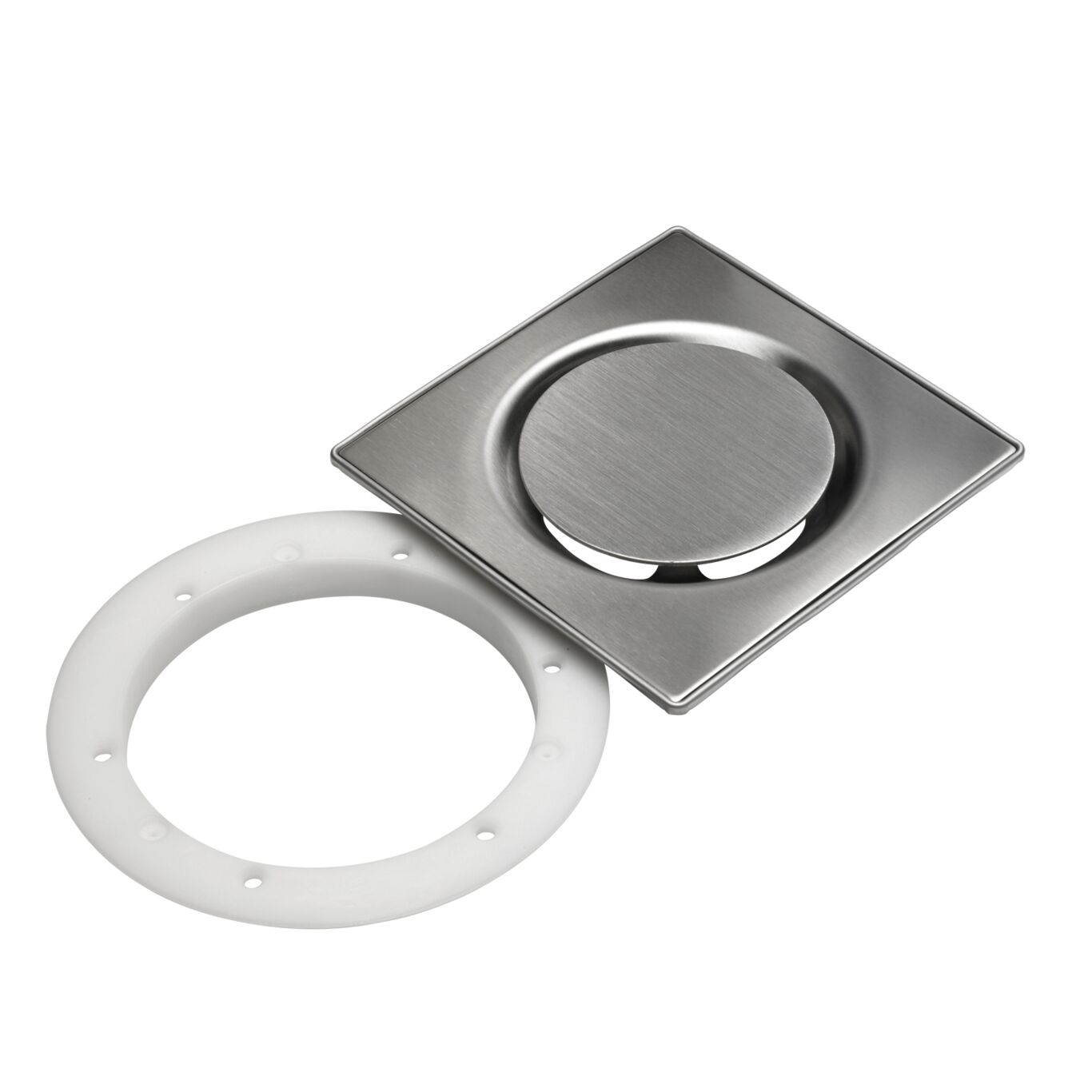

MOUNTING SET SQUARE COPENHAGEN
-With clamping ring
-Floor: concrete and tiled
-Frame: 5-3/4 x 5-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 16 |
| Number of Screws | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 145x145 |
| Size of Frame (Inch) | 5-3/4 x 5-3/4 |
| Weight (kg) | 0.62 |
| Weight (lbs) | 1.37 |
-
Approval Information
For approval information, please refer to the below approval certificates.
