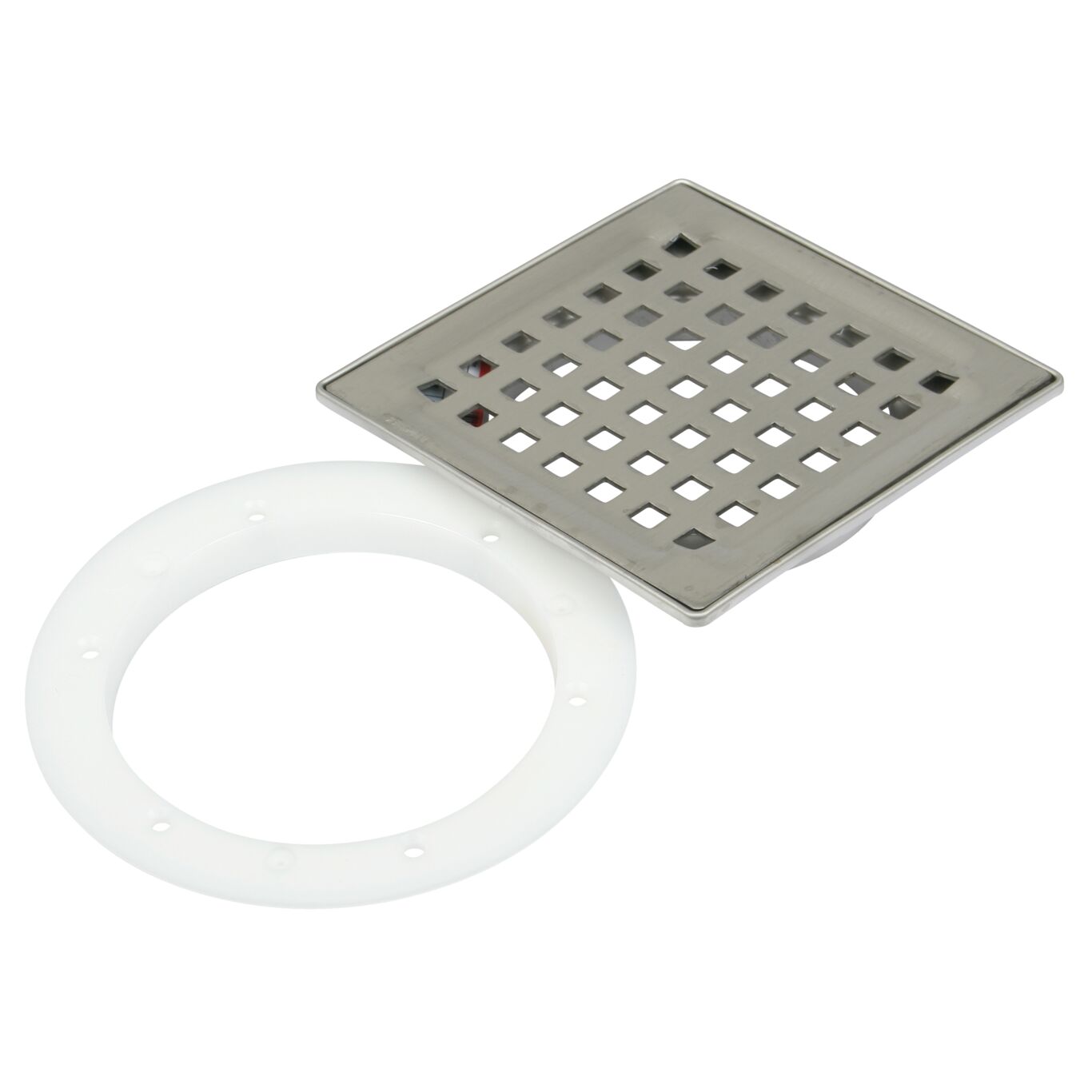

MOUNTING SET SQUARE VIENNA - (620.200.017)

Part Of the Series: MULTI top-145

Type no.: 620.200.017

EAN no.: 5705499123517

RSK no.: 7122078

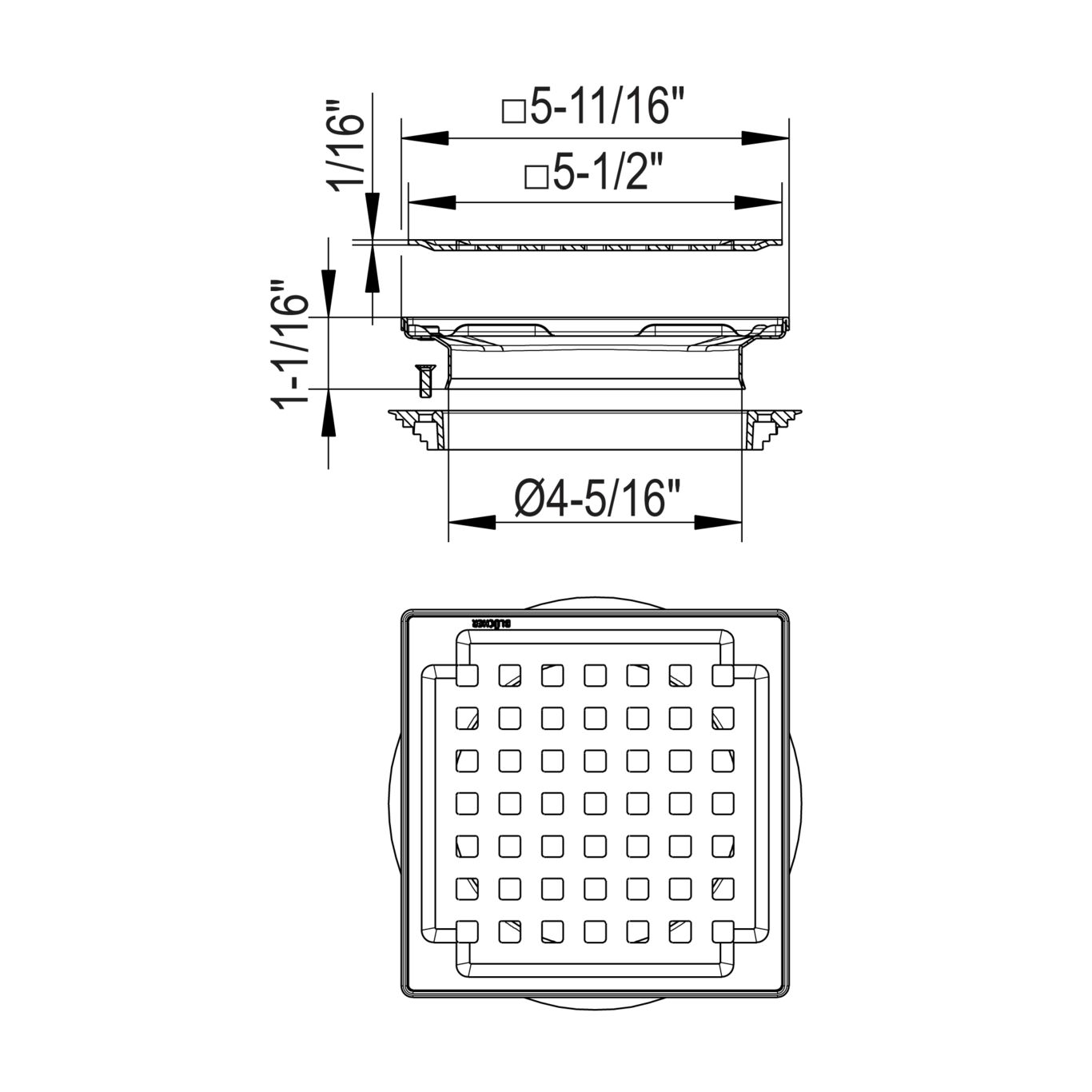

Size: 145x145


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 27
Number of Screws 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 0.54
Weight (lbs) 1.19
