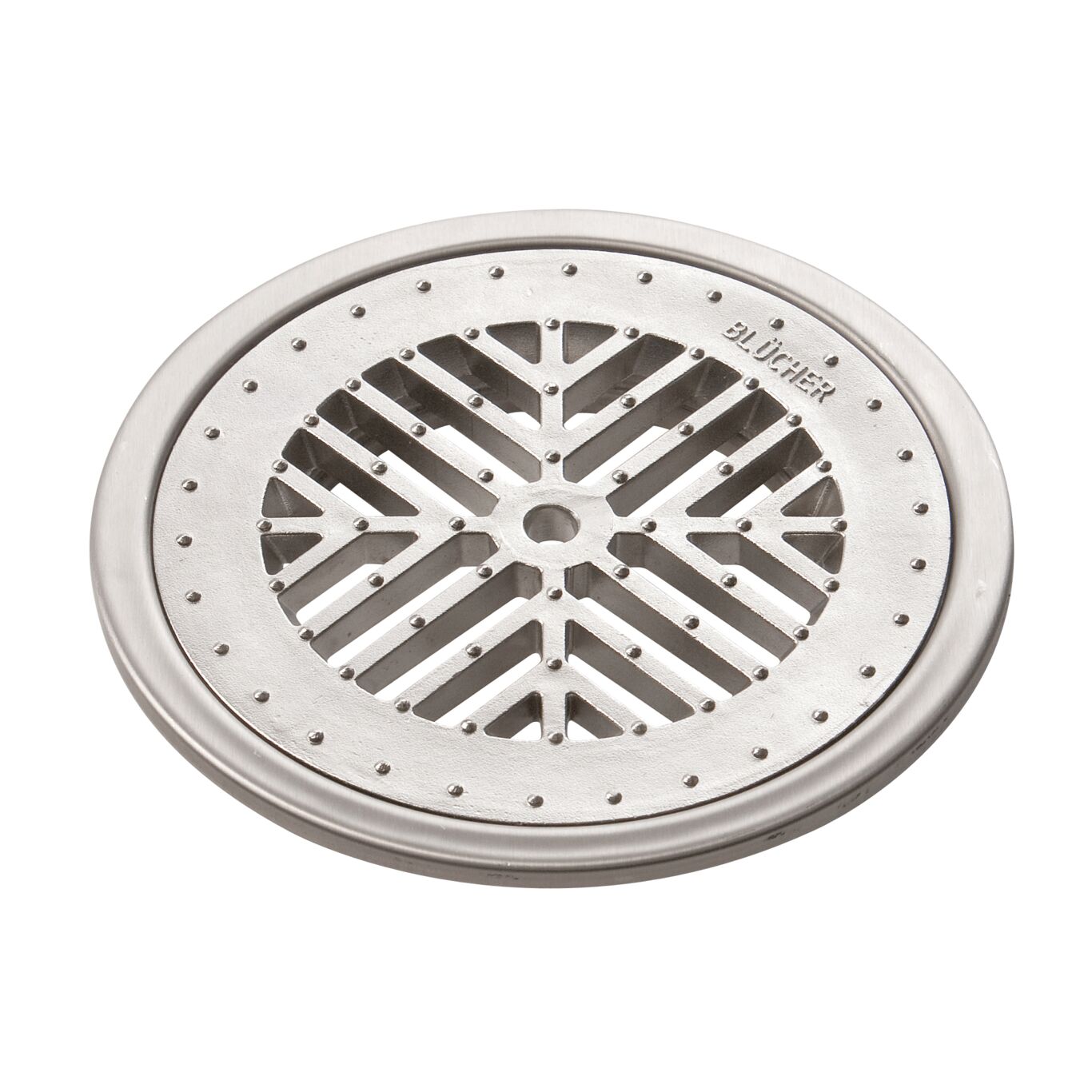

MOUNTING SET CIRCLE HYGIENIC-PRO - (620.300.044)
×
![]()
Part Of the Series: MULTI top-180
Type no.: 620.300.044
EAN no.: 5705499129311
RSK no.: 7122116
Size: Ø180
MOUNTING SET CIRCLE HYGIENIC-PRO
-With clamping ring
-Floor: concrete and tiled
-Frame: 7-1/8 x 7-1/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Resin |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (3000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø180 |
| Size of Frame (Inch) | Ø7-1/8 |
| Weight (kg) | 0.83 |
| Weight (lbs) | 1.83 |
-
Approval Information
For approval information, please refer to the below approval certificates.
