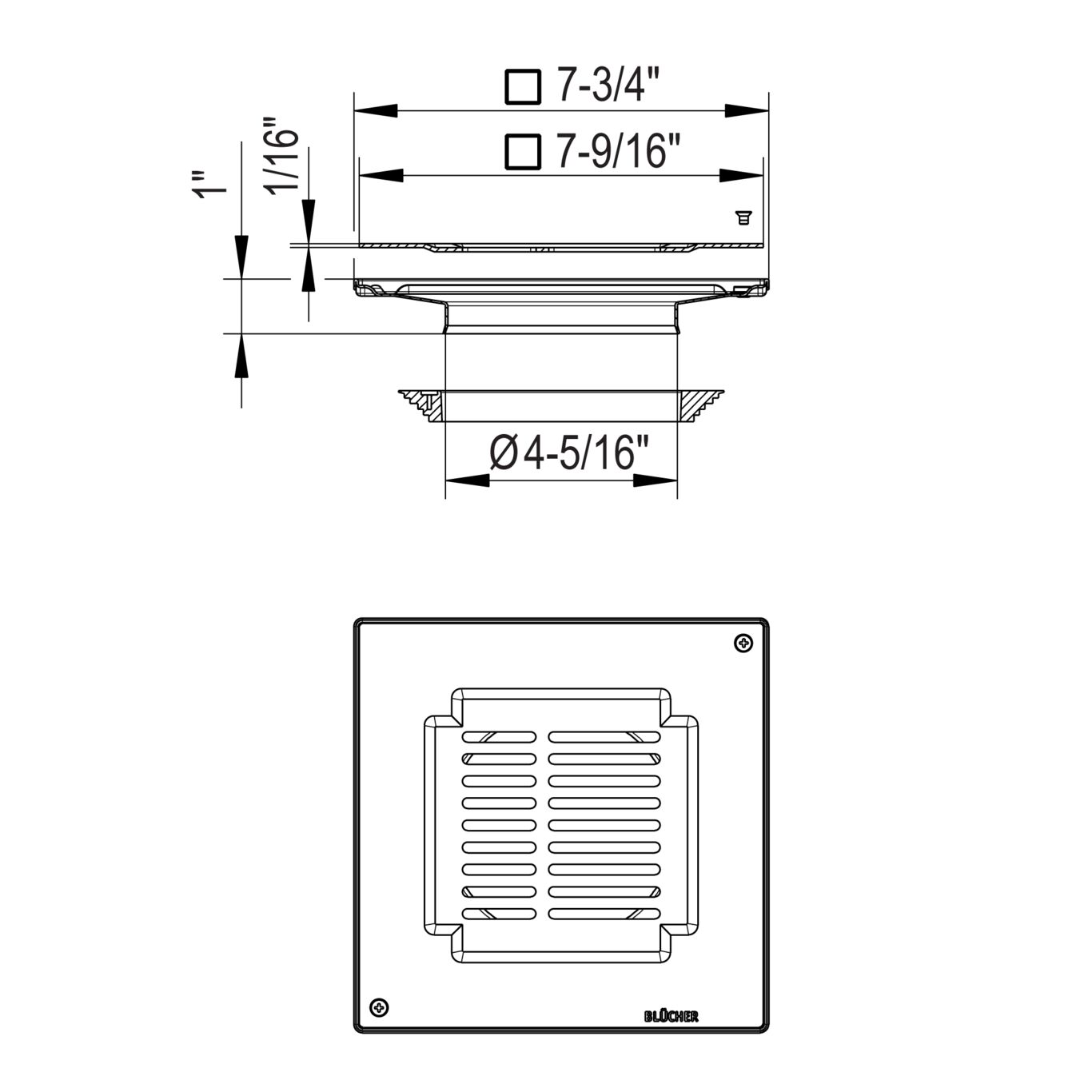

MOUNTING SET SQUARE DETROIT - (650.200.105)

Part Of the Series: MULTI top-200

Type no.: 650.200.105

EAN no.: 5705499127140

RSK no.: 7122051

NRF no.: 3394883

LVI no.: 3304134

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 26
Number of Screws 2
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 0.95
Weight (lbs) 2.09
