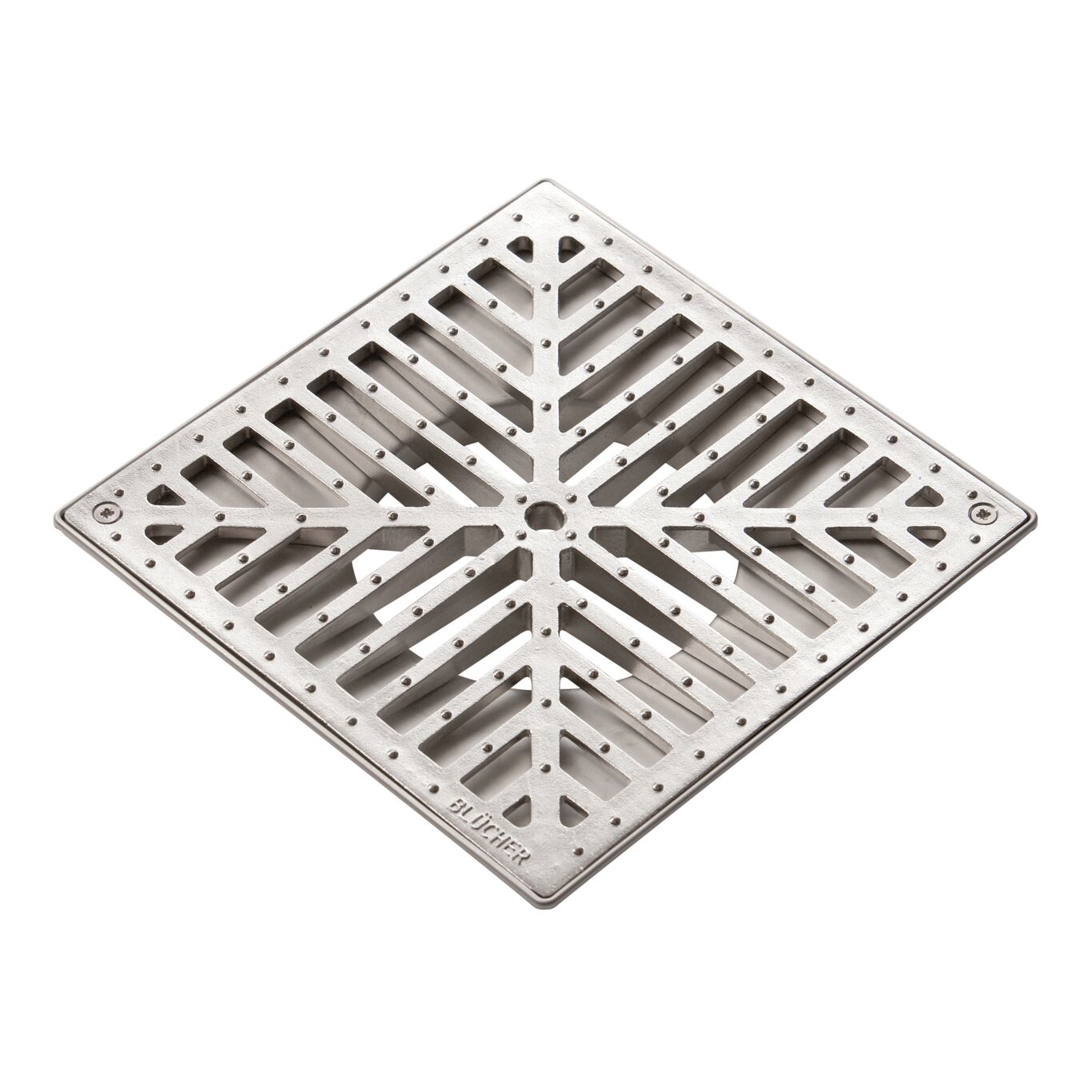

MOUNTING SET SQUARE HYGIENIC-PRO - (650.200.107)
×
![]()
Part Of the Series: MULTI top-200
Type no.: 650.200.107
EAN no.: 5705499129298
RSK no.: 7122118
NRF no.: 3394502
LVI no.: 3304146
Size: 200x200
MOUNTING SET SQUARE HYGIENIC-PRO
-With screw lock and clamping ring
-Floor: concrete and tiled
-Frame: 7-3/4 x 7-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (3000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 1.43 |
| Weight (lbs) | 3.15 |
-
Approval Information
For approval information, please refer to the below approval certificates.
