MOUNTING SET SQUARE VIENNA - (650.201.101)
Part Of the Series: MULTI top-200
Type no.: 650.201.101
EAN no.: 5705499127089
RSK no.: 7122054
NRF no.: 3394866
LVI no.: 3304137
Size: 200x200

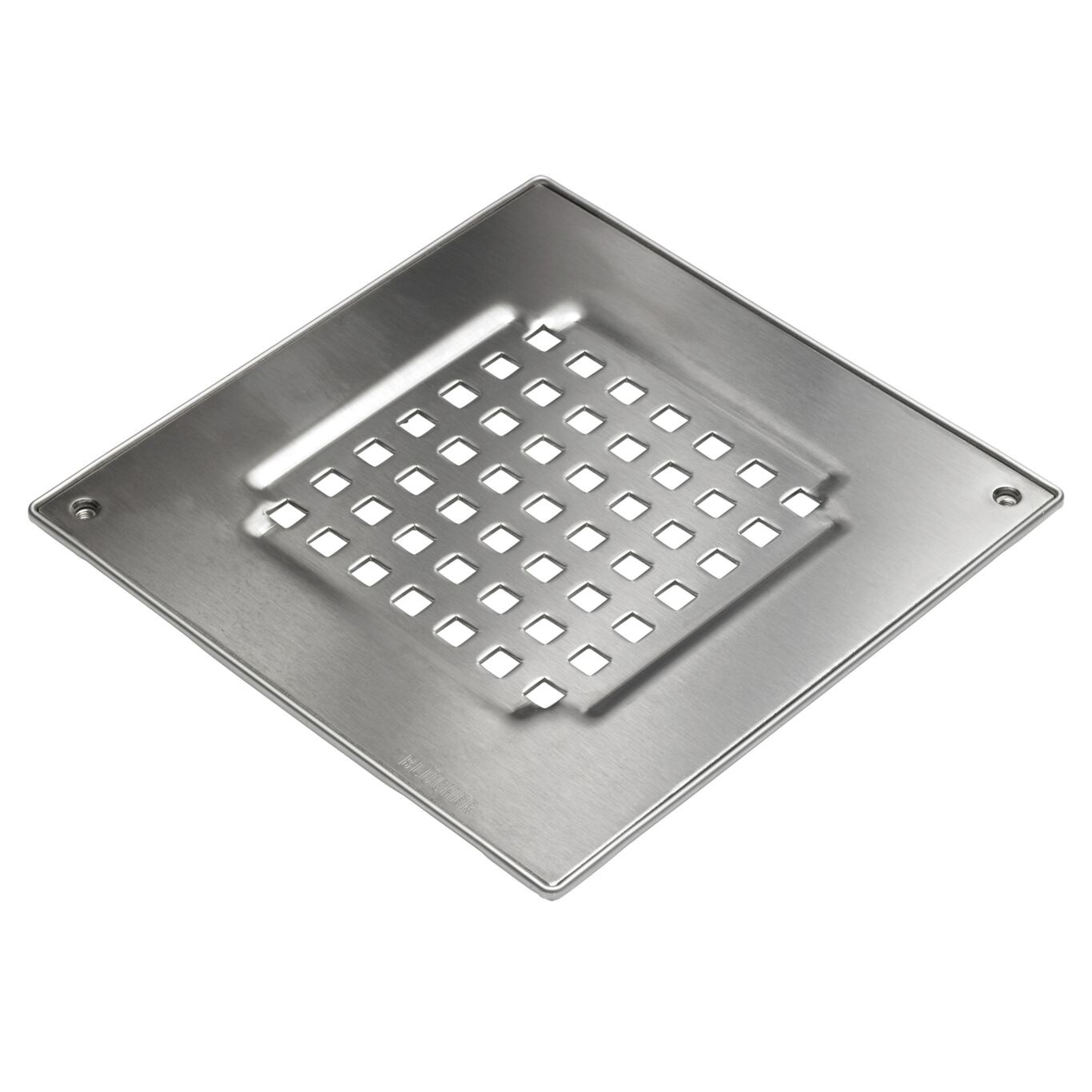

MOUNTING SET SQUARE VIENNA
-With screw lock, no clamping ring
-Floor: concrete and tiled

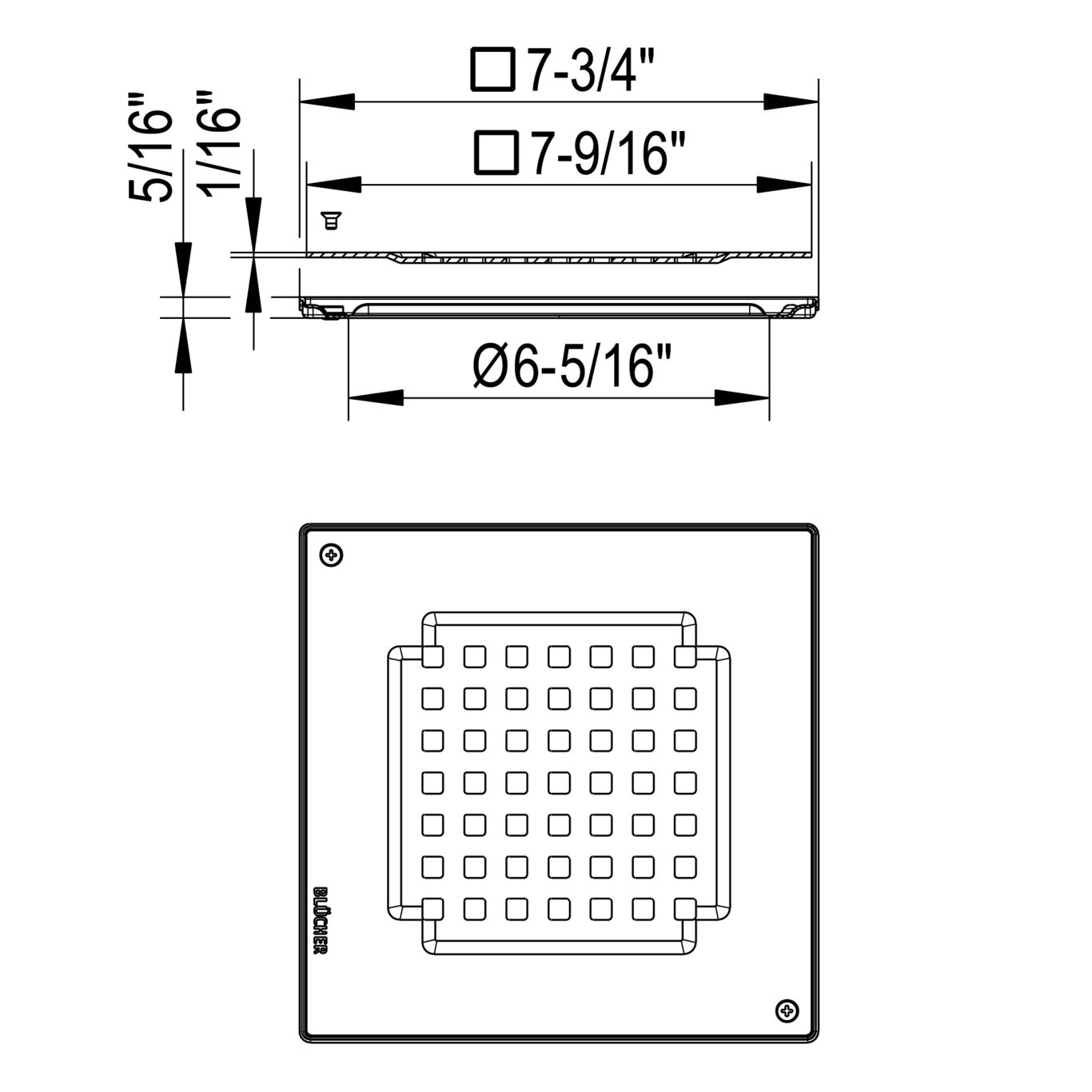

-Frame: 7-3/4 x 7-3/4 inch
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load class EN1253(kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 8 |
Number of Screws | 2 |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Shape | Square |
Size (mm) | 200x200 |
Size of Frame (Inch) | 7-7/8 x 7-7/8 |
Weight (kg) | 0.74 |
Weight (lbs) | 1.63 |
-
Approval Information
For approval information, please refer to the below approval certificates.
