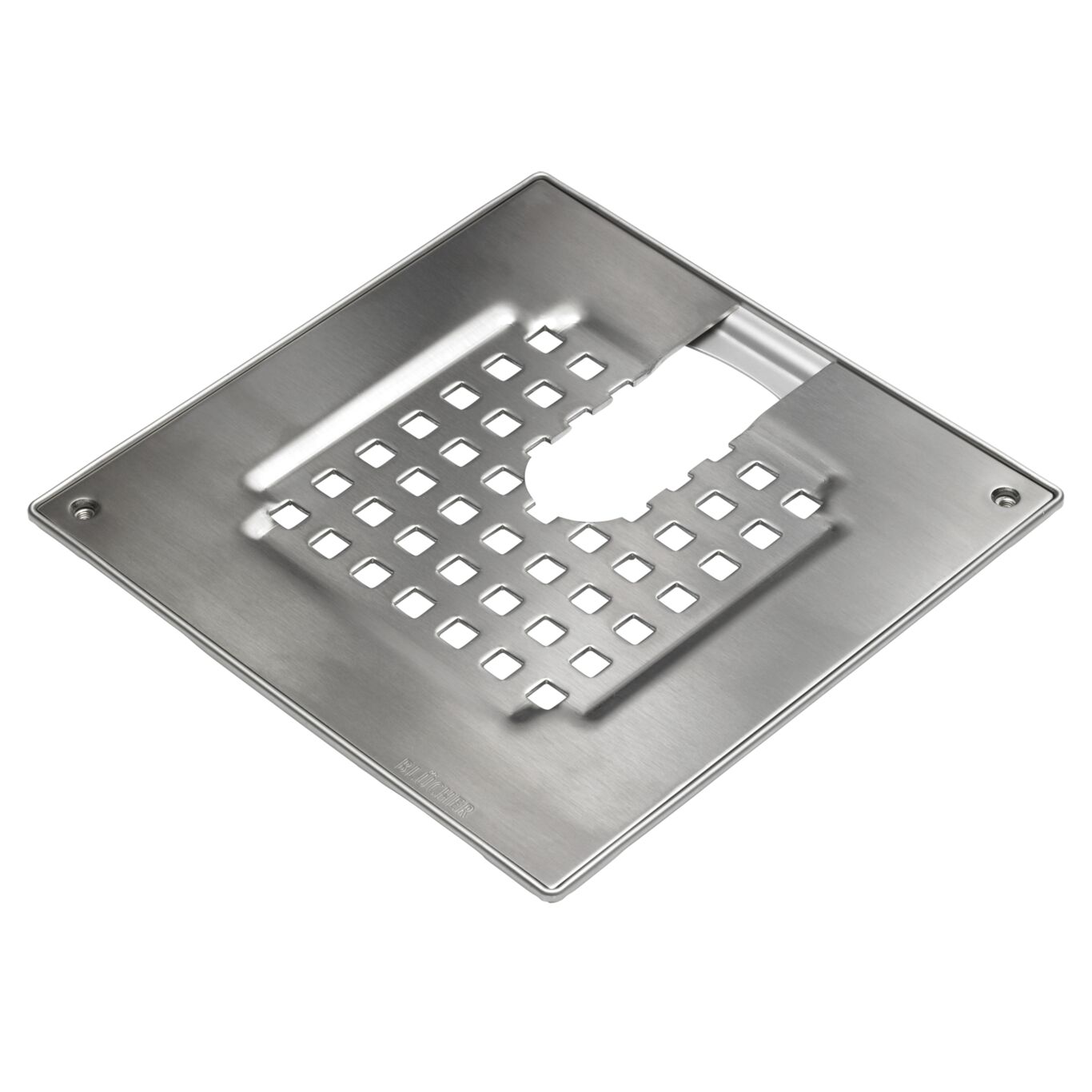

MOUNTING SET SQUARE VIENNA CUT C - (650.201.101 C)

Part Of the Series: MULTI top-200

Type no.: 650.201.101 C

EAN no.: 5705499127096

RSK no.: 7122055

LVI no.: 3304138

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 8
Number of Screws 2
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 0.69
Weight (lbs) 1.52
