MOUNTING SET LINE STOCKHOLM 1000 - (650.300.100)

Part Of the Series: MULTI top-Channel

Type no.: 650.300.100

EAN no.: 5705499135381

RSK no.: 7123279

NRF no.: 3394345

LVI no.: 3304184

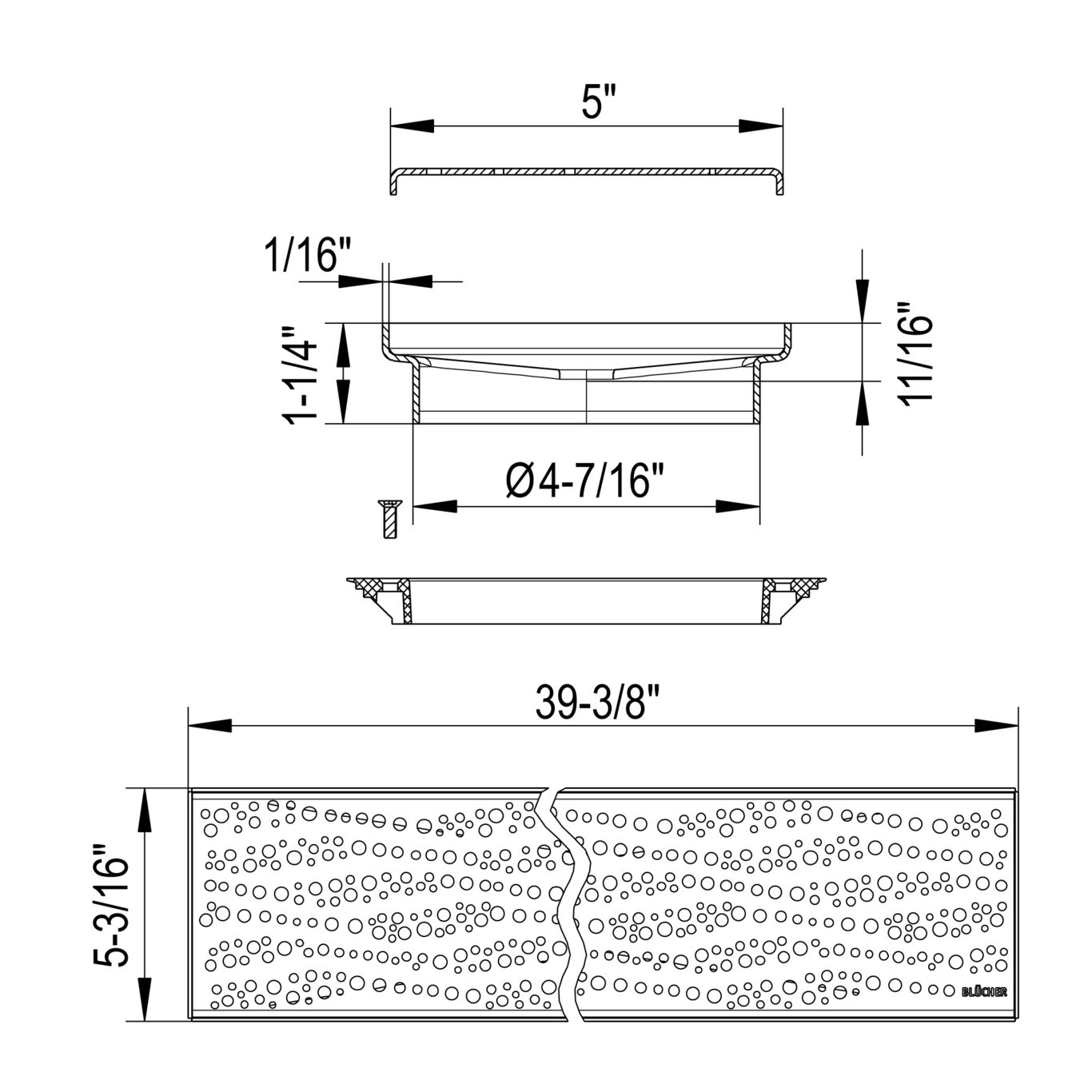

Size: 130x1000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3 (300)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 32
Outlet dia. (mm) 112
Outlet Diameter (Inch) 4
Shape Rectangular
Size (mm) 130x1000
Size of Frame (Inch) 5-1/8 x 39-3/8
Weight (kg) 4.13
Weight (lbs) 9.11
