MOUNTING SET LINE TOKYO 800 - (650.350.080)
×
![]()
Part Of the Series: MULTI top-Channel
Type no.: 650.350.080
EAN no.: 5705499135404
RSK no.: 7129524
NRF no.: 3394347
LVI no.: 3304186

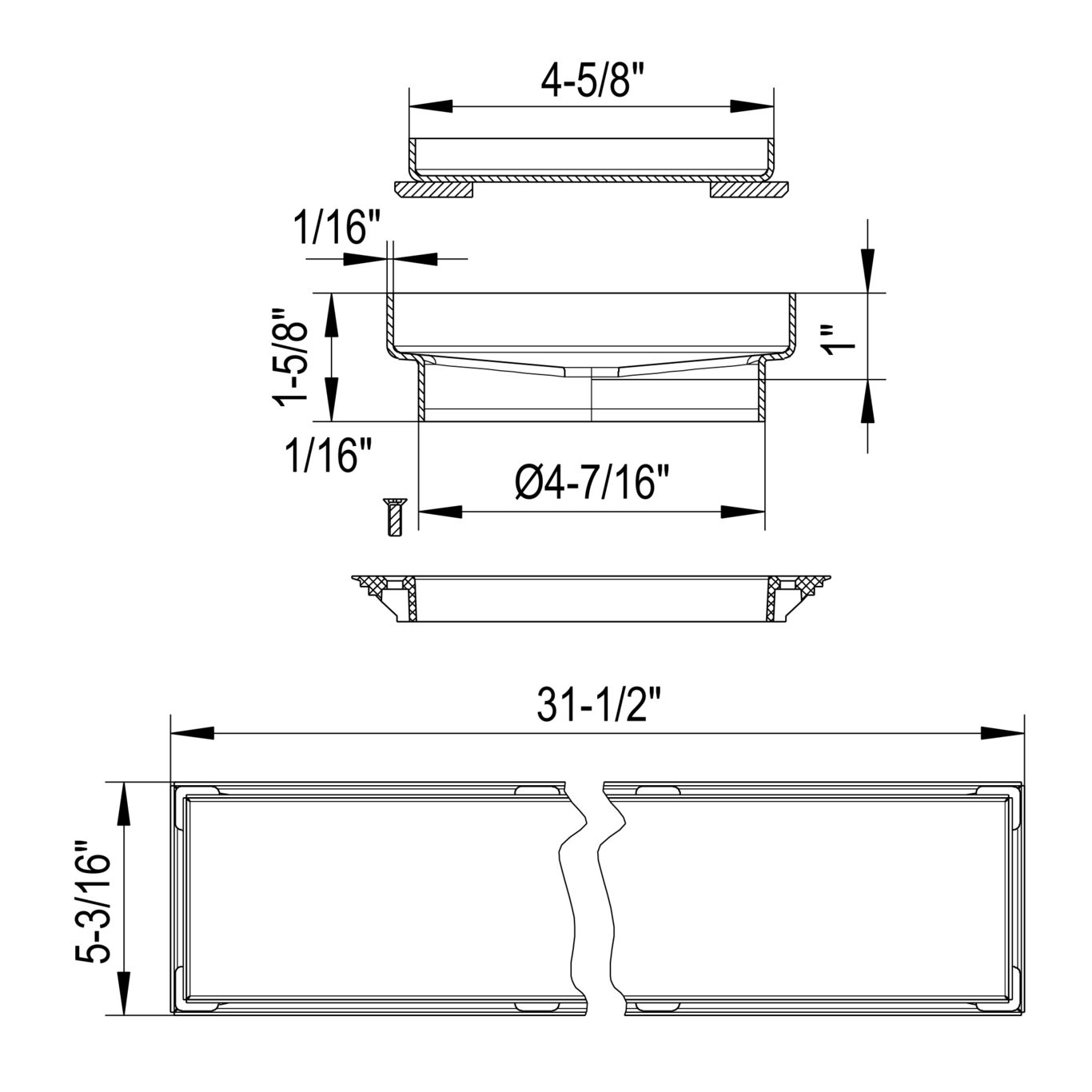

Size: 130x800
MOUNTING SET LINE TOKYO 800
-With clamping ring
-Floor: concrete and tiled
-Frame: rectangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 (300) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 41 |
| Outlet dia. (mm) | 112 |
| Outlet Diameter (Inch) | 4 |
| Shape | Rectangular |
| Size (mm) | 130x800 |
| Size of Frame (Inch) | 5-1/8 x 31-1/2 |
| Weight (kg) | 4.16 |
| Weight (lbs) | 9.17 |
