MOUNTING SET LINE TOKYO 900 - (650.350.090)

Part Of the Series: MULTI top-Channel

Type no.: 650.350.090

EAN no.: 5705499135411

RSK no.: 7129525

NRF no.: 3394348

LVI no.: 3304187

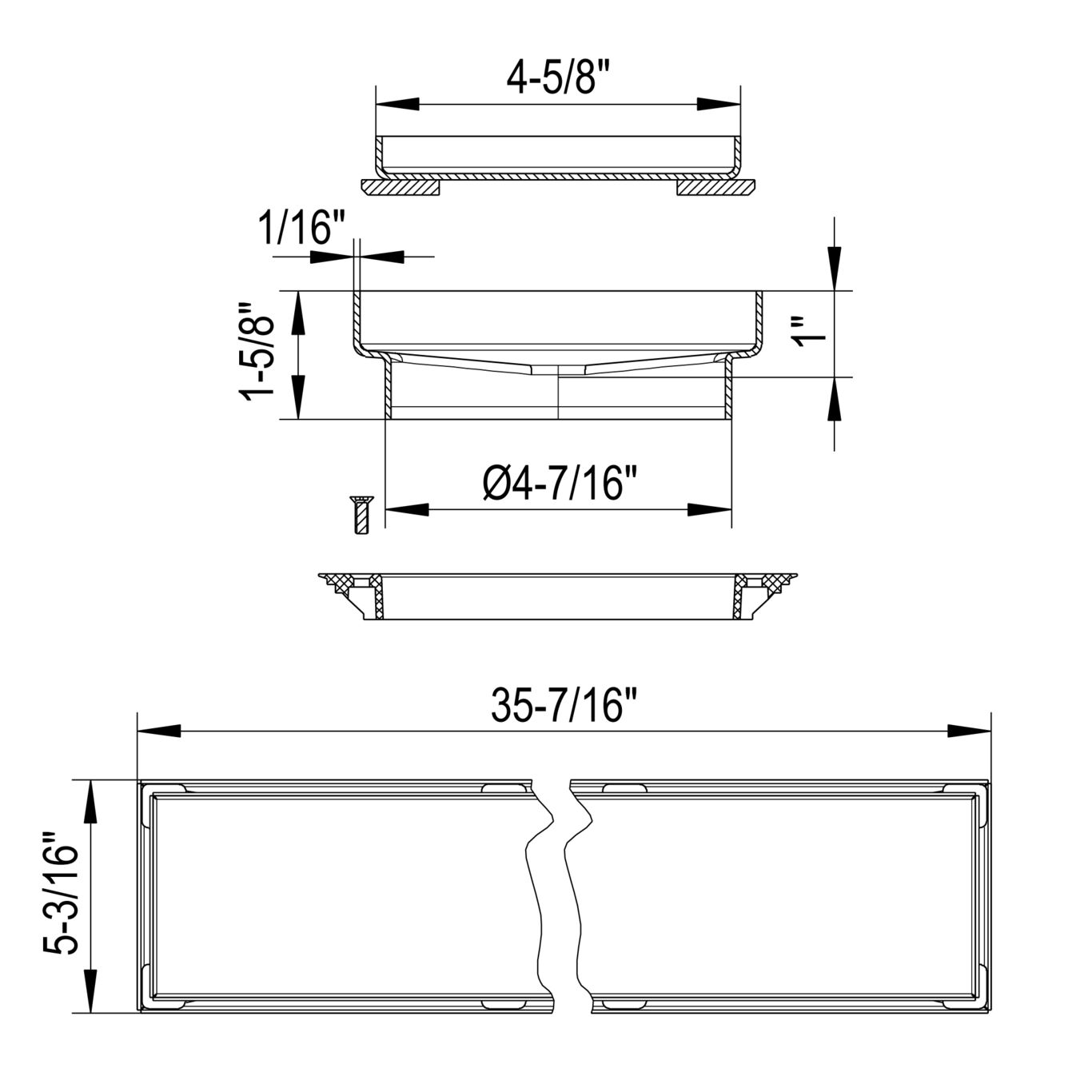

Size: 130x900


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3 (300)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 41
Outlet dia. (mm) 112
Outlet Diameter (Inch) 4
Shape Rectangular
Size (mm) 130x900
Size of Frame (Inch) 5-1/8 x 35-3/8
Weight (kg) 4.65
Weight (lbs) 10.25
