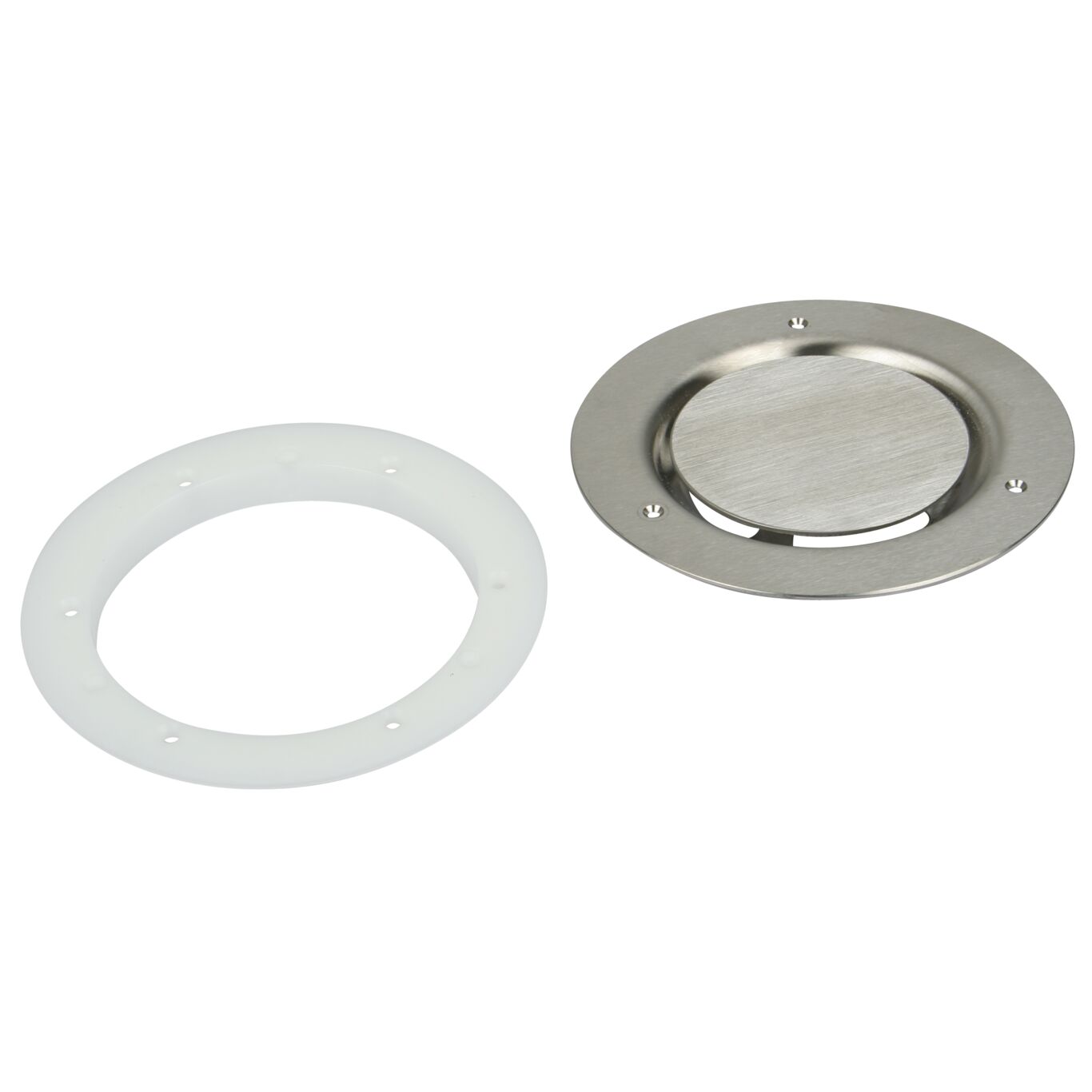

MOUNTING SET CIRCLE COPENHAGEN - (620.300.040)

Part Of the Series: MULTI top-Vinyl-155

Type no.: 620.300.040

EAN no.: 5705499127300

LVI no.: 3303576

Size: Ø155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Vinyl
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 15
Number of Screws 3
Shape Round

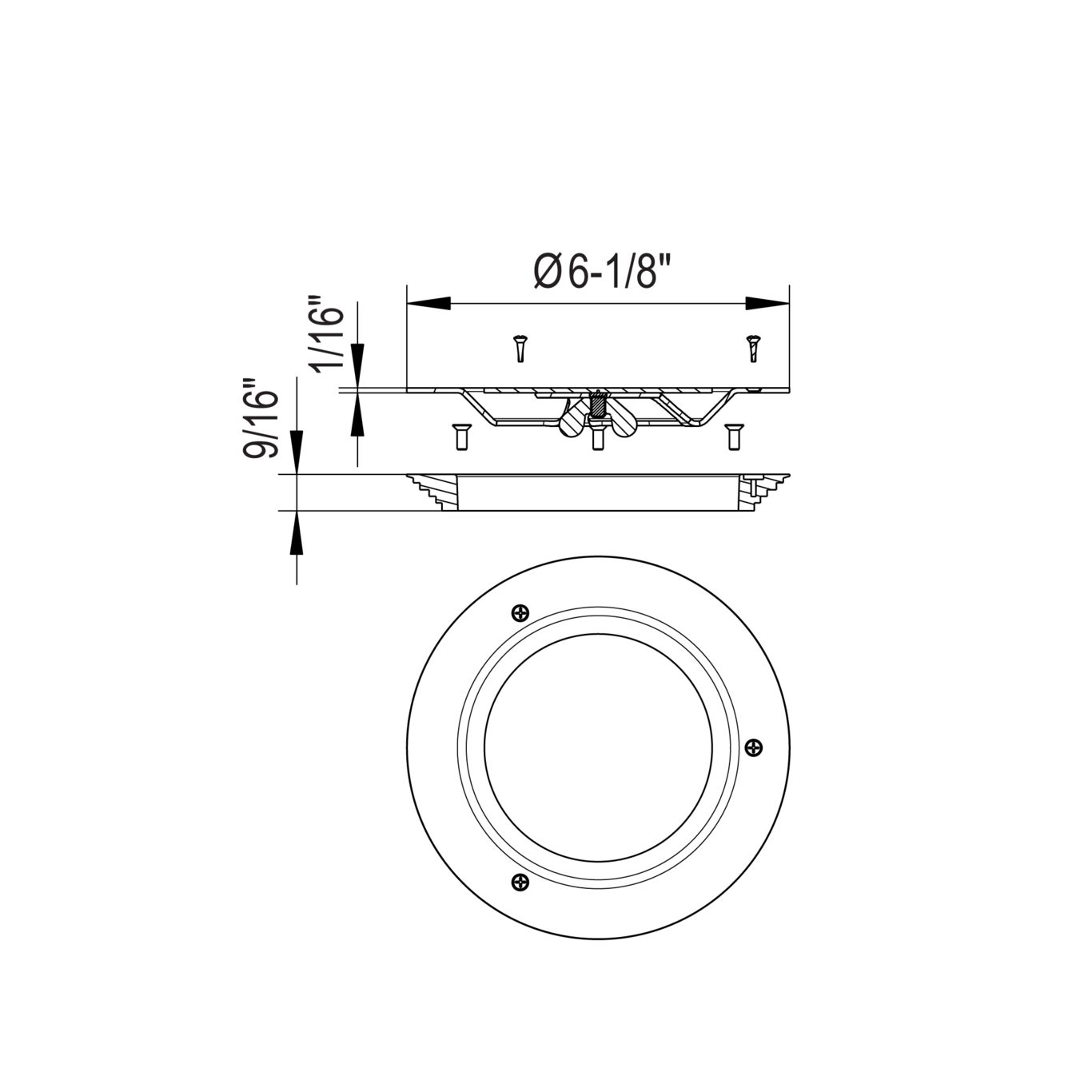

Size (mm) Ø155
Size of Frame (Inch) Ø6-1/8
Weight (kg) 0.49
Weight (lbs) 1.08
