MOUNTING SET CIRCLE VIENNA - (620.300.046)
×
![]()
Part Of the Series: MULTI top-Vinyl-155
Type no.: 620.300.046
EAN no.: 5705499138078
RSK no.: 7120265
NRF no.: 3394666
Size: Ø155

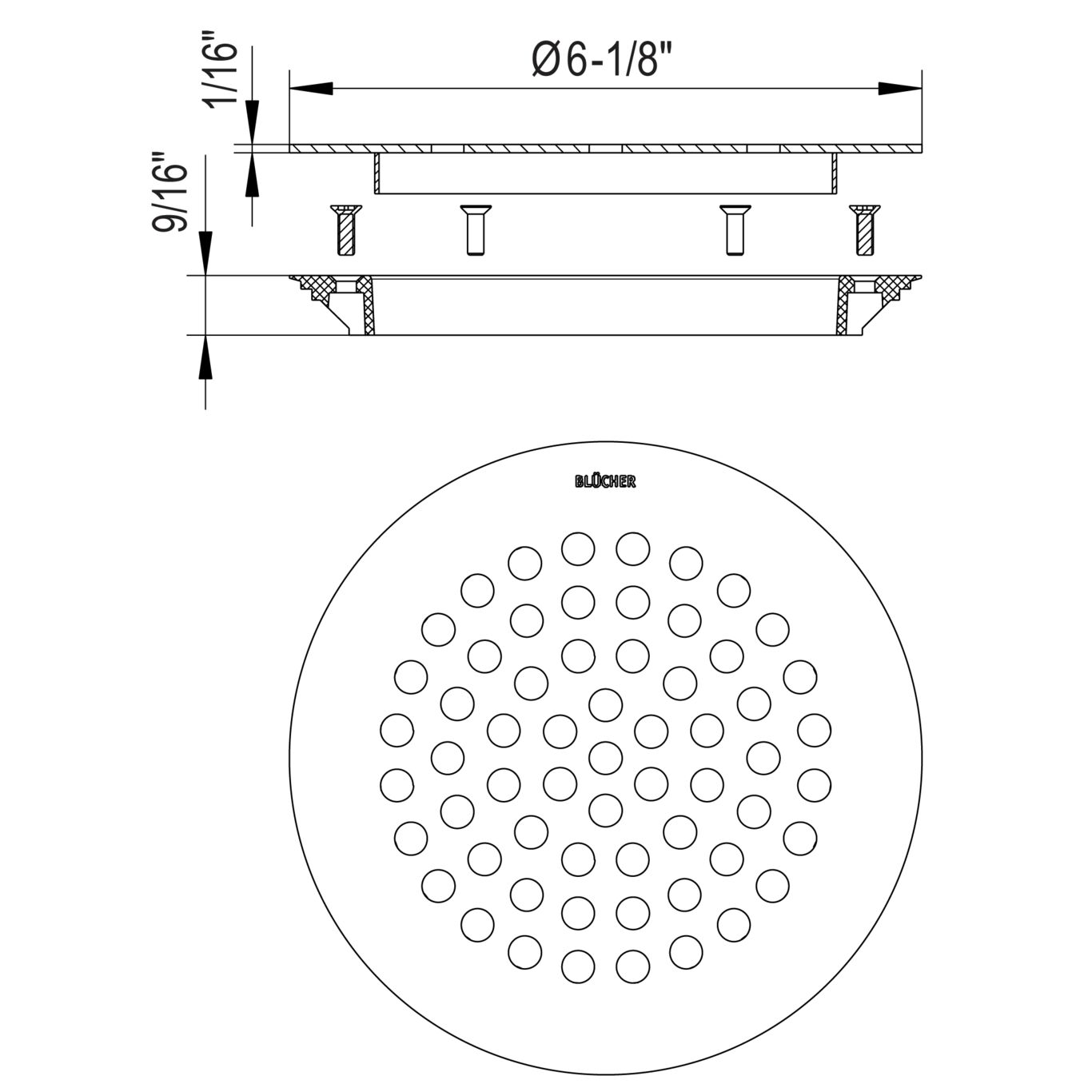

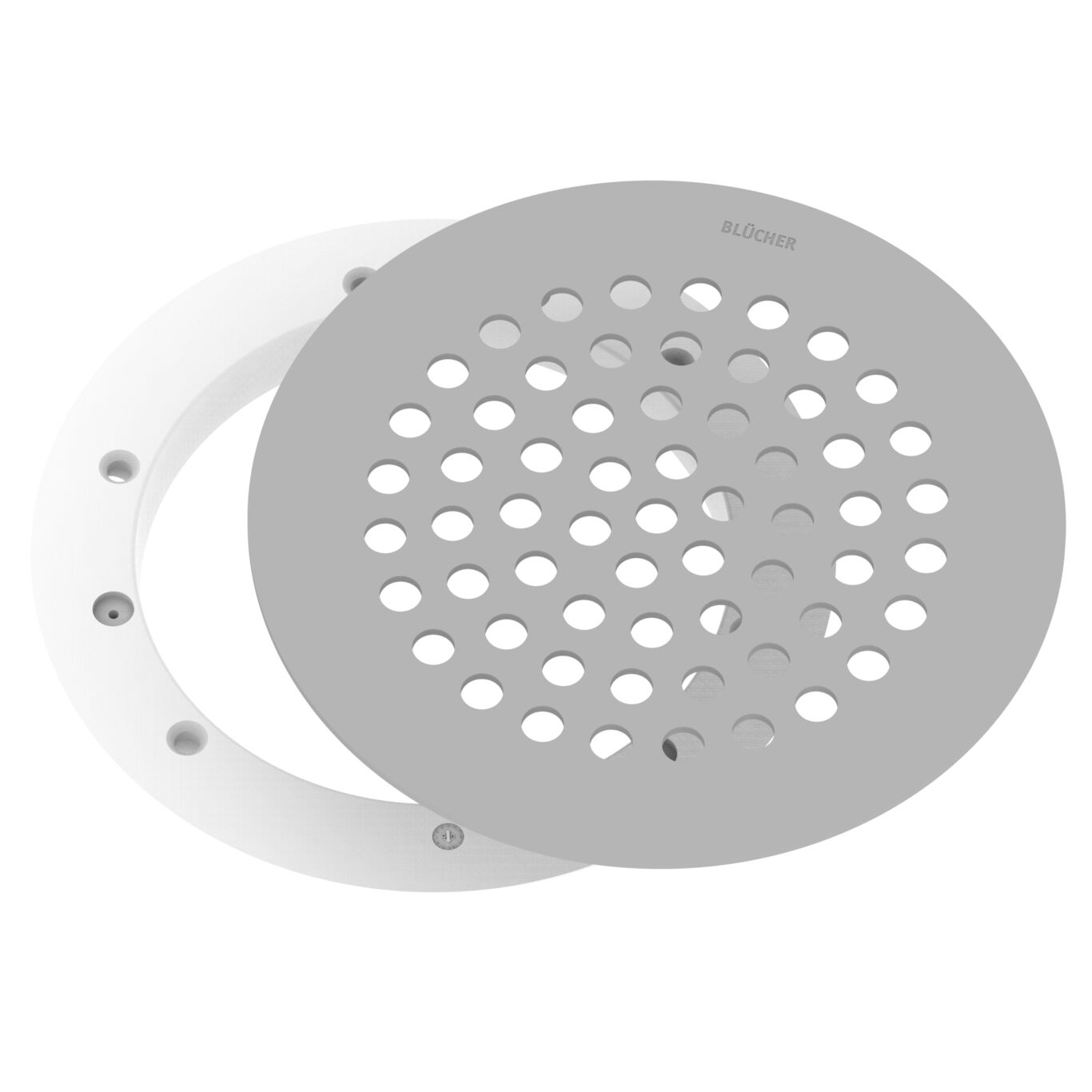

MOUNTING SET CIRCLE VIENNA
-With clamping ring
-Floor: vinyl
-Grating: Ø6-1/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 15 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 0.37 |
| Weight (lbs) | 0.82 |
