MOUNTING SET CIRCLE COPENHAGEN - (620.300.041)
×
![]()
Part Of the Series: MULTI top-Vinyl-160
Type no.: 620.300.041
EAN no.: 5705499127317
NRF no.: 3394506
LVI no.: 3303577
Size: Ø160

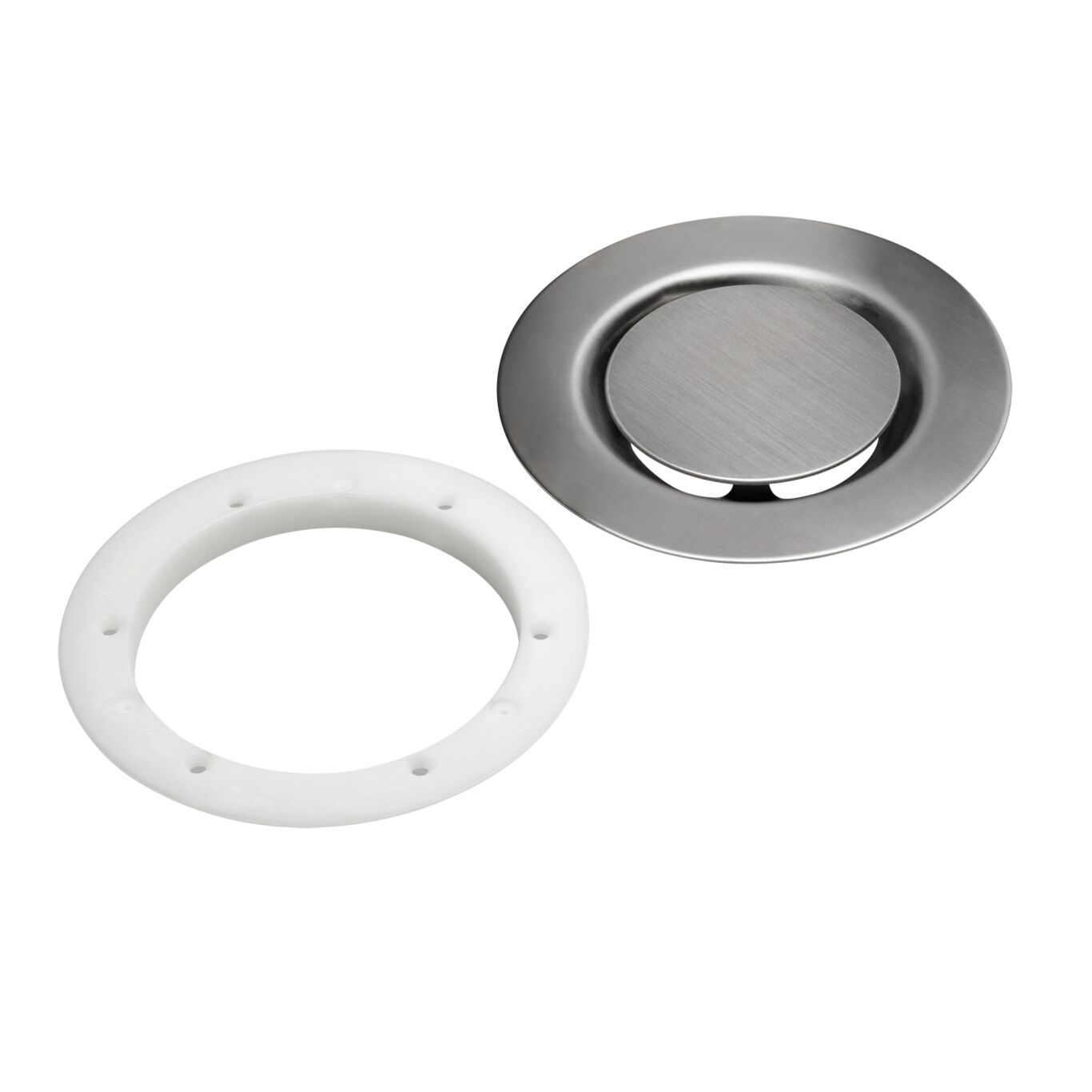

MOUNTING SET CIRCLE COPENHAGEN
-With clamping ring
-Floor: vinyl
-Grating: Ø6-1/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 15 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø160 |
| Size of Frame (Inch) | Ø6-1/4 |
| Weight (kg) | 0.49 |
| Weight (lbs) | 1.08 |
-
Approval Information
For approval information, please refer to the below approval certificates.
