REMOVABLE TWO-PART WATER TRAP - (502.050.110 MS)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.050.110 MS
EAN no.: 5705499133257
NRF no.: 3397053

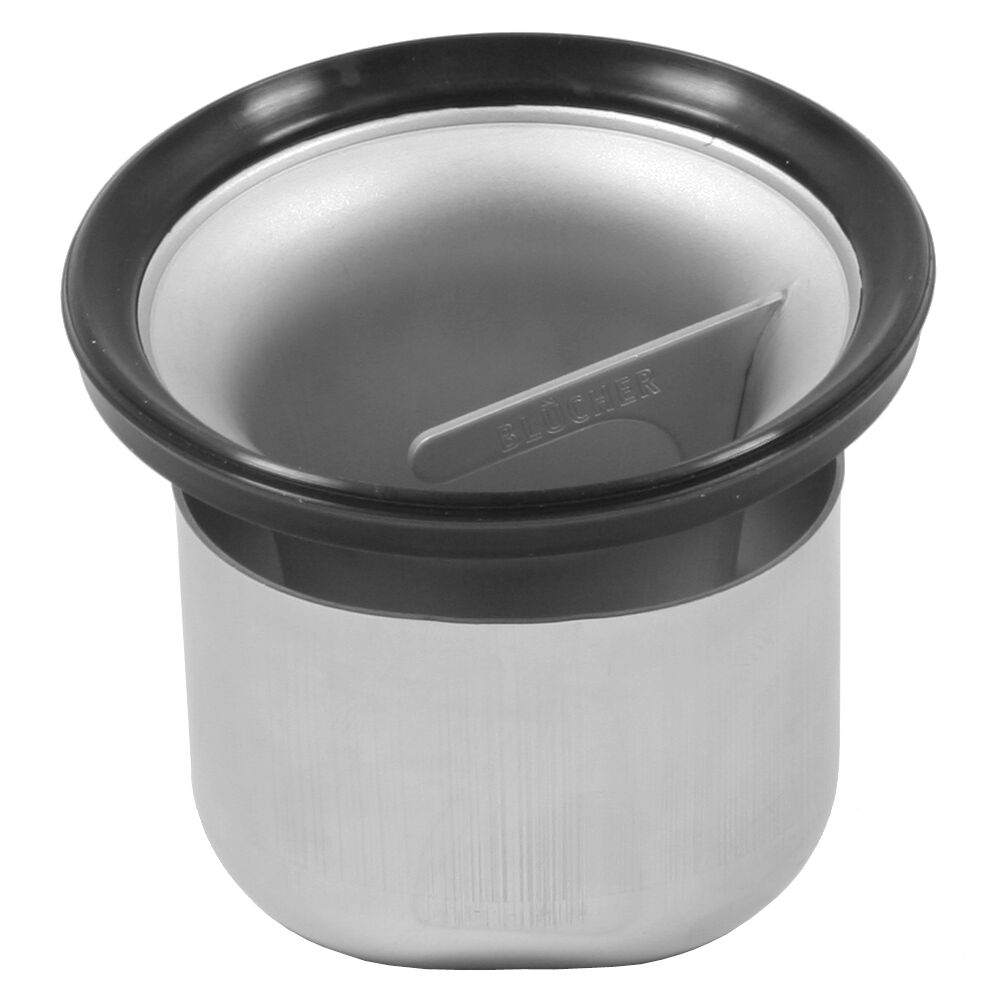

REMOVABLE TWO-PART WATER TRAP

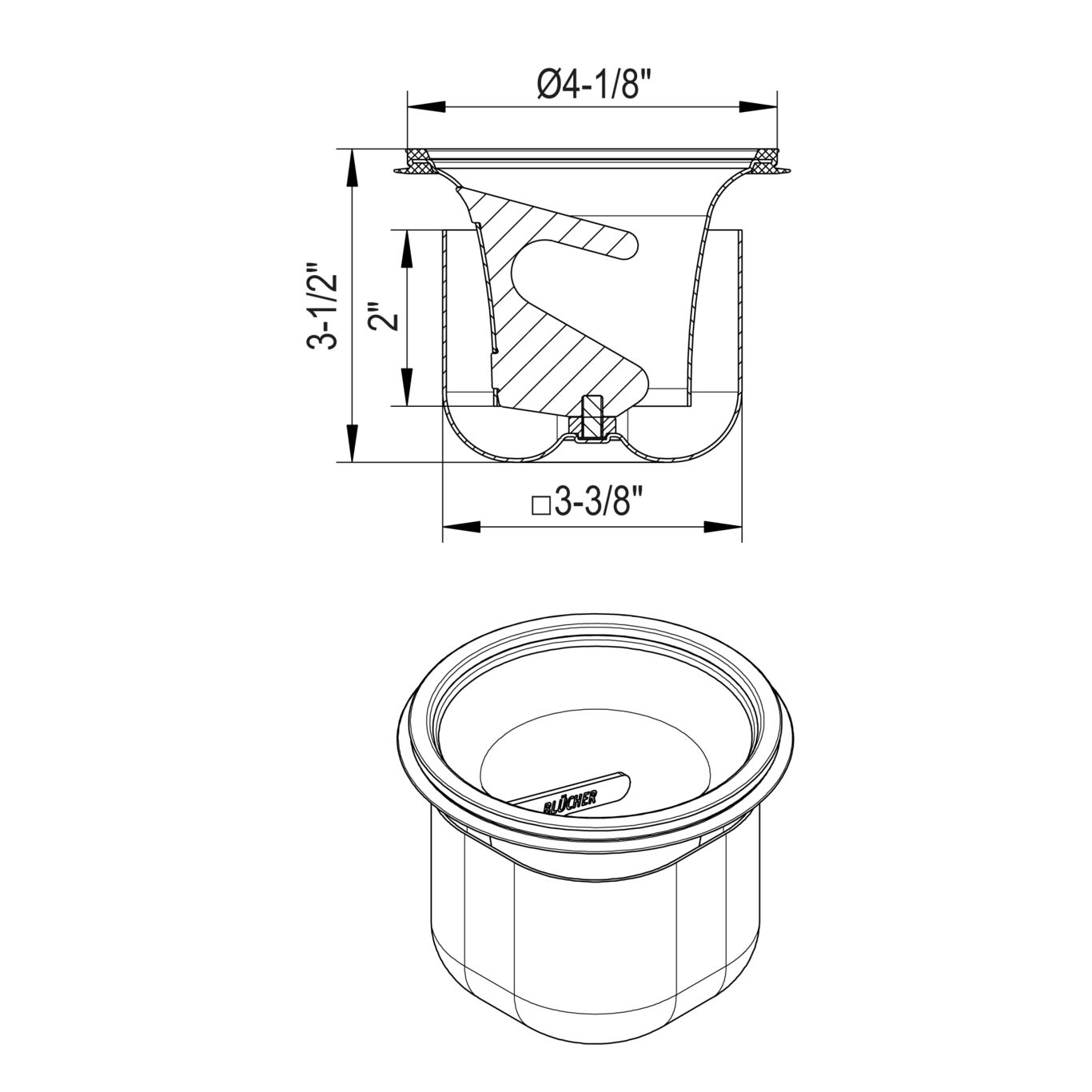

-Water seal height = 2 inch
-Stainless steel: AISI316L/EN1.4404
US order number: BWT-1T
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.7 |
| Minimum Height (mm) | 89 |
| Outlet dia. (mm) | 108 |
| Outlet Diameter (Inch) | 4 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0.36 |
| Weight (lbs) | 0.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DNV - MEDB00000MA, Rev3 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA RS - 22.10017.262 ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products Bureau Veritas - 03456-H0
