REMOVABLE TWO-PART WATER TRAP, LOW - (506.050.110)
×
![]()
Part Of the Series: Water trap-110
Type no.: 506.050.110
EAN no.: 5705499131864
VVS no.: 153417516
RSK no.: 7120237

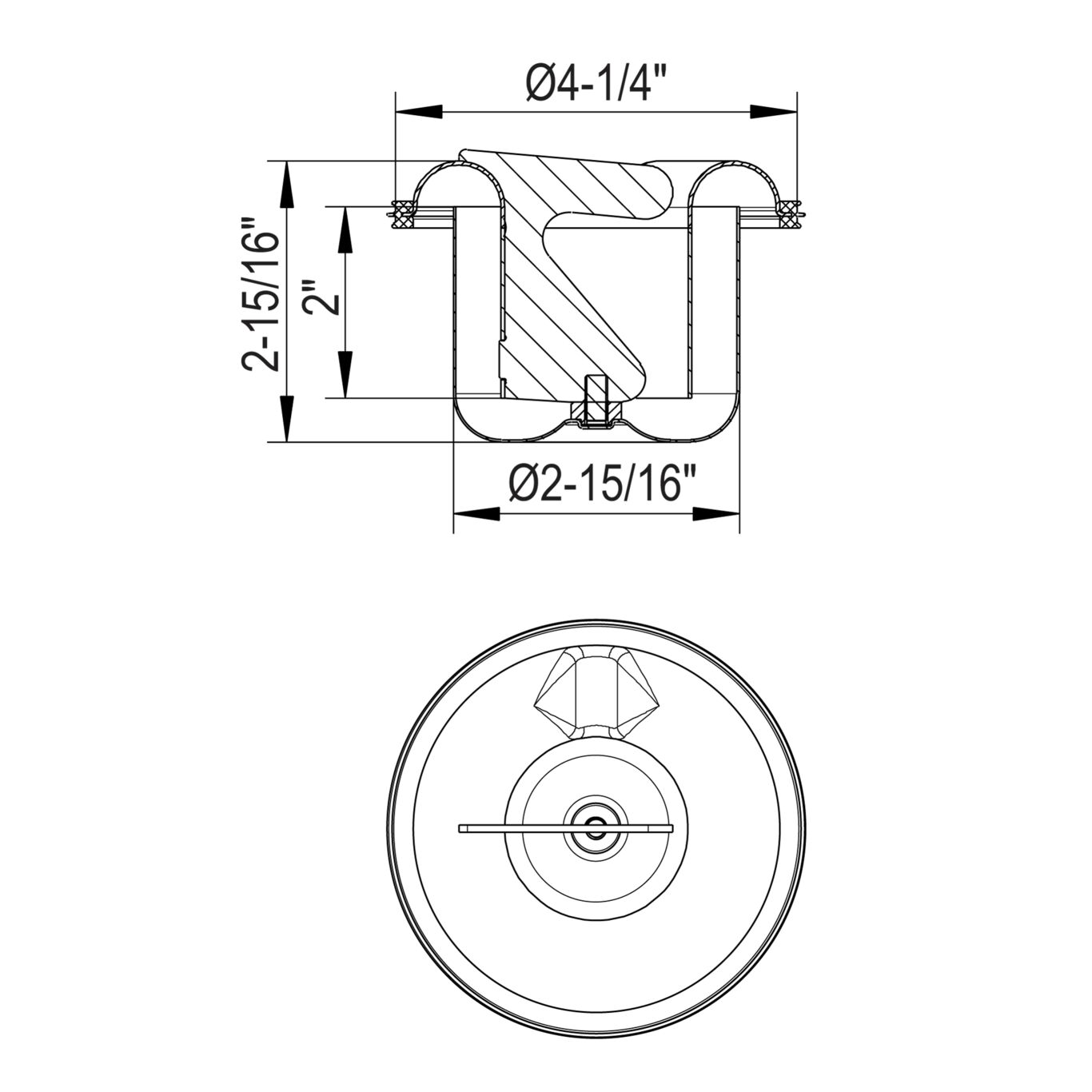

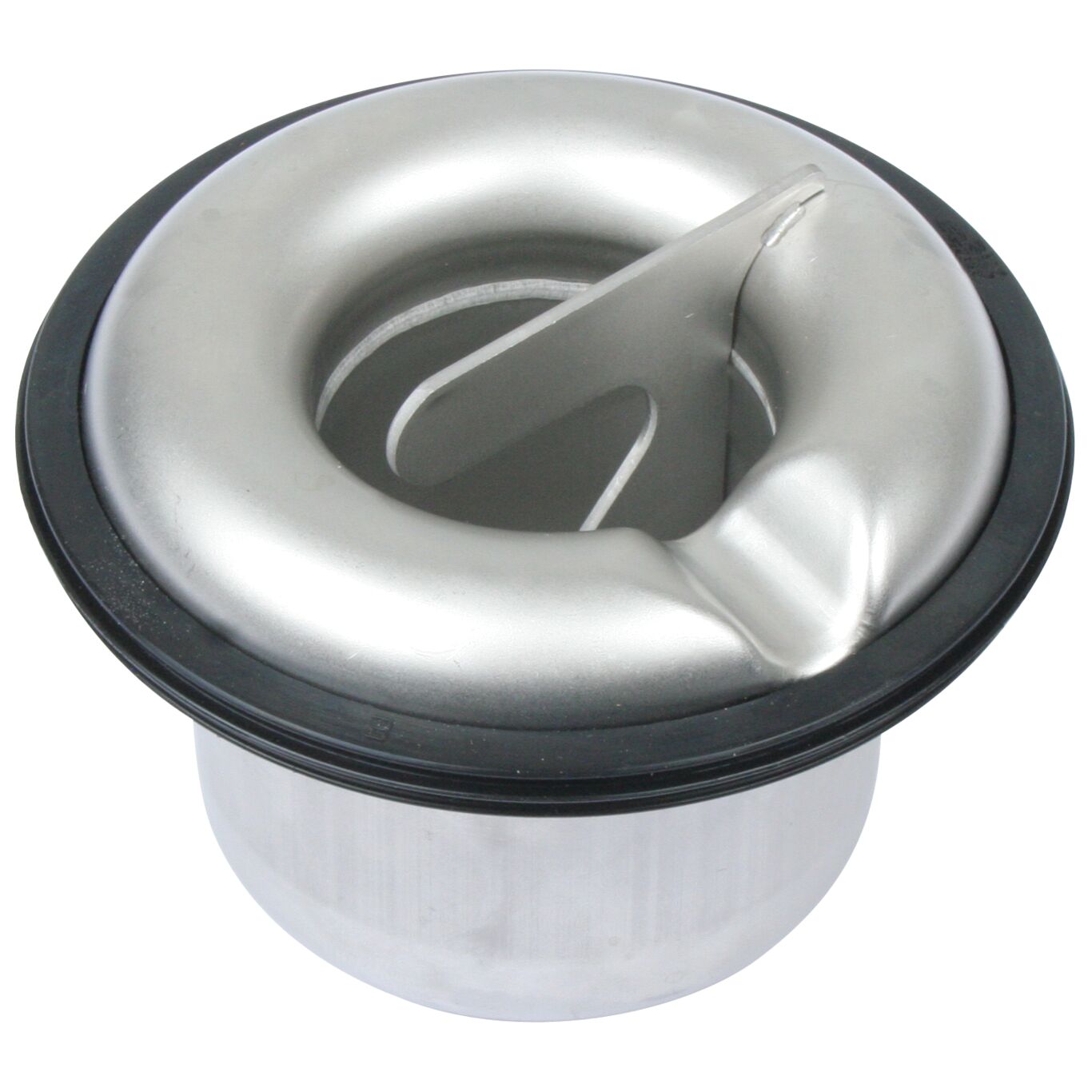

REMOVABLE TWO-PART WATER TRAP, LOW
-Water seal height = 2 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.6 |
| Minimum Height (mm) | 74 |
| Outlet dia. (mm) | 108 |
| Outlet Diameter (Inch) | 4 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0.28 |
| Weight (lbs) | 0.62 |
-
Approval Information
For approval information, please refer to the below approval certificates.
