REMOVABLE WATER TRAP FIRE PROOF - (502.052.110 CFS)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.052.110 CFS
EAN no.: 5705499131642

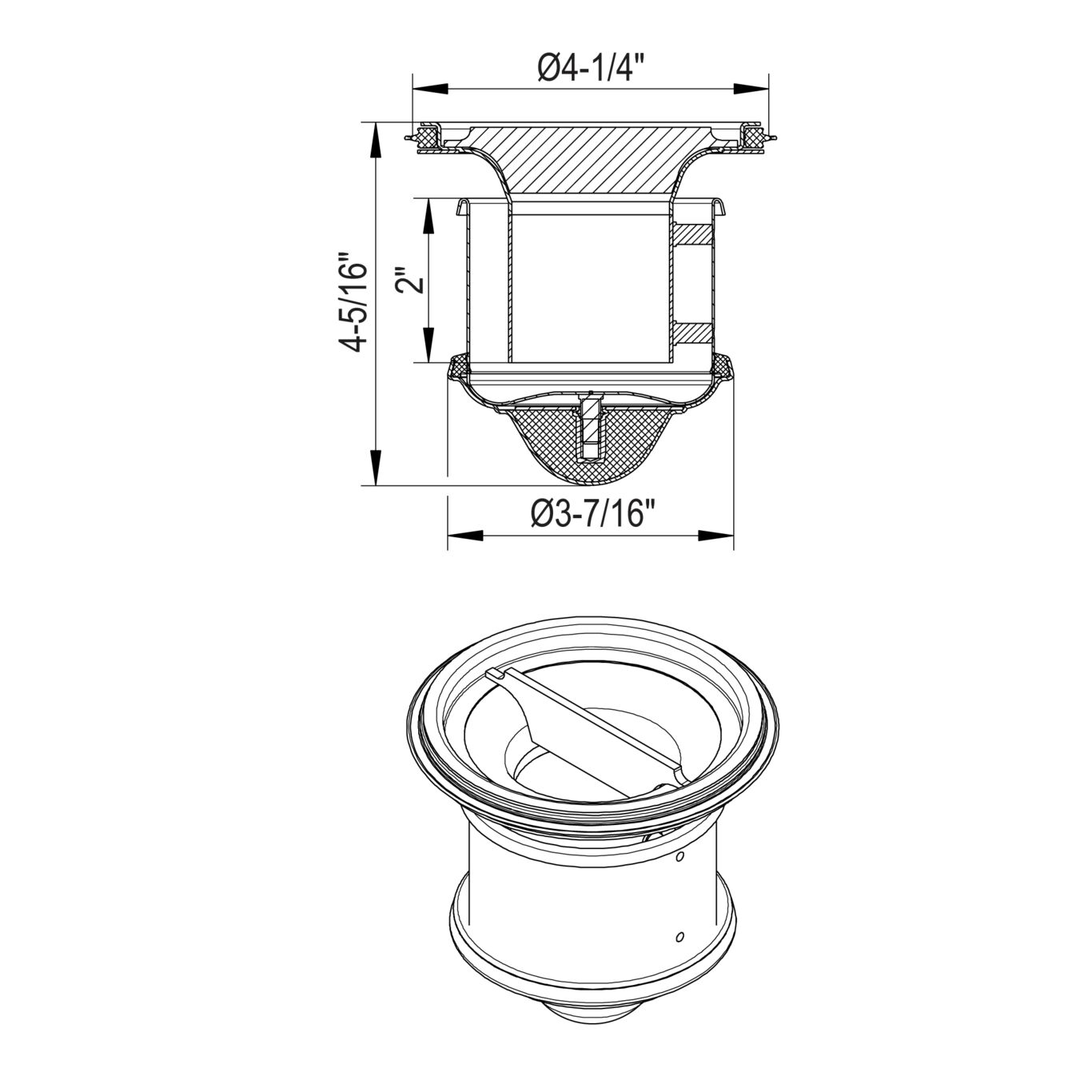

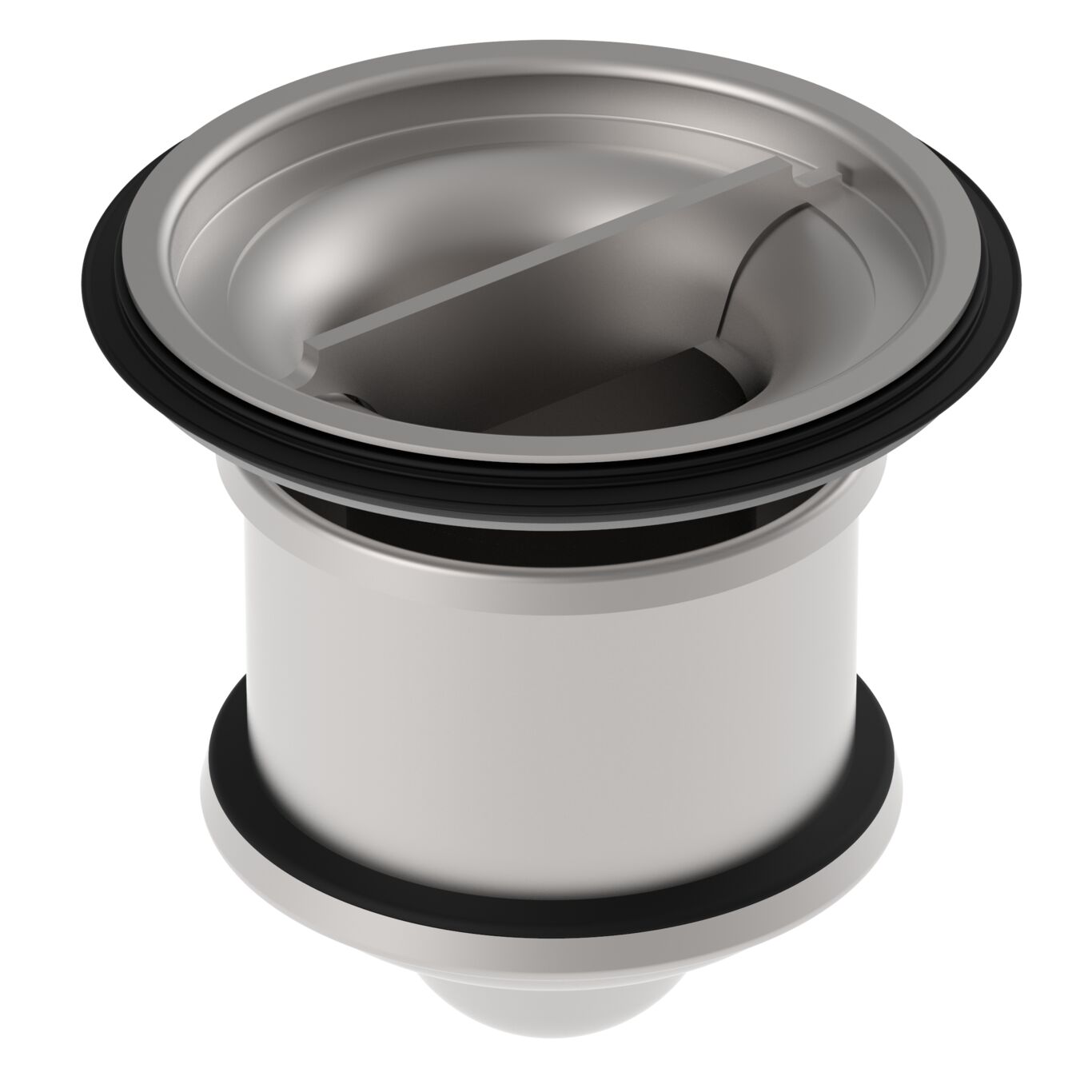

REMOVABLE WATER TRAP FIRE PROOF
- With CR sealing and water seal = 52mm
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Marine |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.2 |
| Minimum Height (mm) | 110 |
| Outlet dia. (mm) | 108 |
| Outlet Diameter (Inch) | 4 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,45 |
| Weight (lbs) | 0.99 |
-
Approval Information
For approval information, please refer to the below approval certificates.
