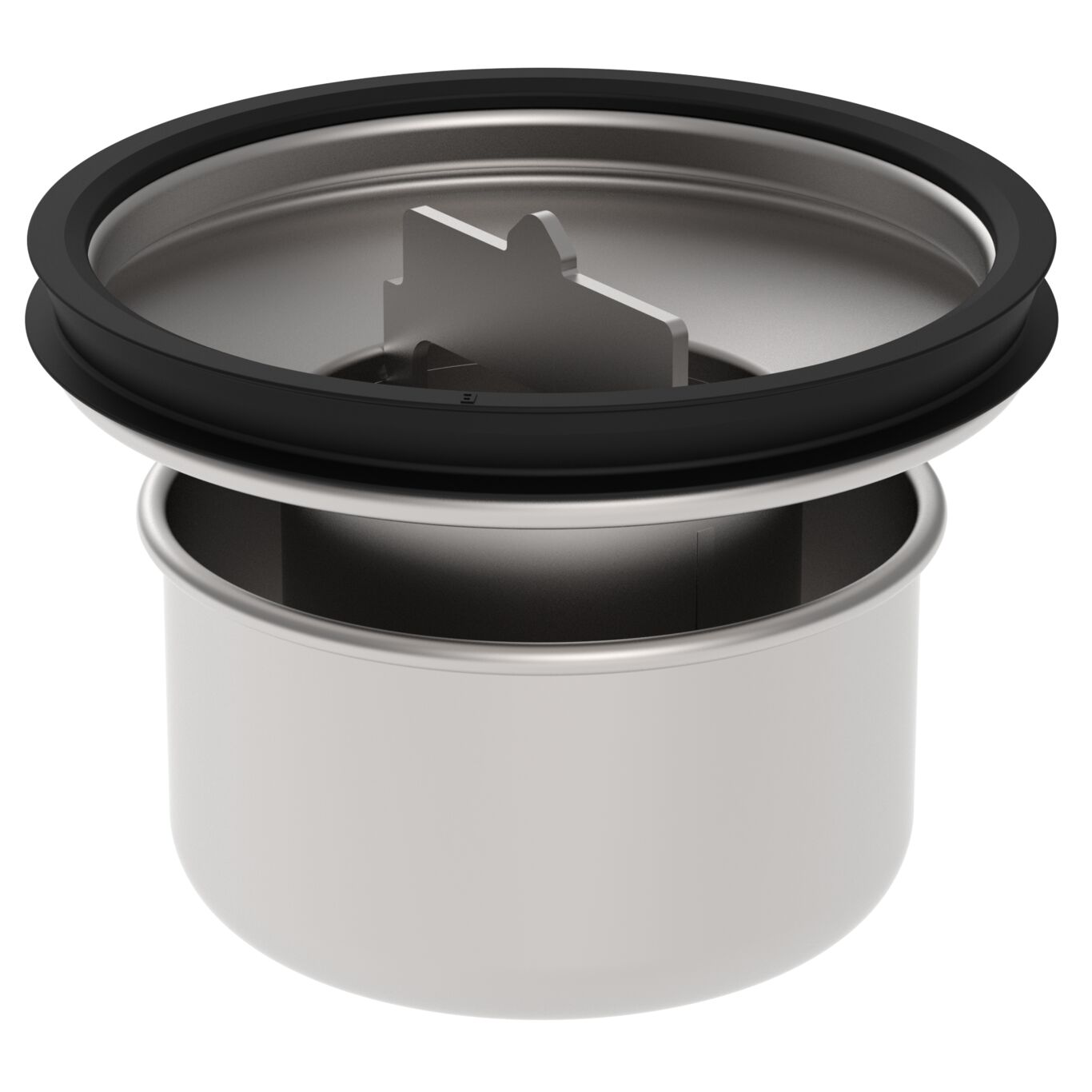

REMOVABLE TWO-PART WATER TRAP - (562.102.000 S)

Part Of the Series: Water trap-160

Type no.: 562.102.000 S

EAN no.: 5705499137903

VVS no.: 153019550

RSK no.: 7124002

NRF no.: 3397054

LVI no.: 3305612


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 316L
Material (EN) EN 1.4404
Max Flow (l/s) 6.0
Minimum Flow (l/s) 3.4
Minimum Height (mm) 113
Outlet dia. (mm) 157
Outlet Diameter (Inch) 6
Water Seal Height (mm) 50
Weight (kg) 0.8
Weight (lbs) 1.76
