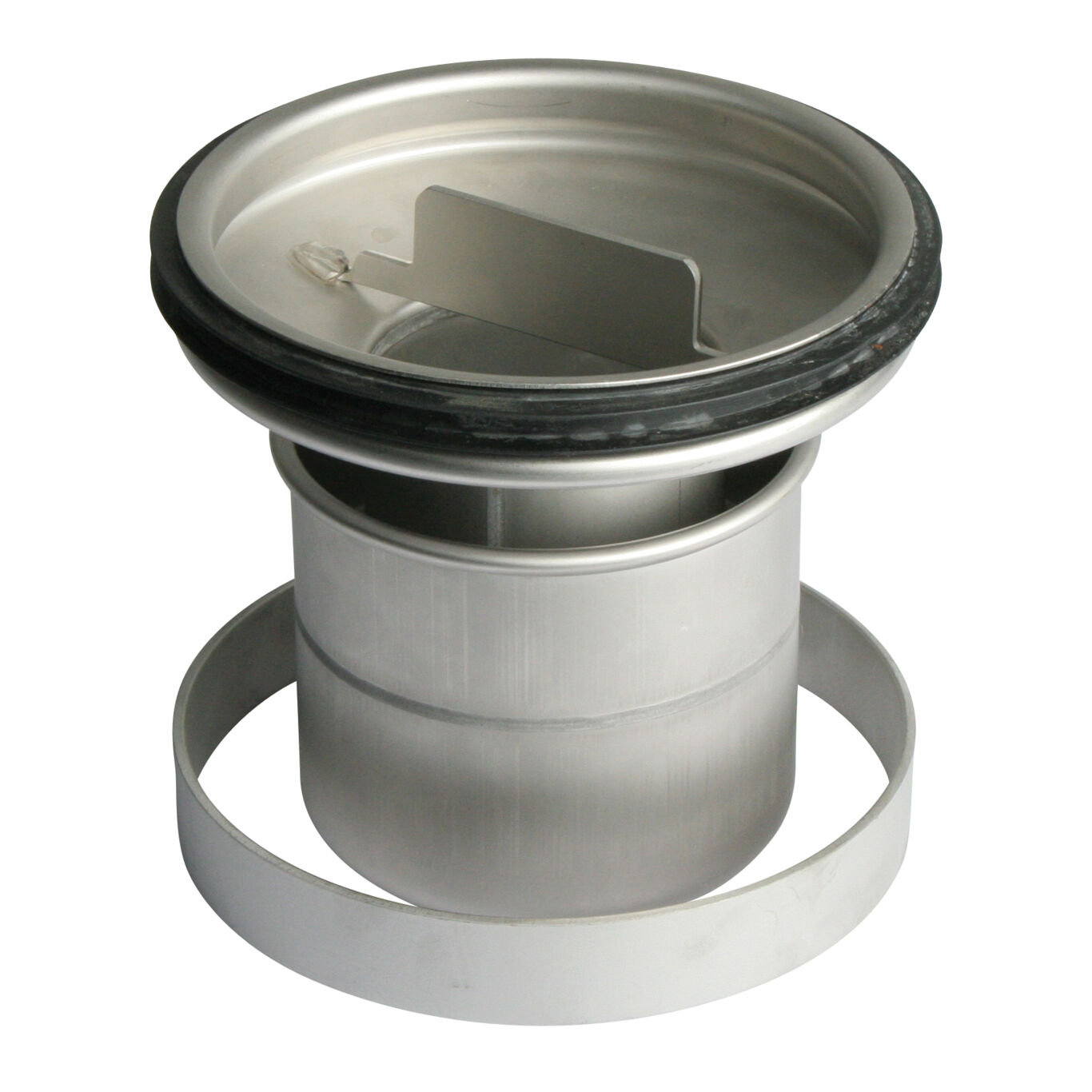

REMOVABLE WATER TRAP - (562.082.000 S)

Part Of the Series: Water trap-160

Type no.: 562.082.000 S

EAN no.: 5705499128475

VVS no.: 153019518


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 143
Outlet dia. (mm) 153
Outlet Diameter (Inch) 6
Water Seal Height (mm) 97
Weight (kg) 1.31
Weight (lbs) 2.89
