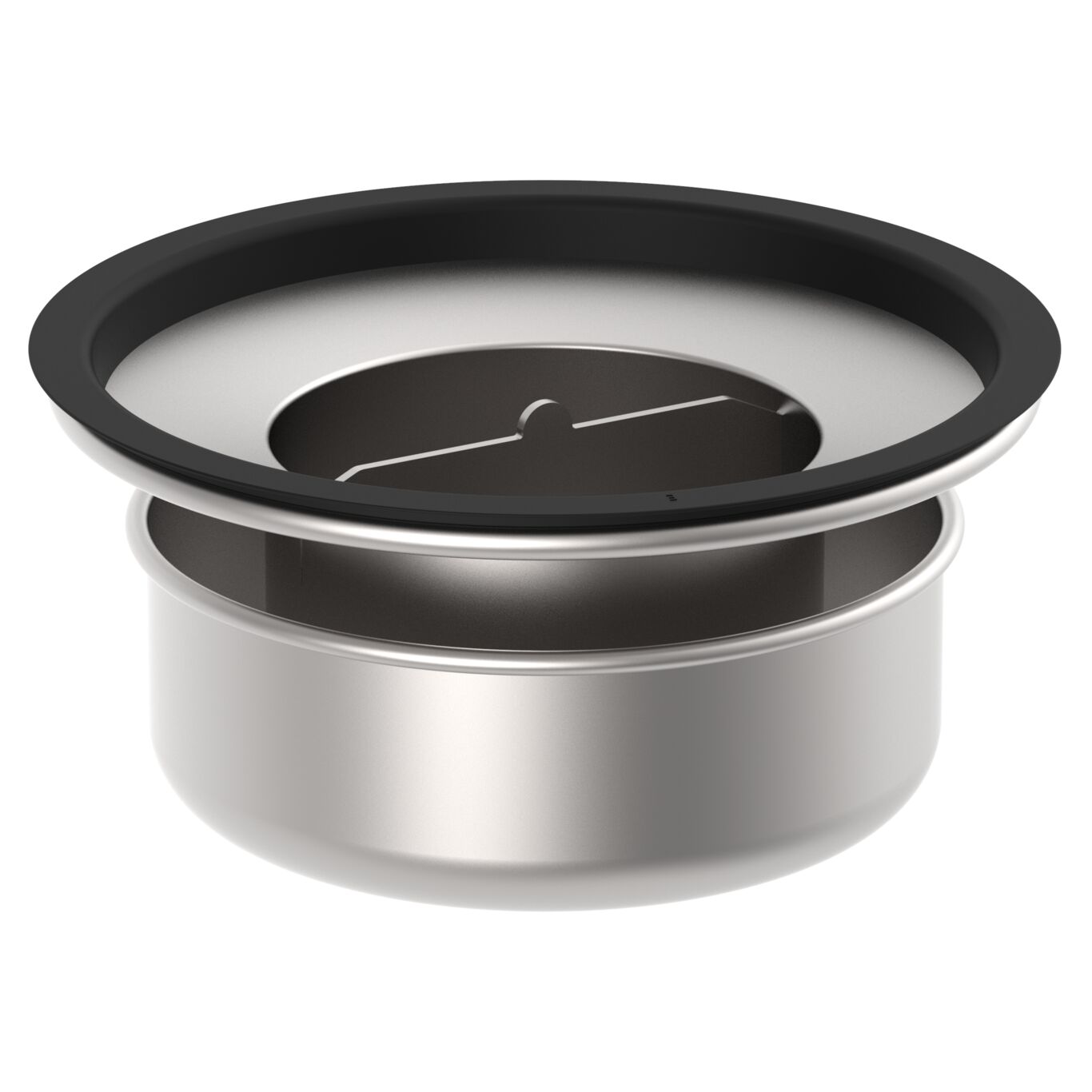

REMOVABLE TWO-PART WATER TRAP - (562.103.000 S)

Part Of the Series: Water trap-250

Type no.: 562.103.000 S

EAN no.: 5705499138733

VVS no.: 153019590

RSK no.: 7129550

NRF no.: 3396306

LVI no.: 3305830

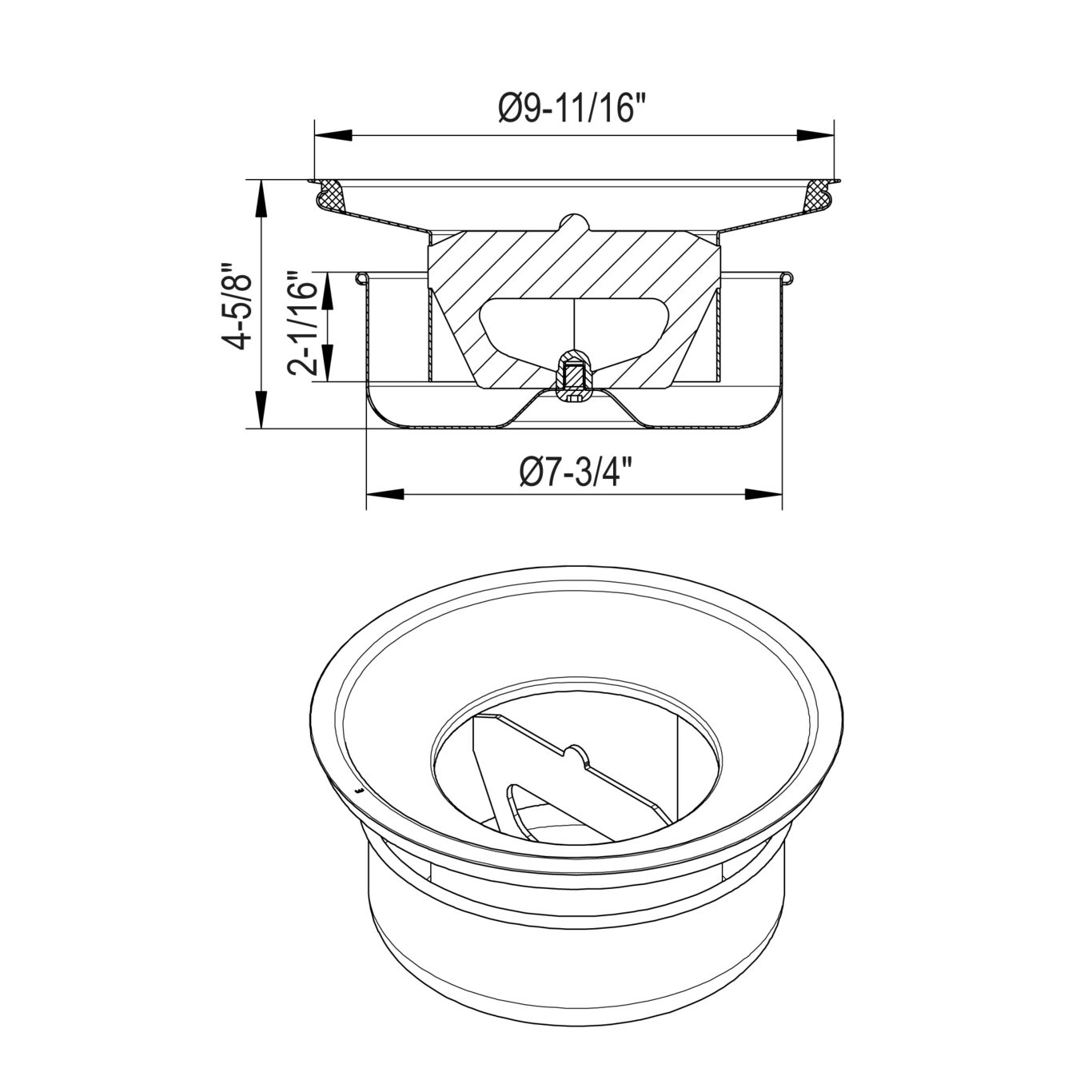

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 316L
Material (EN) EN 1.4404
Max Flow (l/s) 7.8
Minimum Flow (l/s) 5.6
Minimum Height (mm) 118
Outlet dia. (mm) 246
Outlet Diameter (Inch) 10
Water Seal Height (mm) 52
Weight (kg) 2.2
Weight (lbs) 4.85
