REMOVABLE WATER TRAP - (562.003.000 S)
×
![]()
Part Of the Series: Water trap-250
Type no.: 562.003.000 S
EAN no.: 5705499108033
VVS no.: 153019530
RSK no.: 7121862
LVI no.: 3304016

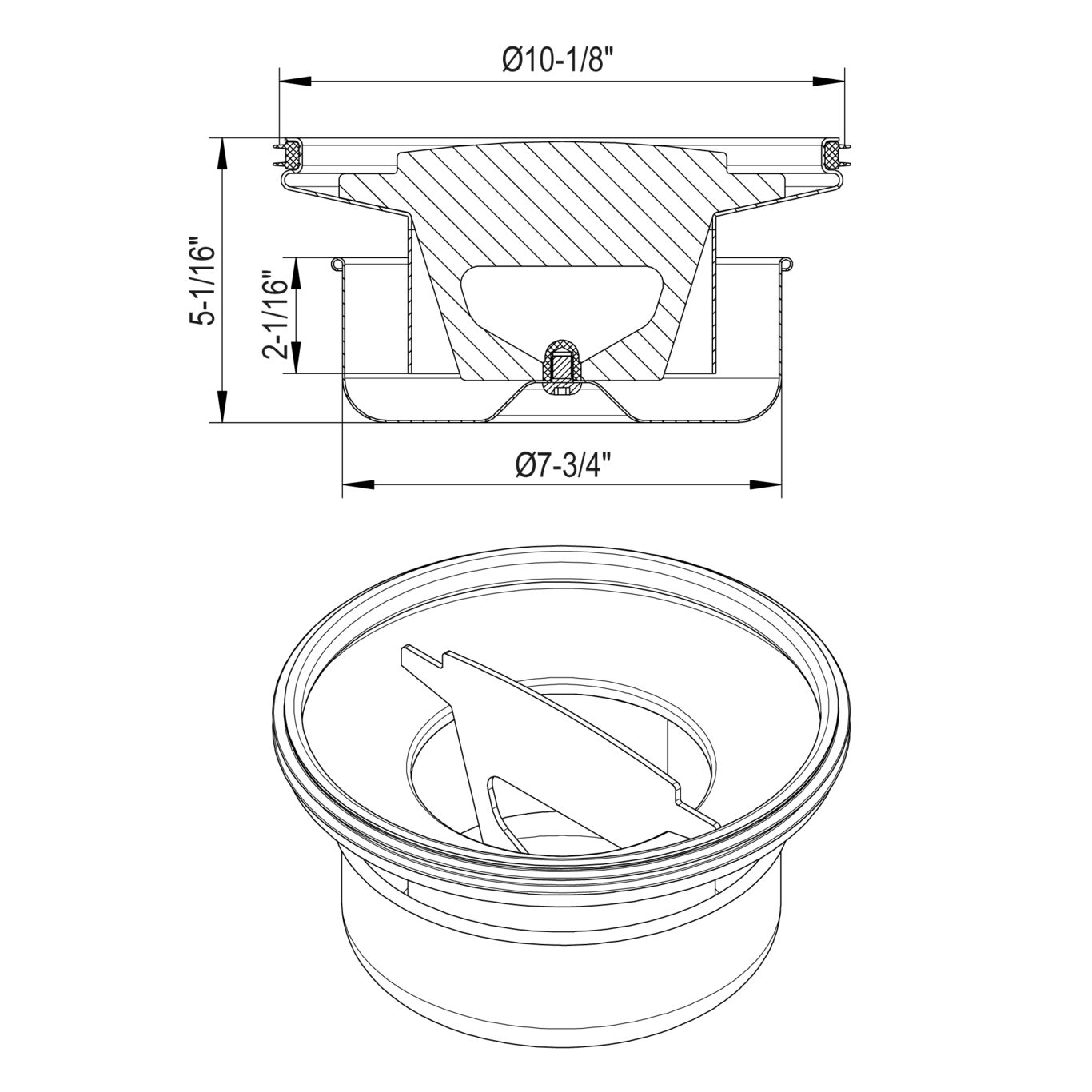

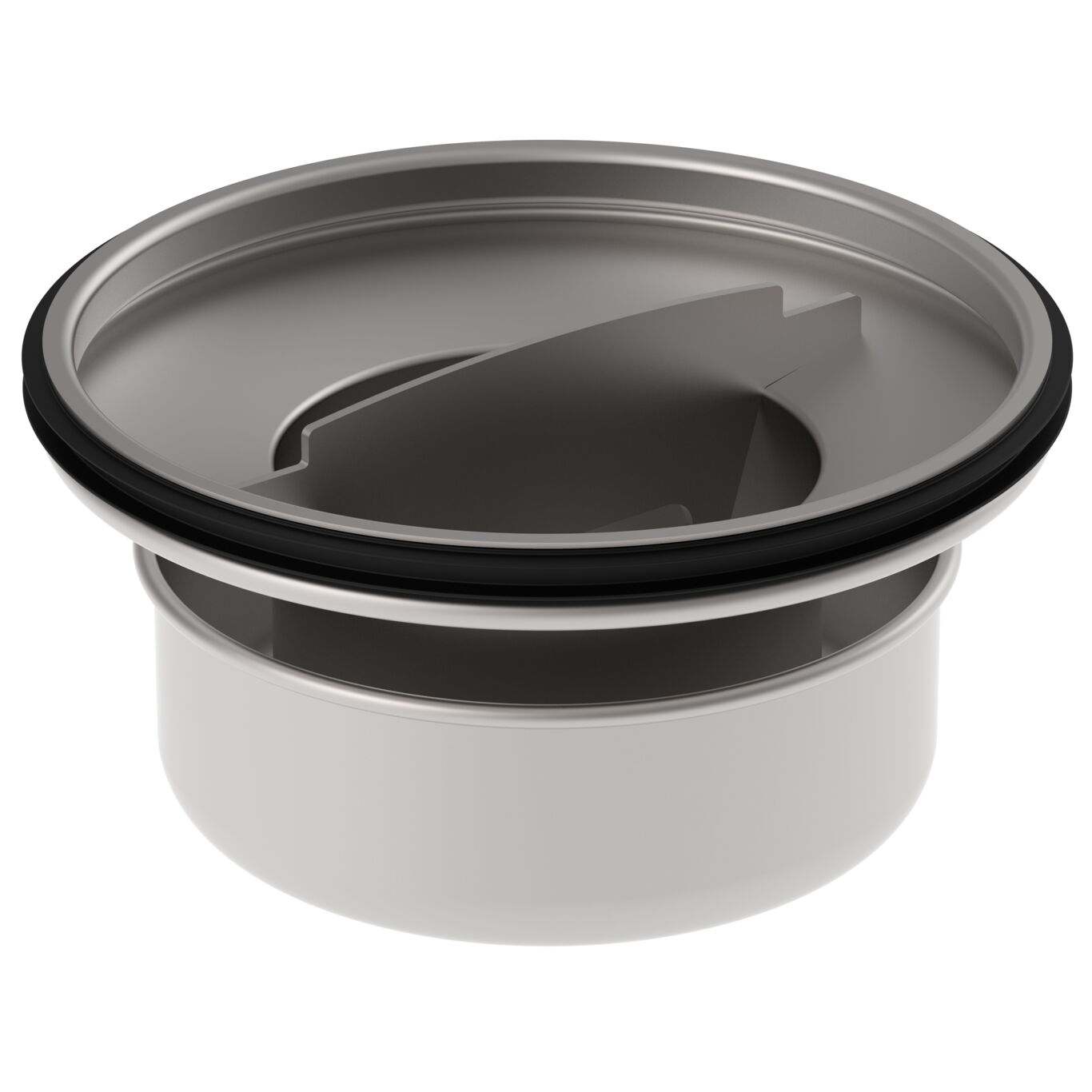

REMOVABLE WATER TRAP
-Water seal height = 2 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 7.8 |
| Minimum Height (mm) | 128 |
| Outlet dia. (mm) | 257 |
| Outlet Diameter (Inch) | 10 |
| Water Seal Height (mm) | 52 |
| Weight (kg) | 2 |
| Weight (lbs) | 4.41 |
-
Approval Information
For approval information, please refer to the below approval certificates.
