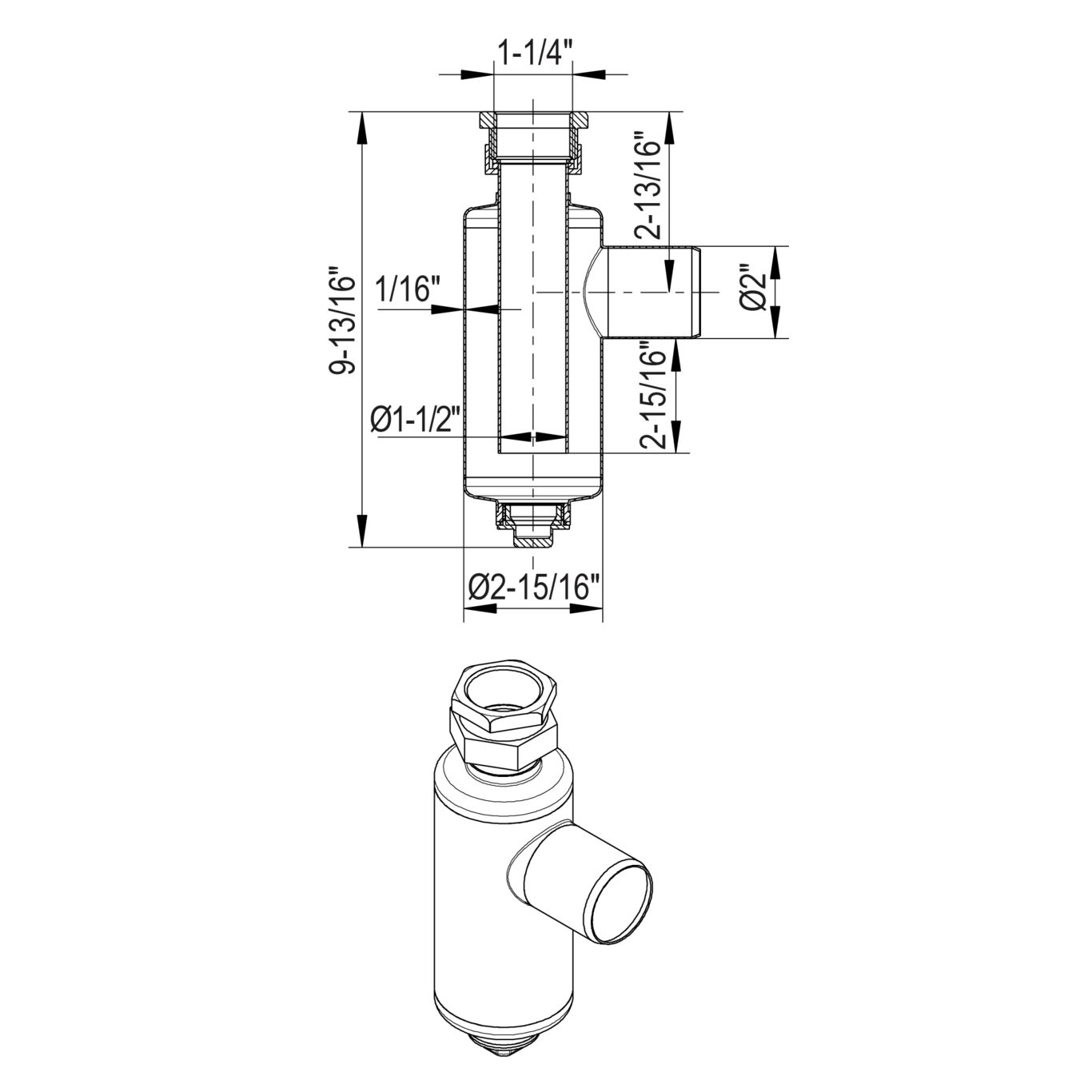

BOTTLE WATER TRAP, Ø1¼"/50MM - (505.032.050 S)
×
![]()
Part Of the Series: Water trap-hand wash
Type no.: 505.032.050 S
EAN no.: 5705499101447
RSK no.: 1550258
NRF no.: 3395038
BOTTLE WATER TRAP, Ø1¼"/50MM
-Water seal height = 3 inch
-Stainless steel: AISI316L/EN1.4404
US order number: BT-1-1/4
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 250 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Water Seal Height (mm) | 75 |
| Weight (kg) | 0.95 |
| Weight (lbs) | 2.09 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Bureau Veritas - 03456-H0 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA ABS - LD1716353-PDA
