P-TRAP 87.5° - (525.090.050 S)
×
![]()
Part Of the Series: Water trap-p
Type no.: 525.090.050 S
EAN no.: 5705499101461
VVS no.: 160381350
RSK no.: 1550345
NRF no.: 3395041
LVI no.: 3304019

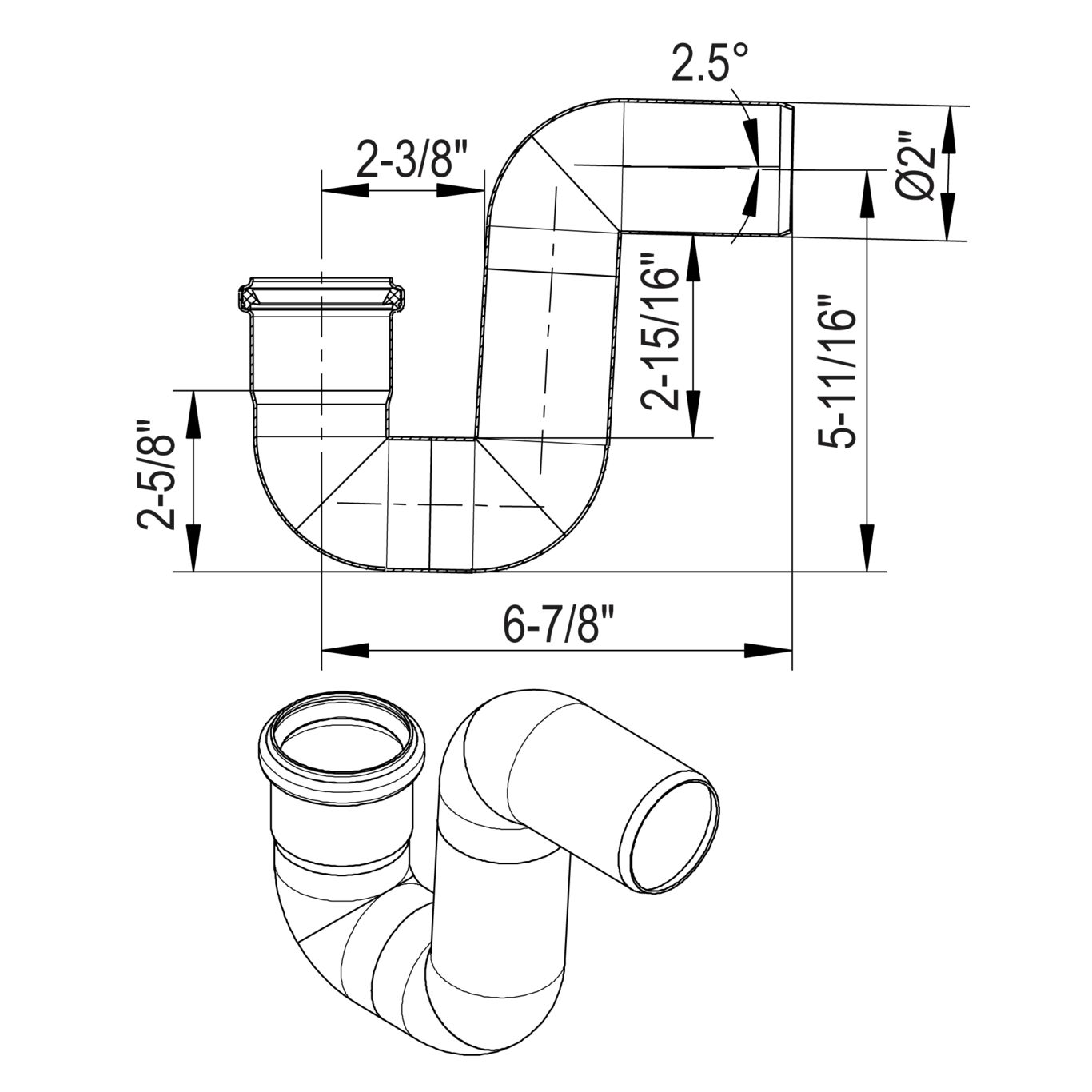

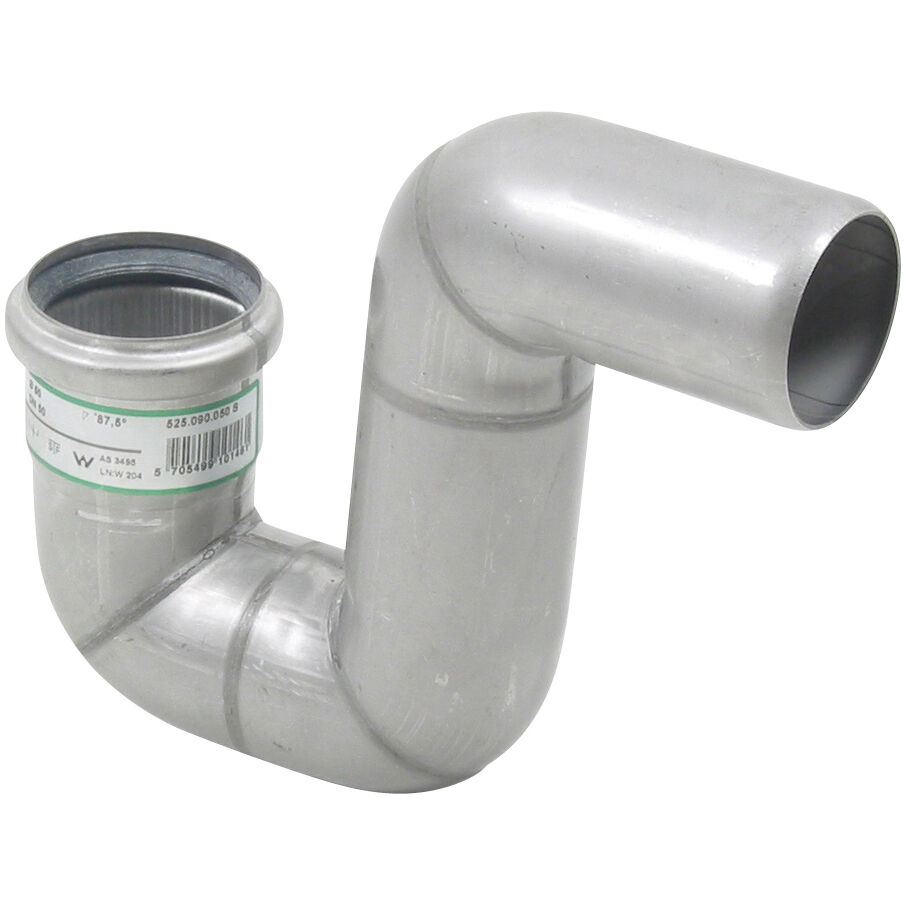

P-TRAP 87.5°
-Diameter: Ø2 inch
-Water seal height = 3 inch
-Stainless steel: AISI316L/EN1.4404
US order number: PT-2
| Product Specification | |
|---|---|
| All Renovation 82 Products | RS82 |
| Angle (°) | 87.5 |
| Field of Application | Domestic |
| Length (mm) | 67 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.7 |
| Minimum Flow (l/s) | 0.7 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Water Seal Height (mm) | 74 |
| Weight (kg) | 0.45 |
| Weight (lbs) | 0.99 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DK - VA 2.41/19631-22
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
